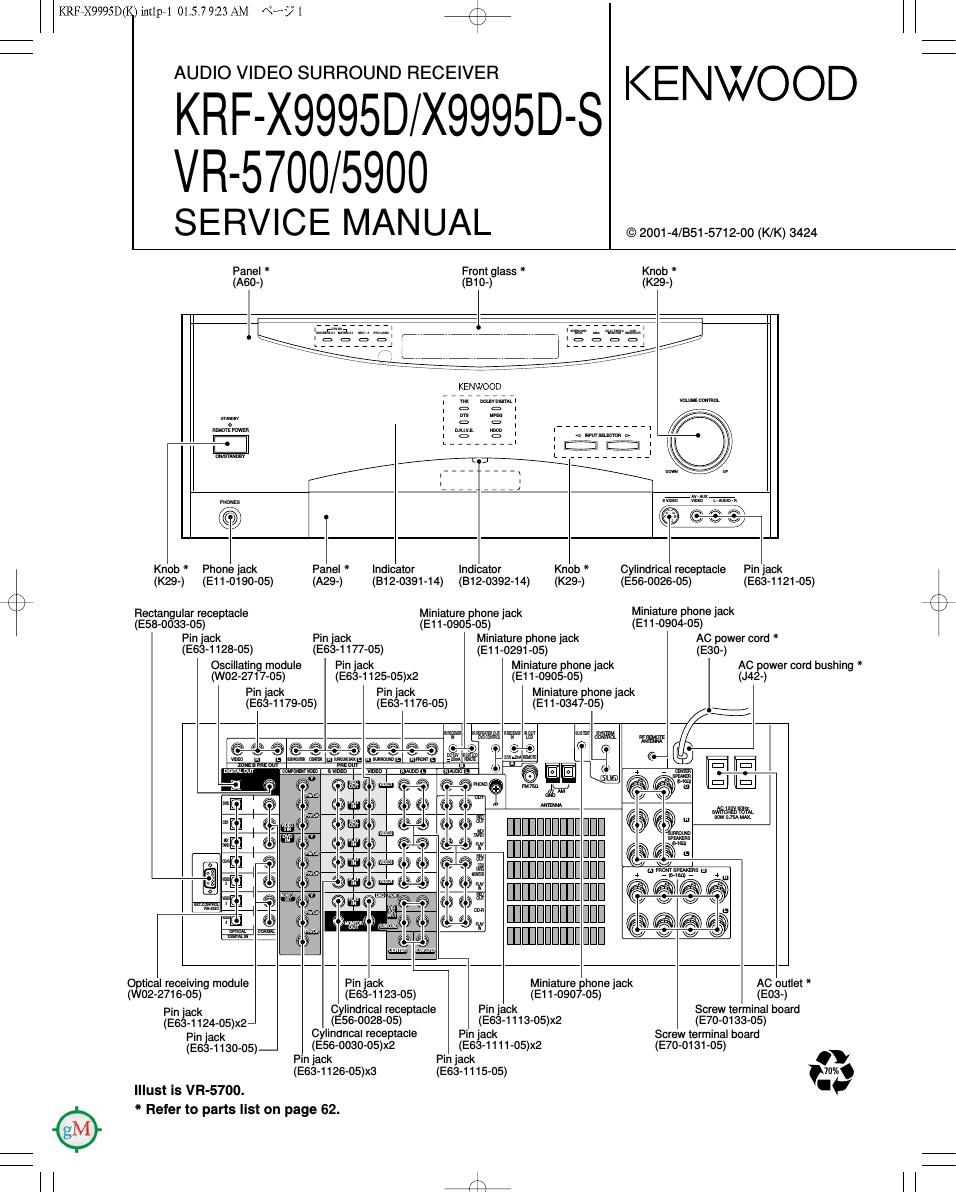

KRF7X9995D(K)iut1p71 01.5.7 9:23 AM N? 2
KRF-X9995D/X9995D-S/VR-5700/5900
CONTENTS / ACCESSORIES
Contents
CONTENTS / ACCESSORIES .................................. 2
DBASSEMBLYFORREPNR .m3
BLOCKDMGRAM ................. m5
PC BOARD .............................................................. 17
SCHEMATIC DIAGRAM 30
EXPLODED VIEW ............ ....60
...62
ADJUSTMENT ......... :.14 PARTS LIST ....... .
WIRING DIAGRAM.. ..... 16 SPECIFICATIONS ...88
Accessories
r
Remote control unit Batteries AM Loop Antenna FM Antenna
(A70-1453-05): FIC-FI091 3
E
Battery cover(A09-1166-08)
(T90-0852-05) (T90-0855-05)
Remote control unit (PowerTouch)
(A70-1456-05): RC-R1111
(A70-1457-05): FiC-Fi1012
(A70-1458-05): RC-R1o13
$1
2%
AC plug adaptor * .............. (1)
Antenna ass'y
(T90-0850-05)
U.S.A. only
Use to adapt the plug on
the power cord to the shape
of the wall outlet.
(Accessory only for regions
where use is necessary.)
Battery cover(A09-1177-08)
Pen(W01-0976-08)
* Refer to parts list.
[] DOLBY Dfl|nou3v sunnounln
DIGITAL PRO-LOGIC
Manufactured under license from Dolby Laboratories.
Dolby, Pro Logic , AC-S , and the doubleAD symbol are
trademarks of Dolby Laboratories Confidential Unpub-
lished Works. 1992-1997 Dolby Laboratories. All rights
reserved.
D l G I T A LK
SURROUND
Manufactured under license from Digital Theater Sys
tems, Inc. US Pat, No. 5,451,942 and other world-
wide patents issues and pending. DTS and DTS
Digital Surround are trademarks of Digital Theater
Systems, Inc, ' 1996 Digital Theater Systems, Inc.
All rights reserved.
I-DCD
-, HDCDu, High Definition Compatible Digitalul
and Pacific MicrosonicsW' are either registered trade
marks or trademarks of Pacific Microsonics, Inc. in
the United States and/or other countries HDCD sysA
tern manufactured under license from Pacific MicroA
sonics, Inc, This product is covered by one or more
of the following: W the USA: 5,479,166, 5,638,074,
5,640,161, 5,808,574, 5,838,274, 5,854,600,
5,864,311, 5,872,531, and in Australia: 669114. Other
patents pending.
KRF.X9995D(K) mnp.1 01.5.7 9:23 AM «us/*3 4*);
K
KRF-X9995D/X9995D-S/VR-5700/5900
DISASSEMBLY FOR REPAIR
How to Remove the Front Panel and KRF'X99950NR'5900
the Motor Assy
1. How to Remove the Front Panel
1. Remove the screws (@xs) on top of the panel.
2. Remove the screws (@XQ) located at the the bot-
tom of the panel.
3. Disconnect the cable ((3) and connectors (09(5))
on the X13 A/6.
. Disconnect the connector ((6)) on the X07 A/5.
. Cut the tie band (®X7) as shown in the figure.
. Remove the screw (®X1) on the X25 F/11.
. Disconnect the connector (®) on the X25
G/11.(Except K/P type)
. Remove the hooks (@X2) on the sub panel.
9. Remove the front panel in the direction of arrow.
,,/AC CONNECTOR
(EXCEPT K/F)
\lmulb
(I)
2. How to Remove the Motor Assy
1. The motor assy can be separated by removing
screws (@X4).
Disassembling the Rear Panel and
How to Replace the Power Transistor
1. Disconnect the CN10 on the X07 0/5.
2. Remove all of screws (®X61) and digital caps
(@Xs) on the rear panel.
(The number of screws and caps are vary accord-
ing to the models).
3. Disconnect the cable CN16 ((33) on the X13 N6.
4. Disconnect the flexible cables CN101(®) on the
X25 C/11, CN102 ((5)) and * CN103 (©)on the X25
B/11.
* (K/P type only).
5. Remove the rear panel in the direction of arrow.
6. Remove the screw (CD), then remove the X25 8/11.
7. To remove the tuner unit, disconnect the CN1 (®)
and remove a screw (@).
8. Remove the screws (0X9) on the frames (A/B/C).
push rivet (®) and PC support (@x2)on the X11
A/2.
