KRF7X9995D(K)iut1p71 01.5.7 9:23 AM N? 2

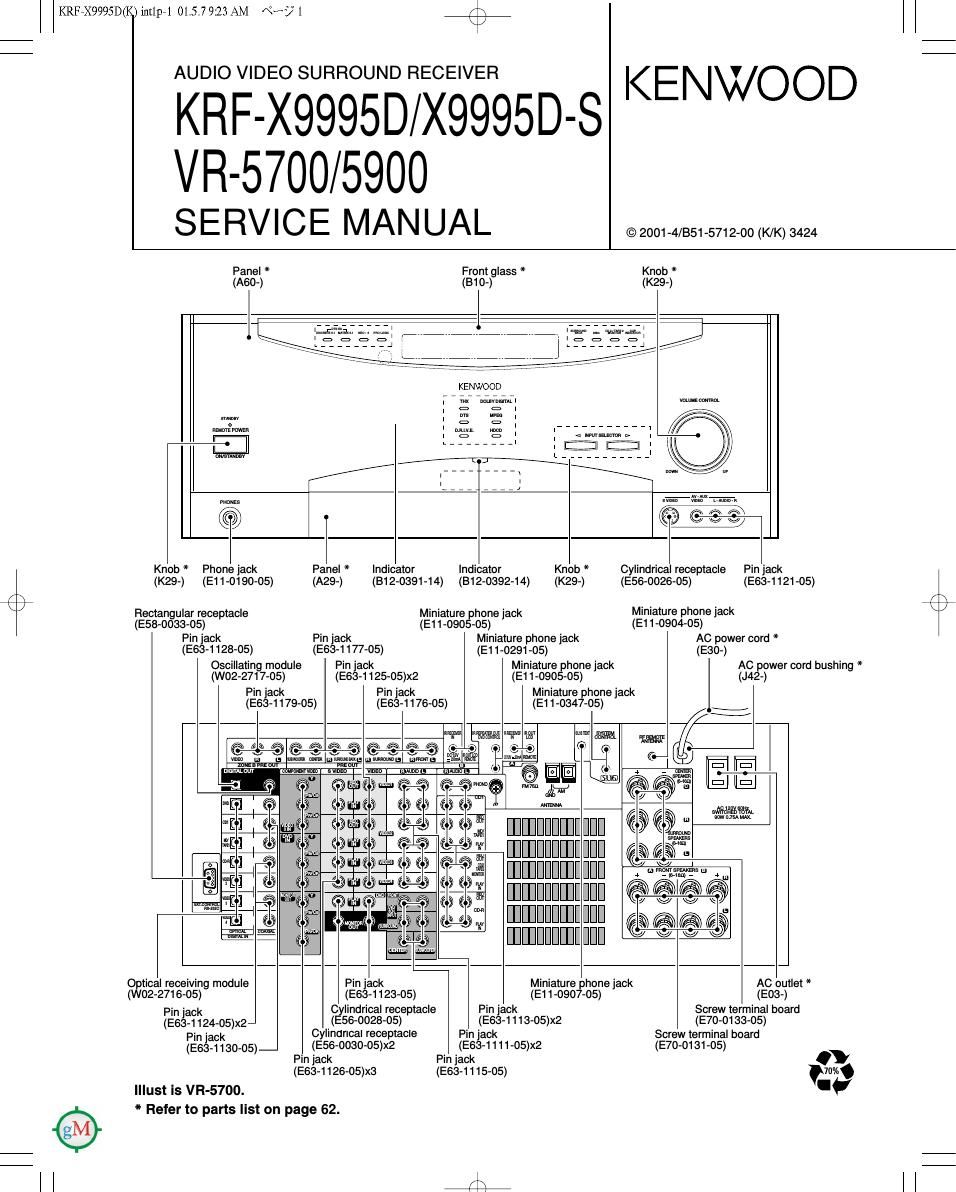

KRF-X9995D/X9995D-S/VR-5700/5900
CONTENTS / ACCESSORIES
Contents
CONTENTS / ACCESSORIES .................................. 2
DBASSEMBLYFORREPNR .m3
BLOCKDMGRAM ................. m5
PC BOARD .............................................................. 17
SCHEMATIC DIAGRAM 30
EXPLODED VIEW ............ ....60
...62
ADJUSTMENT ......... :.14 PARTS LIST ....... .
WIRING DIAGRAM.. ..... 16 SPECIFICATIONS ...88
Accessories
r
Remote control unit Batteries AM Loop Antenna FM Antenna
(A70-1453-05): FIC-FI091 3
E
Battery cover(A09-1166-08)
(T90-0852-05) (T90-0855-05)
Remote control unit (PowerTouch)
(A70-1456-05): RC-R1111
(A70-1457-05): FiC-Fi1012
(A70-1458-05): RC-R1o13
$1
2%
AC plug adaptor * .............. (1)
Antenna ass'y
(T90-0850-05)
U.S.A. only
Use to adapt the plug on
the power cord to the shape
of the wall outlet.
(Accessory only for regions
where use is necessary.)
Battery cover(A09-1177-08)
Pen(W01-0976-08)
* Refer to parts list.
[] DOLBY Dfl|nou3v sunnounln
DIGITAL PRO-LOGIC
Manufactured under license from Dolby Laboratories.
Dolby, Pro Logic , AC-S , and the doubleAD symbol are
trademarks of Dolby Laboratories Confidential Unpub-
lished Works. 1992-1997 Dolby Laboratories. All rights
reserved.
D l G I T A LK
SURROUND
Manufactured under license from Digital Theater Sys
tems, Inc. US Pat, No. 5,451,942 and other world-
wide patents issues and pending. DTS and DTS
Digital Surround are trademarks of Digital Theater
Systems, Inc, ' 1996 Digital Theater Systems, Inc.
All rights reserved.
I-DCD
-, HDCDu, High Definition Compatible Digitalul
and Pacific MicrosonicsW' are either registered trade
marks or trademarks of Pacific Microsonics, Inc. in
the United States and/or other countries HDCD sysA
tern manufactured under license from Pacific MicroA
sonics, Inc, This product is covered by one or more
of the following: W the USA: 5,479,166, 5,638,074,
5,640,161, 5,808,574, 5,838,274, 5,854,600,
5,864,311, 5,872,531, and in Australia: 669114. Other
patents pending.
KRF7X9995D(K)iut1p71 01.5.7 9:23 AM /\°-»j 4 fl.
KRF-X9995D/X9995D-S/VR-5700/5900
DISASSEMBLY FOR REPAIR
9. To remove the frame A rearward, cut the tie bands
(@X4) on the frames.
10. Remove a screw ((19), then remove a thermostat.
11. Remove the screws (@XtO), then remove a frame (D),
a cover and X07 8/5.
12. To remove a power amplifier unit (X07 A/5), remove
the screws (@x4). and a PC support (@xZ).
13. Set up the X07 N5 in the direction of arrow as shown
in the figure.
14. Replace the defective transistor.
