Kenwood KRF V6060D Owners Manual

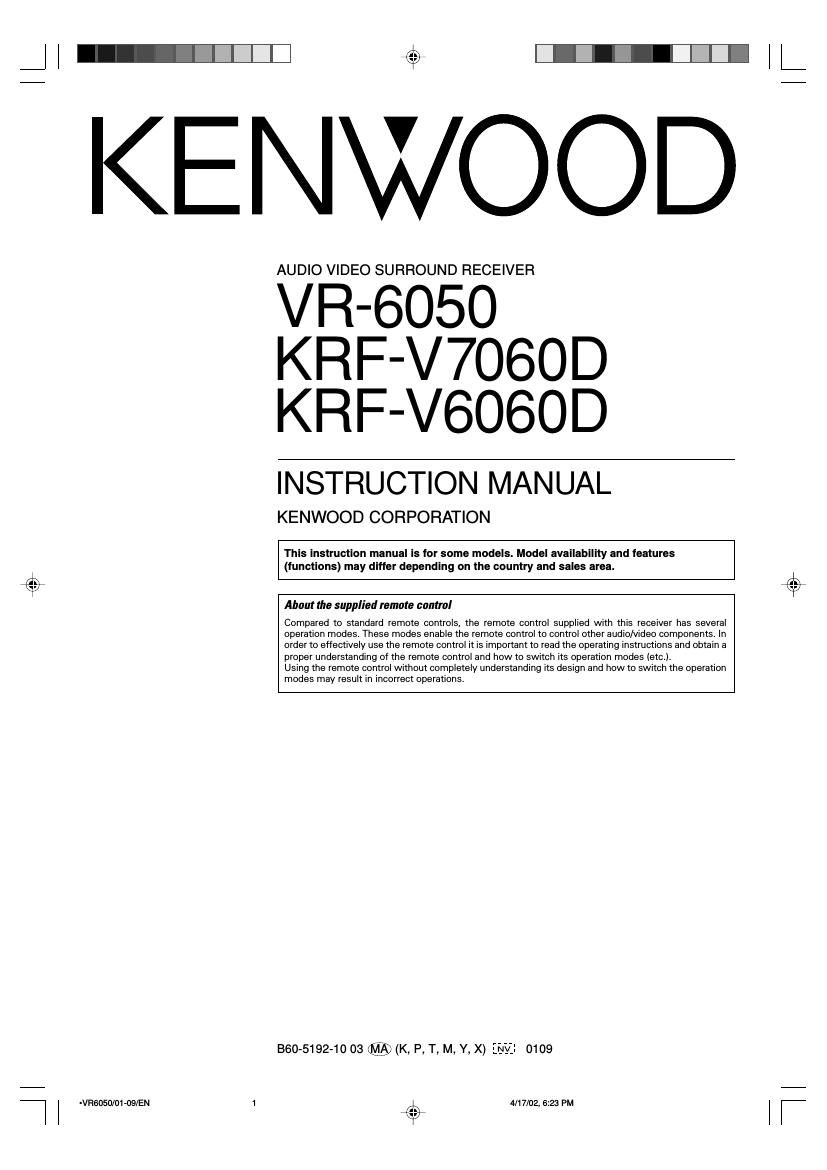

Page 1

J+-:I:I:I:I:| 9+: EIZIZ-ZEEI+L

T KENWOOD

AUDIO VIDEO SURROUND RECEIVER

VR-6050
KRF-V7060D
KRF-VBOBOD

INSTRUCTION MANUAL

KENWOOD CORPORATION

This instruction manual is for some models. Model availability and features
(functions) may differ depending on the country and sales area.

About the supplied remote cuntrol

Compared to standard remote controls, the remote control suppiied with this receiver has several
operation modes. These modes enable the remote control to control other audio/video components. In
order to effectiveiy use the remote control it is important to read the operating instructions and obtain a
proper understanding of the remote control and how to switch its operation modes Ieto.I.

Using the remote controi without completeiy understanding its design and how to SWitch the operation
modes may result in incorrect operations.

Bea-519240 03 ME (K, P, T, M, Y, X) 0109

+ ~VR6050/01709/EN I ( \ 4/17/02, 6:23 PM +
\ J

Page 2

ill-33333

Before applying the power

Units are designed for operation as follows.

U.S.A. and Canada ............... .. AC 120 V only
Australia AC 240 V only
Europe and U.K AC 230 V only
China and Russia AC 220 V only

Other countries .. AC 110-120 / 220-240 V switchab|e*

For the United Kingdom

mlL

A Caution : Read this page carefully to ensure safe
operation.

Factory fitted moulded mains plug

1.The mains plug contains a fuse. For replacement, use only a 13~
Amp ASTA-approved IBS13GZI fuse.

2.The fuse cover must be refitted when replacing the fuse in the
moulded plug.

3. Do not cut off the mains plug from this equipment. If the plug fitted
is not suitable forthe power points in your home orthe cable is too
short to reach a power point, then obtain an appropriate safety
approved extension lead or adapter, or consult your dealer.
lf nonetheless the mains plug is cut off, remove the fuse and
dispose of the plug immediately, to avoid a possible shock hazard
by inadvertent connection to the mains supply.

IM PORTANT: The wires in the mains lead are coloured in accordance
with the followmg code:

Blue : Neutral
Brown : Live

Do not connect those leads to the earth terminal of a three-pin plug.

*AI. voltage selection

The AC voltage selector switch on the rear panel is set to the voltage
that prevails in the area to which the unit is shipped. Before
connecting the power cord to your AC outlet, make sure that the
setting position of this switch matches your line voltage. If not, it
must be setto yourvoltage in accordance with the following direction,

AC voltage selector switch

VOLYAGE memo»:
Move switch lever to we gum
match your line voltage 0
with a small screwdriver

or other pointed tool.

a o

la no on

0 0°
cocoon

0 0 (7 IEI

Note:
Our warranty does not cover damage caused by excessive line

voltage due to improper setting oi the AC voltage selector switch.

Safety precautions

WARNING:

TO PREVENT FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.

@-

RISK or ELECYRIC SHOCK
Do Nor opzu

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS
INSlDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL,
WITHIN AN EOUILATERAL TRIANGLE, lS INTENDED TO
ALERT THE USER TO THE PRESENCE OF UNINSULATED
"DANGEROUS VOLTAGE" WITHIN THE PRODUCTS EN-
CLOSURE THAT MAY BE OF SUFFlClENT MAGNlTUDETO
CONSTITUTE A RlSK OF ELECTRIC SHOCK TO PERSONS.

THE EXCLAMATION POINTWITHINAN EQUILATERALTRI-

A ANGLE IS lNTENDED TO ALERT THE USER TO THE PRES-
ENCE OF lMPORTANT OPERATING AND MAINTENANCE
lSERVICINGlINSTRUCTIONSINTHELITERATUREACCOM-
PANYING THE APPLIANCE.

ZEN

NR6050/01709/EN 2

r \ 4/9/02. 4:51 PM

Page 33

Jl_:l:l:l:lj

4%

mm

Basic remote control operations for other components

The remote control supplied with this receiver is also capable
of controlling components from a variety of manufacturers
once you register the appropriate setup codes into the
remote control unit.

Low battery warning

Replace all two batteries with new ones when you notice a shortening
of the distance from which the remote control Will operate. in order
to retain the setup codes, please change the batteries approximately
Within 30 seconds. It the setup codes are erased, please re-enter the
codes.

Registering setup codes for other components

SOURCE L)
REMOTE MODE

Numeric keys

INPUT
SELECTOR

E Find the setup code of the component to be registered.

IRefer to the setup code lists to find the setup code or the
component to be registered. :1
Example: To register a DVD made by KENWOOD, you would enter
"805".

Input Component Maker Code Key
(DVD) DVD player KENWOOD 805, 808 DVD

E Registering components for REMOTE MODE [(0 VD, OBL,
USS/SAT. VCR. TV, OTHERS - RO-R0725/R0727} or (DVD, CD,
DBL/SAT, VCR, TV, OTHERS - RO-RWZEII keys.

0 For DVD, CD, CBL, DSS/SAT, cBL/SAT, VCR or TV keys;

Hold down the SOURCE 0) key and press the numeric keys to
enter the setup code.

I Example: Press "805" to register a DVD player manufactured by
KENWOOD.

I if you push an invalid key, the remote control will exit the setup
mode.

~VR6050/28734/EN 33

9 The OTHERS key enables you to operate another DVD, CD.
CBL, DSS/SAT, CBL/SAT, VCR or TV component.

For OTHERS key;

Hold down the OTHERS key and press the numeric keys to
enter the setup code.

- Example: After you have registered the KENWOOD DVD player.
press "804" to registeranotherDVD playerwhich is manufactured
by Panasonic.

- if you push an invalid key, the remote control will exit the setup
mode.

EPress any of the REMOTE MODE key and then press the
SOURCE 0 key to check that the component you want to
control turns on.

If the component does not react, and there is more than one
setup code, enter another setup code and try again.

O if the component is already on, pressing the SOURCE Q) key Will
turn it off.

flRepeat steps E to B to register additional components until
all components have been registered.

Alternative REMOTE MODE key.

This operation is optional and is convenient when you link an lNPUT
SELECTOR key to the REMOTE MODE key. While operating one
component, the lNPUT SELECTOR key iunctions as an alternative
REMOTE MODE key to select another component.

- Example: REMOTE MODE lDVDl key can be linked to the lNPUT
SELECTOR lVlDEO ll key as described below:

0 After registering the setup code, press and hold the SOURCE
Q) key and then press the REMOTE MODE (DVD) key.

9 While holding down the SOURCE 0). press the INPUT
SELECTOR (VIDEO 1) key.

- Now the VlDEO l key will function as a DVD key which can be
selected at the same time while operating a CD player.
- Repeat step 0 to 9 to link other INPUT SELECTOR keys.

Note
Although each setup code is designed to work with a number of
different models, certain codes may not work With some models.
lAlso, certain codes may only operate some of the functions available
on a given model.)

33 EN

4/17/02, 6:25 PM

Page 35

711-33333

Basic remote control operations for other components

Setup code chart (RC-30727) (VB-6050MBF- V60600}/(RC-RU725}(KHF- V70600)

TV Setup codes VCR Setup codes
Maker Setup codes Maker Setup codes
AKAI 125 AIWA 352
BELL+HOWELL 142 AKAI 354, 355, 356
CENTURION 126 BELL+HOWELL 351
CORONAD 127 DAEWOO 349
DAEWOO 136, 140, 141, 145 EMERSON 334, 335,336, 337, 338
EMERSON 130,131,132,133,146 FISHER 330, 341, 342, 343
FISHER 119 (SE. 307, 321
GTE. 102, 122, 129 GOLD STAR 323
GOLD STAR 137, 148 GO_V|DEO 347, 348, 353
HITACHI 114, 115 HITACHI 307,308,328, 329
JVC 113 JVC 324, 325, 326, 327
KT\/ 138,139 MAGNAVOX 311, 312, 313
LOEWE 123,124 MITSUBISHI 315, 316, 317, 318, 357, 358
MAGNAVOX 109, 147 NEC 344, 345
MARANTZ 121 ORION 335
MITSUBISHI 121 PANASONIC 309,310
PANASONIC 111,112,122,129 PHILIPS 313
PHILIPS 109,147 OUASAR 309, 310,311, 312
PIONEER 116 RCA 308
PROSCAN 117 SAMSUNG 332, 339, 340
RADIOSHACK 128 SANYO 351
RCA 102, 103, 104, 105, 106, 126 SCOTT 331
SAMSUNG 134, 135 SHARP 319, 320
SANYO 119 SHINTOM 333
SEARS 120 SONY 301, 302, 303, 304, 305, 306
, \ SHARP 11O SYNPHO 346
SONY 101 TEKNICA 346, 350
SYMPHONIC 143,144 TOSHIBA 314
TOSHIBA 120 ZENITH 322
gglfiifiR 1:]; 12): DVD player Setup codes
Maker Setup codes
CBL codes HITACHI 812
JVC 801
Maker Setup codes KENWOOD 805, 808
GEMINI 218 MITSUBISHI 810
Gel. 209 ONKYO 815,816
HAMLIN 210, 211, 234, 235 PANASONIC 804
JERROLD 201, 202, 224, 225,226, 227, PHILIPS 807
228, 229, 233 PIONEER 803
MACOM 215, 216, 217 PROSCAN 811
MAGNAVOX 236 RCA 811
OAK 212,213,214 SAMSUNG 814
PANASONIC 221, 222, 232 SONY 802
PHILIPS 219, 220, 237, 238, 239, 240 TOSHIBA 806
PIONEER 206, 207 YAMAHA 809
SAMSUNG 223 ZENITH 806, 813
S. ATLANTA 203, 230, 231
T O C OM 208 DSS/SATcodes
ZENITH 204' 205 Maker Setup codes
ECHOSTAR 903
G.|. 902
HITACHI 908
HUGHES 906
PANASONIC 905
PRIMESTAR 909
RCA 901
SONY 907
TOSHIBA 904

~VR6050/3544/EN

35

GP

4/9/02. 4:57 PM

35 EN
