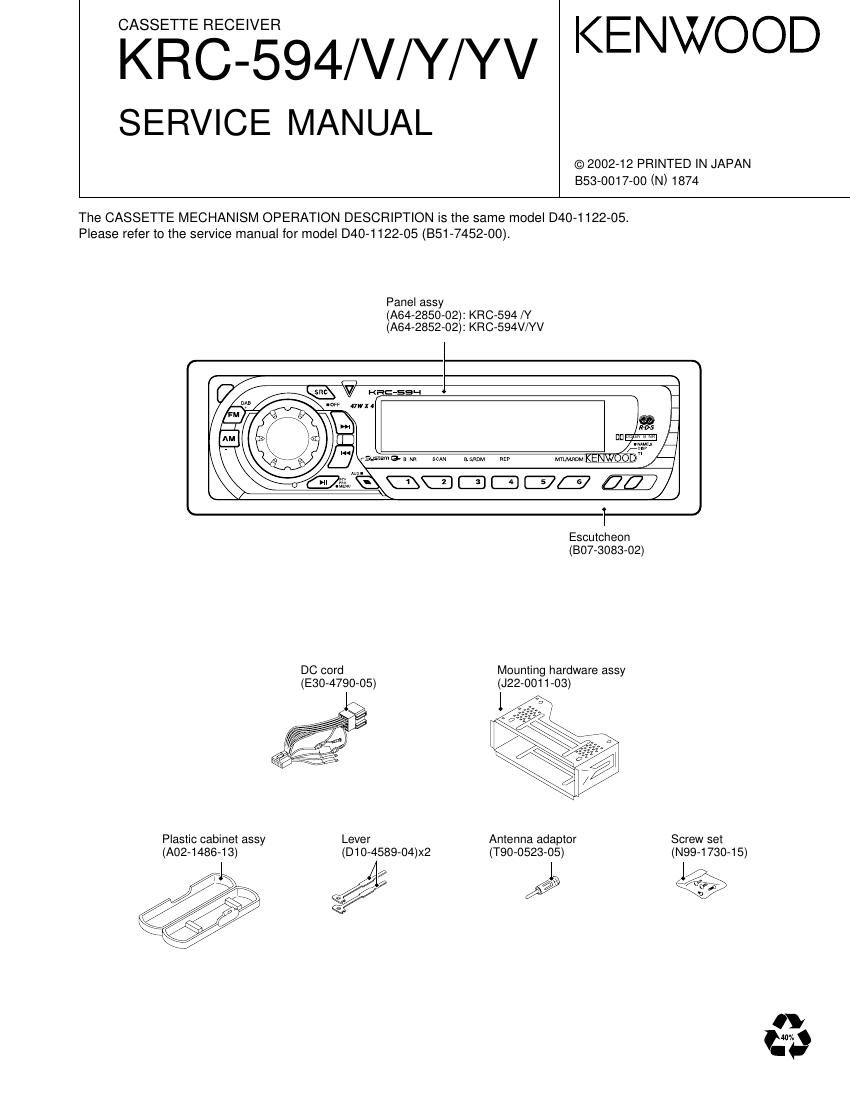

Page 1
CRSEIEECTEQMV/Y/Yv KENWOOD
SERVICE MANUAL
© 2002-12 PRINTED IN JAPAN
353-0017-00 (N) 1874
The CASSETTE MECHANISM OPERATION DESCRIPTION is the same model D40-1122-05.
Please refer to the service manual for model D40-1122-05 (B51-7452-00).
Panel assy
(A6472850702): KR07594 /Y
(A6472852702): KR07594V/YV
I
Esculcheon
(80773083702)
DC cord Mounting hardware assy
(33074790705) 02270011703)
I
Plastic cabinet assy Lever Anlenna adaptor Screw set
(A0271486713) ID1074589704)><2 (T9070523705) (N9971730715)
Page 2
KRC-594/V/Y/YV
DISASSEM BLY FOR REPAIR
How to remove the Volume Knob
1. Remove the rear cover of panel unit.
2. Juck up as remove the switch unit (x16-) and Volume Knob
as shown.
(CAUTION)
Volume Knob cannot pull of front side that looked at tab
point in the rotary encoder.
9 l
How to install the Volume Knob
1. Remove the peeling paper of LIGHTING BOARD BOSS
side.
2. CAP and LIGHTING BOARD are install positioning as
shown.
LIGHTING BOARD
Be careful of direction.
3. Remove the peeling paper.(Use Tweezers)
4. CAP and Volume Knob are install positioning as shown.
Rib: short
7 KNOB(VOL)
7' Dented part
5. Install a Volume Knob in rotary encoder positioning as
Shown.
Mount the Volume Knob into
the broad Y shaped cutting in
the direction of the picture.
m
BROAD SIDE
KNOB(VOL)
OTHER SIDE
