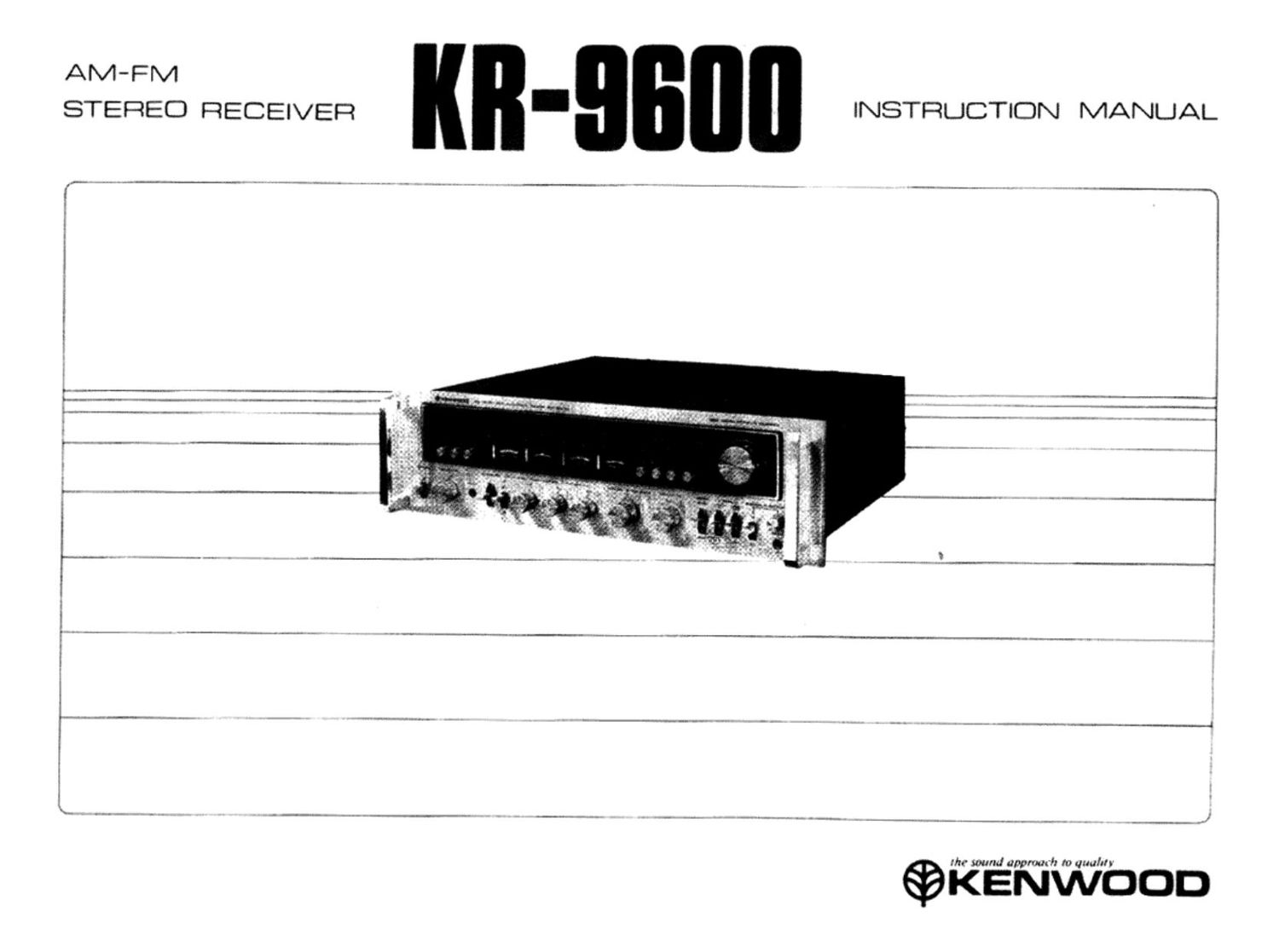

Kenwood KR 9600 Owners Manual

Page 2

INTRODUCTION

Thank yOU lor purchasIng our receiver Because we take great
pride In the long tradition of qualIty components the name Kenwood
represents. your purchase of a Kenwood receiver places you in a dis-
tinguished family at cennoisseurs oi Superb high-fidelity wund
reproduction

The purpose of this manual as to acquaint you With the operating
features of your new recerer You wrll notice that in every detail of
planning. engineering. styling. operating convenience, and adaptabilIty.
we have sought to antICIpate your needs and desires.

We suggest that you read this manual carefully Knowmg how
to set up your receiver. to the best advantage wrll enhance your IISIG
ning pleaswe right from the start You will also become aware of the
ease With which you can adjust your receiver to meet your special re-
quirements,

Turn the pages and become acquainted wrth the exciting featu-
res of your new receiver. features that will remain new for endless
hours of listening pleasure.

PRECAUTIONS CONCERNING INSTALLATION

la) The KRrQBOO is heavy and should always be handled with great
care.

lb) Avoid locations subject to direct sunlight.

IcI Avoid high or low temperature extremes

id) Keep the receiver away from heat radiating sources

CONTENTS
FEATURES. .. , ...........................
INTERCONNECTING DIAGRAM ........ . ................................ , 3
CONNECTING lNSTRUCTlONS ................. .
CONTROLS AND THEIR FUNCTIONS ............. . ................... 7
OPERATING INSTRUCTIONS. .. ,i . . ... .. . 9
TROUBLE SHOOTING .. . .. .i ._. .................. 13

I IKE-9800 (K)

AC VOLTAGE SELECTION AND POWER FUSE

The KR-9600 operates on 1 10 ~ 120 volt or 220 ~ 240 volt
AC. The AC Voltage Selector switch on the rear panel is set to the
voltage that prevails in the area to which the receivers are shipped.
Belora operating this receiver. make sure that the position of the AC
Voltage Selector Switch matches yOur line voltage. I! not. it must be
changed to the proper setting

To change. first disconnect the AC line cord. Then remove the
stopper plate and slide the AC Voltage Selector' Switch to the opposite
side. Then reattach the stopper plate to the other side.

NOTE: Our warranty does not cover carnage caused by excessive no voltage
due to improper setting of the AC Voltage Selector Swatch
Stomvolate Ramon screw am! stopper plate
At; 0- 120V a \ 2 Switch lever to oppeeica ode

3 anlr Ian-er tyv .NMNflg stepper
plate to 00909:. we saw:

(IZOV)

--~.

Q AC 220 240V» 1 ' W Eu'oooan type
- 'IZOVI

AC VOLTAGE SELECTOR SWITCH
