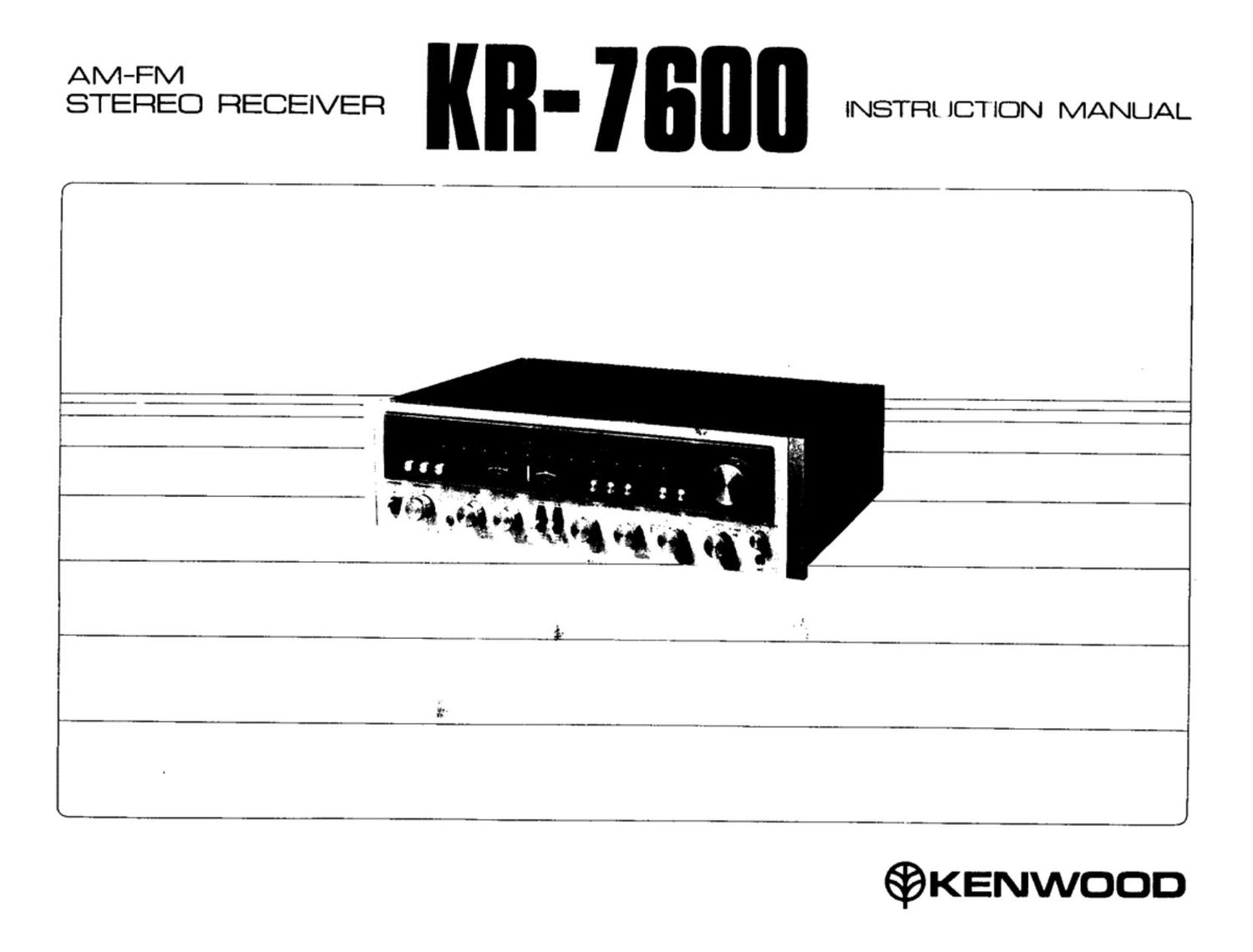

Kenwood KR 7600 Owners Manual

Page 2

INTRODUCTION

The purpose of this manual is to acquaint you with the operating
features of your new receiver. You will notice that in every detail of
planning, engineering. styling. operating convenience. and adaptability.
we have sought to anticipate your needs and desires.

We suggest that you read through this manual carefully.
Knowing how to set up your receiver. to the best advantage. will
enhance your listening pleasure right from the start. You will also
become aware of the ease with which you can adjust your receiver to
meet your Special requirements.

SERIAL NUMBER

Record your SERlAL NUMBER on the spaces designated on the
warranty card. You will find the serial number on the back of the unit.

AFTER UNPACKING

After unpacking. we recommend you inspect and examine the
unit for any possible shipping damage. If your unit is damaged or fails
to operate. notify your dealer immediately. If your unit was shipped to
you directly. notify the shipping company without delay. Only the con-
signee (the person or company receiving the unit) can file a claim
against the carrier for shipping damage.

We recommend you retain the original carton and packing
materials to prevent any damage should you transport or ship your unit
in the future

INSTALLATION PRECAUTIONS 1

8) Avoid locations subject to direct sunlight.

b) Avoid high or low temperature extremes.

0) Keep the unit away from heat radiating source.

d) Keep the unit at least four inches (aboutlen centimeters) away
from the wall and other things for ventilation.

WARNING:

TO PREVENT FIRE OR SHOCK HAZARD, DO
NOT EXPOSE THIS APPLIANCE TO RAIN
OR MOISTURE.

2 KR~7600IKJ

IMPORTANT!

1. Units shipped to USA. and Canada are designed to operate
on 120 volts AC only and. units to the Scandinavian
countries. on 220 volts AC only. They are not equipped with
an AC Voltage Selector Switch. and. the following
description on such a switch should be disregarded.

2. Units shipped to all other countries are equipped with an AC
Voltage Selector Switch on the rear panel. The following
description, "AC Voltage Selection and P. Iver Fuse". should
be carefully read.

AC VOLTAGE SELECTION AND POWER FUSE

This unit operates on 1 10 - 120 volts or 220 ~ 240 volts AC.
The AC Voltage Selector Switch is set to the AC voltage generally
available in the country where the unit is shipped

Before connecting the power cord to your AC outlet. make
sure that the setting position of this switch corresponds to your
AC voltage. If not. it must be properly changed in accordance
with the directions below.

In such a case, it is necessary to replace the power fuse. Consult
a qualified servicemen then.

NOTE: Our warranty does not cover damage caused by excessive line voltage due
to improper setting of the AC Voltage Selector Switch.

53635 t Remcwe mm; and stopper plate.
,. . 2 Slide lever to opposite side.
A . T.
-- © |_,._l © 3 Lock lever with stopper plate
Aczzoa and SCTOW

ZOOV
Aciaov-D, Stopper 9'". Known, '
nuzov' B Acaaov- 3

AC VOLTAGE SELECTOR SWITCH

- Fur opean type.
