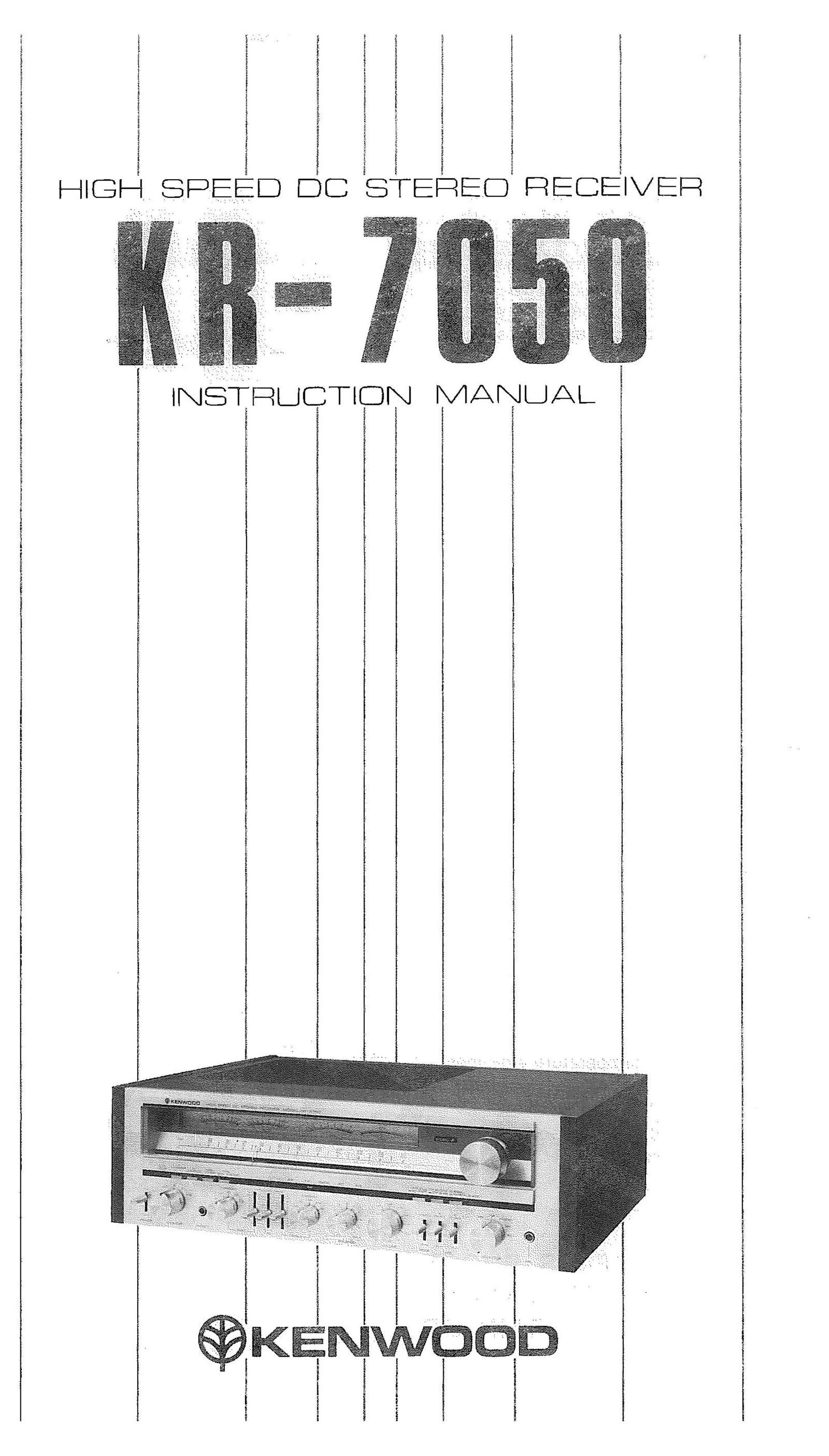

Kenwood KR 7050 Owners Manual

This is the 16 pages manual for Kenwood KR 7050 Owners Manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 16
left right
Kenwood KR 7050 Owners Manual

Extracted text from Kenwood KR 7050 Owners Manual (Ocr-read)


Page 2

INTRODUCTION

You are no doubt anxious to hook up your
new receiver and settle back to hear the object of
your purchase -- superior sound. To this end, let
us help you to integrate the receiver into your
system. Take the time to read through this
manual carefully. Knowing how to set up your
receiver to best advantage will enhance your
listening pleasure right from the start. You will
also become aware of the ease with which you
can adjust your receiver to meet your special re-
quirements.

FOR YOUR RECORDS

Record the serial number. found on the back
of the unit, in the spaces designated on the
warranty card. and in the space provided below.
Refer to the model and serial numbers whenever
you call upon your Kenwood dealer for informa-
tion or service on this product.
Model KR-7050 Serial number

UNPACKING

Unpack the unit carefully and make sure that
all accessories and FM indoor antenna are put
aside so they will not be lost.

Examine the unit for any possibility of
shipping damage. If your unit is damaged or fails
to Operate. notify your dealer immediately. If your
unit was shipped to you directly, notify the
shipping company without delay. Only the
consignee (the person or company receiving the
unit) can file a claim against the carrier for
shipping damage.

We recommend that you retain the original
carton and packing materials for use should you
transport or ship the unit in the future.

INSTALLATION PRECAUTIONS

a) Avoid locations subject to direct sunlight.

b) Avoid high or low temperature extremes.

c) Keep the receiver away from heat-radiating
sources.

d) Make sure power is off before making any
system connections.

WA NENG:
TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR
MOISTURE.

2 KR-70501Kl

IMRRTANT'

U. S A. AND CANADA

Units shipped to the U SA and Canada are. 1

designed for operation on 120 volts AC only.
These units are not equrpped With an AC3
Voltage Selector switch and the discussmn Off
fsuCh a switch that follows should be}
disregarded " ' » -

TALL OTHER COU NTRIES

Units shipped to countries Other than the U. S. A
and Canada are equrpped with an AC Voltage:
Selector Switch On the rear panel Refer to the
following paragraph fer the proper setting of?
' this sWi-tCh. ~ - '

AC VOLTAGE SELECTION

This unit Operates on 120 volts. 220 volts or
240 volts AC. The AC Voltage Selector Switch is
set to the AC voltage generally available in the
country where it is shipped. Before connecting
the power cord to your AC outlet, make sure that
the setting position of this switch matches your
AC line voltage. lf not, it must be prOperly
changed in accordance with the directions below.

Note:-
Our warranty does not cover damage caused by excessive
line voltage due to improper setting of the AC Voltage
Selector Switch.

Sumner Diale\ 1

AC 120v \ V
Setting 9!

A C 2 2 0V ~ . - D - ?
. ii . i ' L; 1
S e t t I n g ' -/ :- 23:,

Remove serew and stopper plate.
SIICIC lever to y0ur line voltage.
Luck lever wrth Stopper plate

(.«JIQ-t

and screw.

AC Voltage Selector Switch
