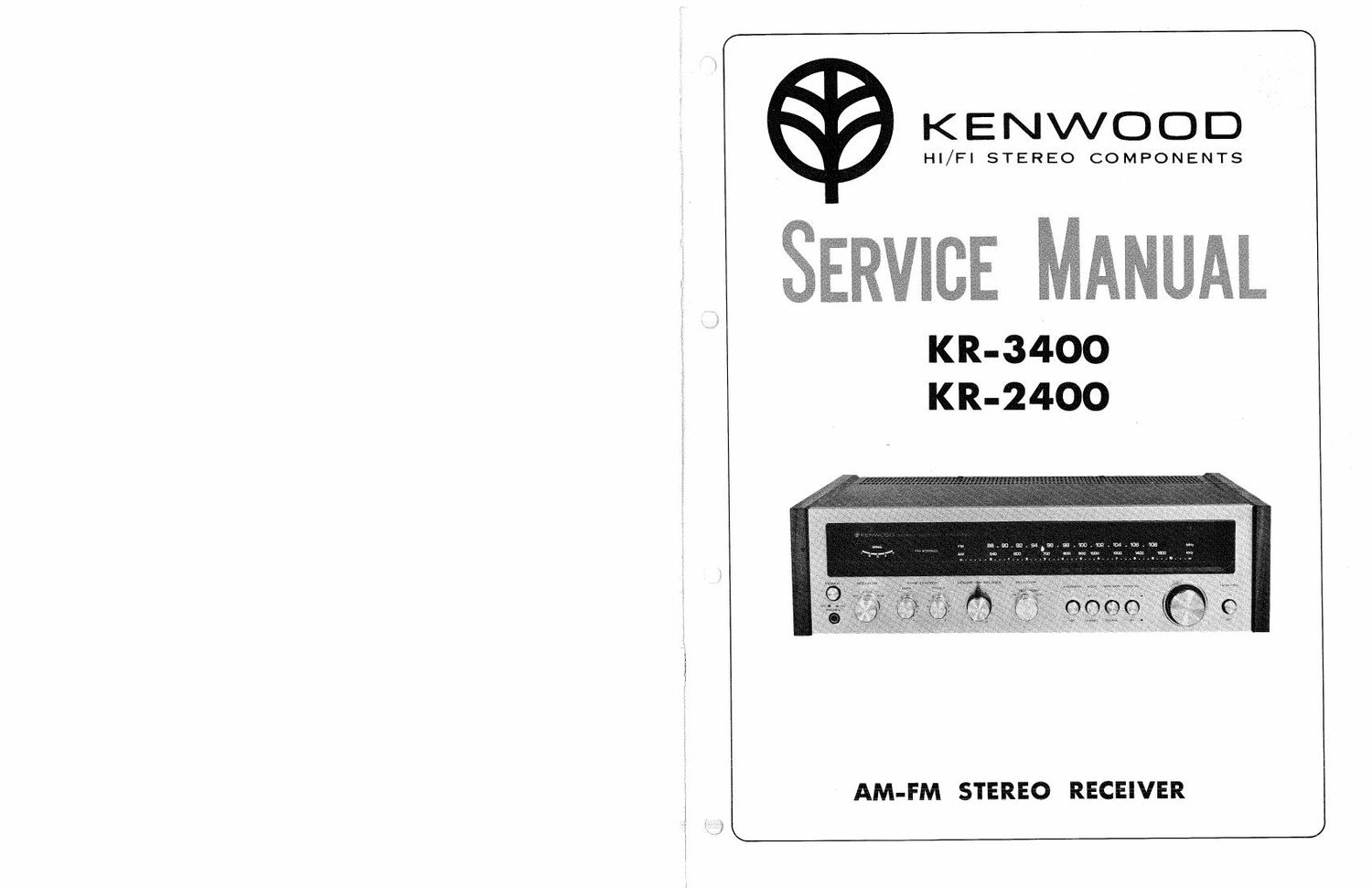

Kenwood KR 2400 Service Manual

This is the 28 pages manual for Kenwood KR 2400 Service Manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 28
left right
Kenwood KR 2400 Service Manual

Extracted text from Kenwood KR 2400 Service Manual (Ocr-read)


Page 2

EUROPE TYPE/ POWER VOLTAGE SELECTOR

KR-3400, KR-2400 have a voltage selector switch on When the position of the AC Voltage Selector Switch

the rear panel (except for K, P, L type) to meet with is changed, it is also necessary to change the power que
two kinds of line voltage of 110 ~ 120 Volts AC and For 110 N 120 volt operation a 2 ampere fuse shou'd
220 N 240 Volts AC, which is set to the voltage of its be used. For 220 N 240 volt operation a l ampere
destination. fuse should be used. if the power fuse fails, rembve
Before operating this receiver, make sure that the posi- blown fuse and replace with the same type fuse of the
tion of the AC Voltage Selector Switch matches your same capacity.

line voltage. if not, it must be changed to the proper When you replace the fuse, turn the fuse holder in the
setting. direction of the arrow using a Phillips screw driver.
To change, first disconnect the AC line cord, then in some districts, the set will be provided with another
remove the stopper plate and slide the AC Voltage type of fuse holder, which allows easy replacement of
Switch to the opposite side. 'Then reattach the stopper the fuse without using the Phillips screw driver.

plate to the other side.
NOTE:
Always disconnect power supply before replacing a que.

Siopper plate

LRemove screw and stopper plate.
2. Switch lever to opposite side.
6 a 3 3. Lock lever by sttachinfl stopper
5 plate to opposite side screw.
llOlZOVDZZD 240V HOIZOV4DZZO140V
izov4>7zov l20V4D220V1

l lis European type.

AC VOLTAGE SELECTOR SWITCH

l
.
f
