Kenwood KR 100 Owners Manual

Extracted text from Kenwood KR 100 Owners Manual (Ocr-read)

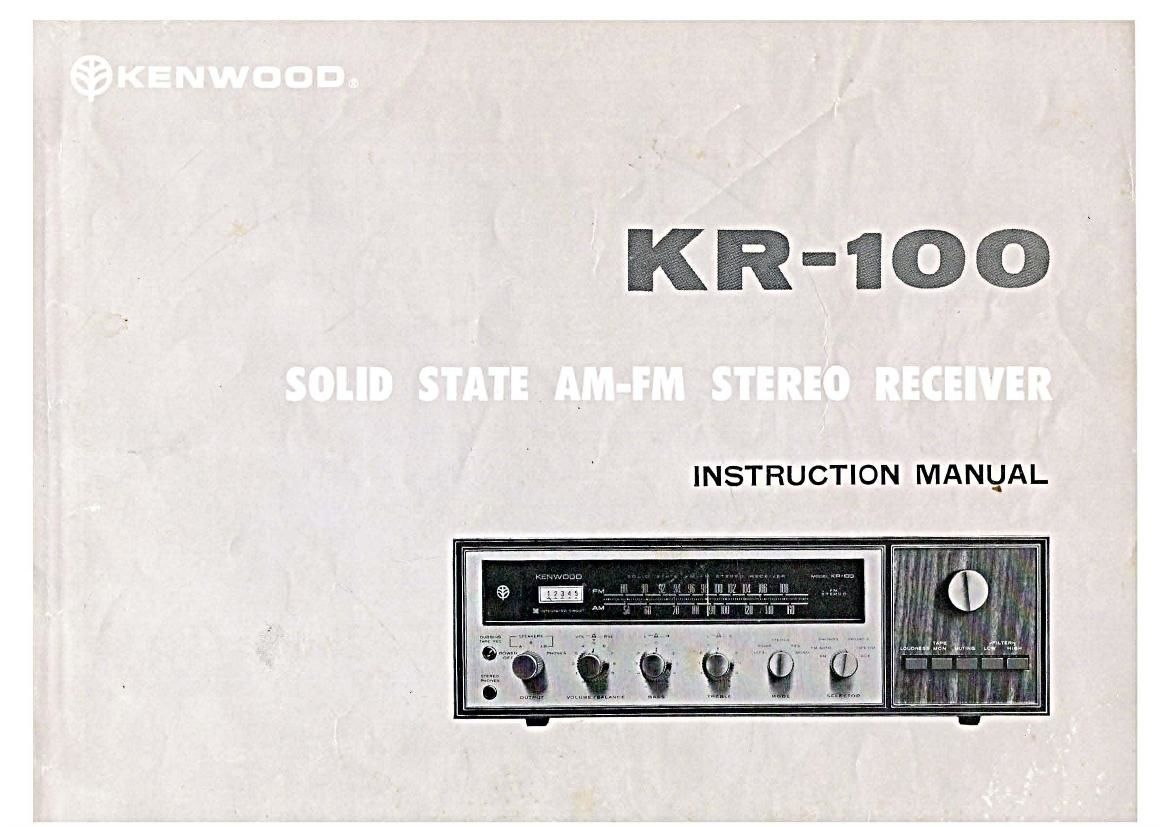

Page 1

INSTRUCTION MANLJAL

Page 2

WELCOME TO KENWOODS ALL-NEW SOLID STATE CIRCUITRY

Getting acquainted With your new KENWOOD KR-lOO is an exciting experience.
Transistors with FET (Field EIfect Transistor) and IC (Integrated Circuit) are ready
to give you SOLID STATE AM-FM AUTOMATIC STEREO RECEPTION of highest quality.
You'll find the excitement multiplies as you discover the many other features hidden in-
side and displayed outside the handsome new chassis.

I

Your KR-IOO is equippedswith a newly developed protection circuit which guards a-
gainst widespread transistor damage from short circuits at the output terminals or speak
er circuits. The KR-IOO gives extra long-life to output transistors.

A total of 170 watts (at 4 ohms), 13?: watts (at 8 ohms) output power and FM
AUTOMATIC circuit are ready to select FM STEREO stations instantly with the help of
a built-in. high standard silent switching system.

Go ahead-enjoy it! Your new KENWOOD KR~IOO expects rugged use.
It was designed and engineered to take it.

TABLE OF CONTENTS

INTRODUCTION ................................................................................................ 1
SPECIAL FEATURES .................. ..........

INTERCONNECTING DIAGRAM .............................

CONNECTIONS T0 COMPONENT PARTS ------------

ELECTRICAL CONNECTIONS .........................

CONTROLS AND THEIR FUNCTIONS -------------------

TAPE RECORDER CONNECTIONS & OPERATIONS-

OPERATING INSTRUCTIONS" ' -

SPECIFICATIONS """""""""""

MOUNTING TEMPLATE .........--un.u.' ................................................................. 13

i
