Kenwood KNAG 510 Service Manual

Extracted text from Kenwood KNAG 510 Service Manual (Ocr-read)

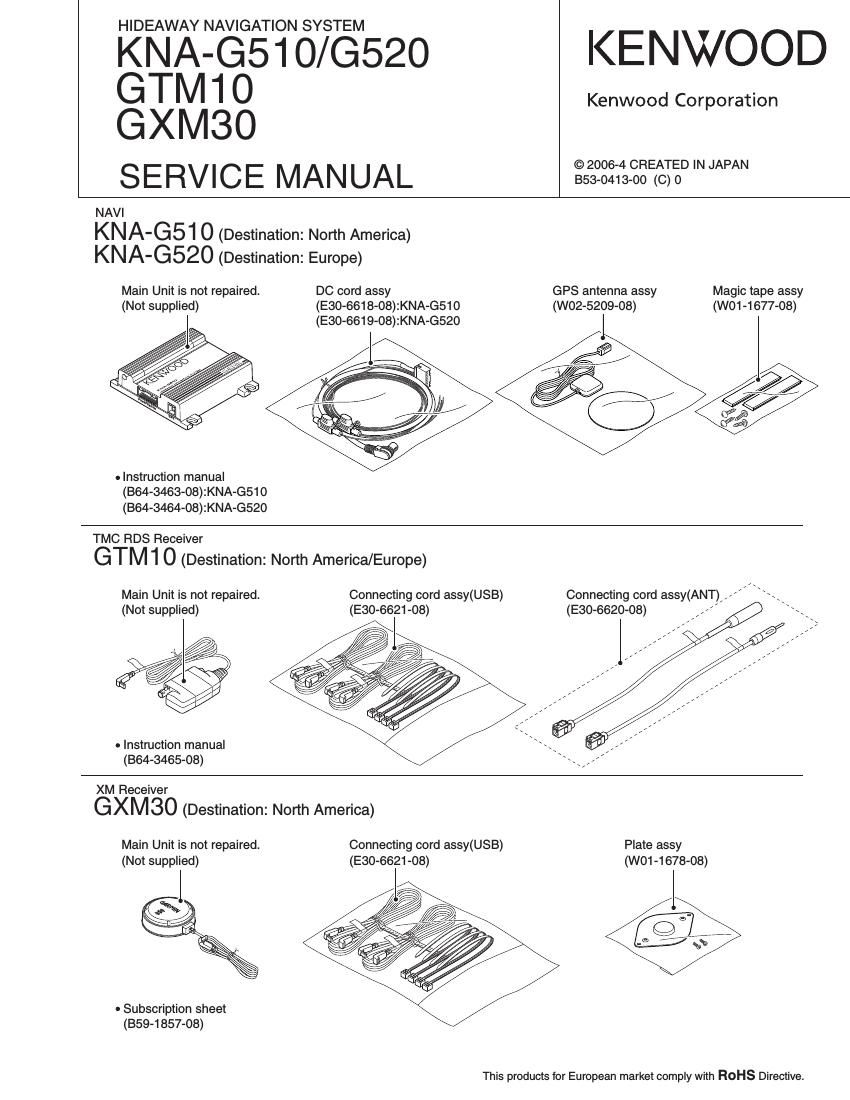

Page 1

WQWKTAémAsT'iNSY/Safls2o KENWOOD

GTM1 O Kenwood Corporation
G X M 30
© 2006-4 CREATED IN JAPAN

SERVICE MANUAL 853-0413-00

NAVI

KNA-G51 0 (Destination: North America)
KNA-G520 (Destination: Europe)

Main Unit is not repaired. DC cord assy GPS antenna assy Magic tape assy
(Not supplied) (E30-6618-08):KNA-G510 (W02-5209-08) (W01-1677-08)
(E30-6619-08):KNA-G520

. Instruction manual
(Be4-3463-08):KNA-G510
(Be4-3464-08):KNA-GSZO

TMC RDS Receiver
GTM1 0 (Destination: North America/Europe)

Main Unit is not repaired. Connecting cord assy(USB) Connecting cord assy(ANT)r,//\~
(Not supplied) (E30-6621-08) (E30-6620-08) "

. %g

\

- Instruction manual
(864-3465-08)

XM Receiver

GXM30 (Destination: North America)

Main Unit is not repaired. Connecting cord assy(USB) Plate assy
(Not supplied) (E30-6621-08) (WO1-1678-08)

. Subscription sheet
(359-1857-08)

This products for European market comply with ROHS Directive.
