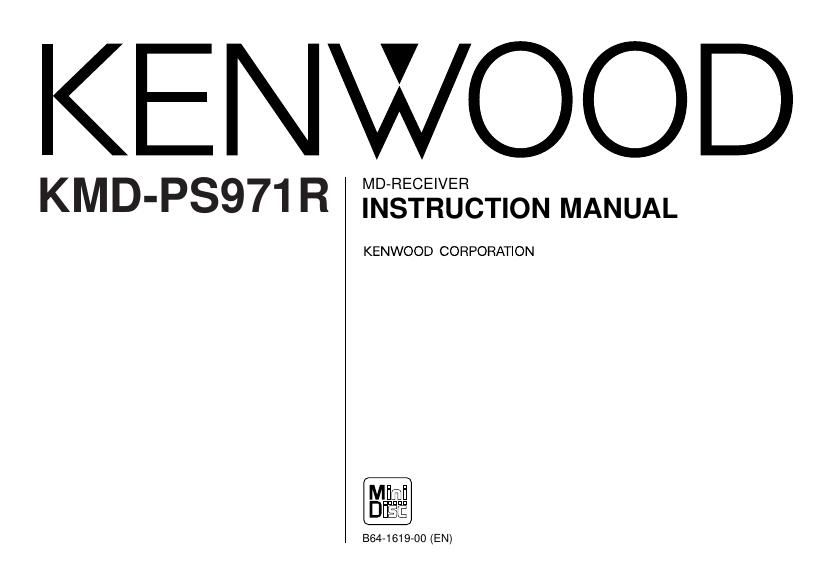

Kenwood KMDPS 971 R Owners Manual

Extracted text from Kenwood KMDPS 971 R Owners Manual (Ocr-read)


Page 1

- 2 - English Contents Before useSafety precautions ...............................................................................3 General featuresPower ...................................................................................................6 Switching Modes .................................................................................6 Volume .................................................................................................7 Attenuator ............................................................................................7 Loudness .............................................................................................7 Audio Control Setting ...........................................................................8 Mobile Preset.....................................................................................10 Non-Fading Output.............................................................................10 TEL Mute ...........................................................................................10 Switching Display...............................................................................12 Faceplate Angle Adjustment..............................................................12 Removing the Faceplate ....................................................................14 Forced Closing ...................................................................................15 Tuner featuresTuning ................................................................................................16 Switching Display for Tuner ...............................................................16 Station Preset Memory ......................................................................18 Kenwood intelligent Twin IF (K2I) ......................................................18 RDS featuresRDS (Radio Data System) ..................................................................19 Enhanced Other Network ..................................................................19 Alarm..................................................................................................19 Traffic Information Function ...............................................................19 Presetting Volume for Traffic Information/News ...............................20 Programme Type (PTY) Function .......................................................20 Radio Text Scroll ................................................................................21 MD/External disc control featuresPlaying MDs .......................................................................................22 Playing Other Disc mode ...................................................................23 Fast Forwarding and Reversing Disc Play .........................................23 Track Search ......................................................................................24 Disc Search ........................................................................................24 Switching Display for Discs ...............................................................24 Track / Disc Repeat ............................................................................26 Track Scan..........................................................................................26 Disc Scan ...........................................................................................26 Random Play ......................................................................................26 Magazine Random Play .....................................................................27 Text / Title Scroll ................................................................................27 Presetting Disc Names(DNPS) ..........................................................28 Menu settingsMenu System ....................................................................................30 Touch Sensor Tone ............................................................................30 Manual Time Adjustment ..................................................................30 Calendar Adjustment .........................................................................31 Calendar Mode...................................................................................31 Memo Mode ......................................................................................32 Automatic Time Adjustment ..............................................................32 Mask Key ...........................................................................................33 Selectable Illumination .......................................................................33 Brightness level adjustment ..............................................................34 Dimmer ..............................................................................................34 Switching Graphic Display .................................................................34 Black Mask.........................................................................................34 Time setting for removing the faceplate ...........................................34 Dual Zone System .............................................................................34 dB (Sound Coordinate system) ..........................................................35 External Amp Control .........................................................................35 Manual Open Button Setting .............................................................35 News Bulletin Function with PTY News Timeout Setting .................36 Local Seek Function...........................................................................36 Selecting Tuning Mode ......................................................................36 Auto Memory Entry ...........................................................................36 AF (Alternative Frequency) Function..................................................37 Restricting RDS Region (Region Restrict Function)...........................37 Auto TP Seek Function ......................................................................37 Monaural Reception ...........................................................................37 Text Scroll ..........................................................................................38 Basic operations of remote control ....................39 Installation Accessories........................................................................................41 Installation Procedure ........................................................................41 Connecting Cables to Terminals ........................................................42 Connecting Cables to Terminals ........................................................43 Installtion ............................................................................................43 Removing the Unit .............................................................................44 Locking the faceplate to the unit .......................................................45 Attaching Steering Remote Control ..................................................45 Troubleshooting Guide .......................................46 Specifications .....................................................49

Page 2

- 3 - To prevent injury and/or fire, take the following precautions: - Insert the unit all the way until it is fully locked in place. Otherwise it may fly out of place during collisions and other jolts. - When extending the ignition, battery or ground cables, make sure to use automotive- grade cables or other cables with an area of 0.75mm 2(AWG18) or more to prevent cable deterioration and damage to the cable coating. - To prevent short circuits, never put or leave any metallic objects (e.g., coins or metal tools) inside the unit. - If the unit starts to emit smoke or strange smells, turn off the power immediately and consult your Kenwood dealer. - Make sure not to get your fingers caught between the faceplate and the unit. - Be careful not to drop the unit or subject it to strong shock. The unit may break or crack because it contains glass parts. 2WARNING To prevent damage to the machine, take the following precautions: - Make sure to ground the unit to a negative 12V DC power supply. - Do not open the top or bottom covers of the unit. - Do not install the unit in a spot exposed to direct sunlight or excessive heat or humidity. Also avoid places with too much dust or the possibility of water splashing. - Do not subject the faceplate to excessive shock, as it is a piece of precision equipment. - When replacing a fuse, only use a new one with the prescribed rating. Using a fuse with the wrong rating may cause your unit to malfunction. - To prevent short circuits when replacing a fuse, first disconnect the wiring harness. - Do not place any object between the faceplate and the unit. - During installation, do not use any screws except for the ones provided. The use of improper screws might result in damage to the main unit. - Do not apply excessive force to the moving faceplate. Doing so will cause damage or malfunction. - Do not apply excessive force to the open faceplate or place objects on it. Doing so will cause damage or breakdown. 2CAUTION IMPORTANT INFORMATION You cannot connect the unit directly to the following CD automatic changers. For users who want to use older changers with the unit, follow the directions below according to the type of changer you own: - KDC-C200 / KDC-C300 / KDC-C400 Use the extension cable and the control box attached to the CD changer, and the optional CA-DS100 converter cable. - KDC-C301 / KDC-C600 / KDC-C800 / KDC- C601 / KDC-C401 Use the extension cable attached to the CD changer, and the optional CA-DS100 converter cable. - KDC-C100 / KDC-C302 / C205 / C705 / non-Kenwood CD changers Cannot be used with this model. You can damage both your unit and the CD changer if you connect them incorrectly. 2CAUTION Safety precautions US and foreign patents Iicensed from Dolby Laboratories Licensing Corporation.

Page 11

- This function cannot be operated whilst the Black Mask function is on. - The right side display items vary depending on the source that is playing. For details refer to the "Switching Display" page for source modes. - During vertical division mode display The upper part display is switched each time the DISP button is pressed. The lower part display is switched each time the CLK button is pressed. Example: Tuner mode DISP button CLK button Upper part display Lower part display NOTE Programme Service name/ Station frequency Band display + Preset station number Graphic Spectrum Analyzer1 Spectrum Analyzer2 Spectrum Analyzer3 Analog clock Digital clock Example: Tuner mode DISP button CLK button Right side display Left side display You can change the display in each mode. Selecting the Display Mode: Each time you hold down the D.M button for one second or more, the display mode switches as follows: Changing the Display:- During full-screen display mode Each time you press the CLK button, the display switches as follows: - This function cannot be operated whilst the Black Mask function is on. - Character items are not displayed when the graphic display function is turned off. - During horizontal division mode The left side display is switched each time the CLK button is pressed. The right side display is switched each time the DISP button is pressed. NOTE Character Spectrum Analyzer1 Spectrum Analyzer2 Spectrum Analyzer3 "ALL OFF" Character Date + Clock (Standby mode) (Source mode) Full-screen display mode Horizontal division display mode Vertical division display mode Switching Display General features - 12 - English

Page 43

English - 44 - Removing the hard rubber frame n Removing the Unit Insert the removal tool into the indentations in the hard rubber frame, and pull it gently until the lock is released. Accessory4 Removal tool Removing the Unit n Make the faceplate control panel appear. When the control panel of the faceplate is hidden, the unit will be locked by the sleeve, making it more difficult to remove the unit. Refer to the section Removing the hard rubber frame and then remove the hard rubber frame. Remove the screw (M4´8) on the back panel. Insert the removal tool deeply, as illustrated, with the L on the left and the R on the right. 4 3 2 NOTE 1 Accessory2 Removal tool L Screw (M4X8) (commercially available) L Push upward the both tools, as shown, and pull the unit toward you until it is halfway out. The unit may drop if you pull it out completely. 5 Pull the unit all the way out with your hands, being careful not to drop it. 6 L
