Kenwood KEC 302 Owners Manual

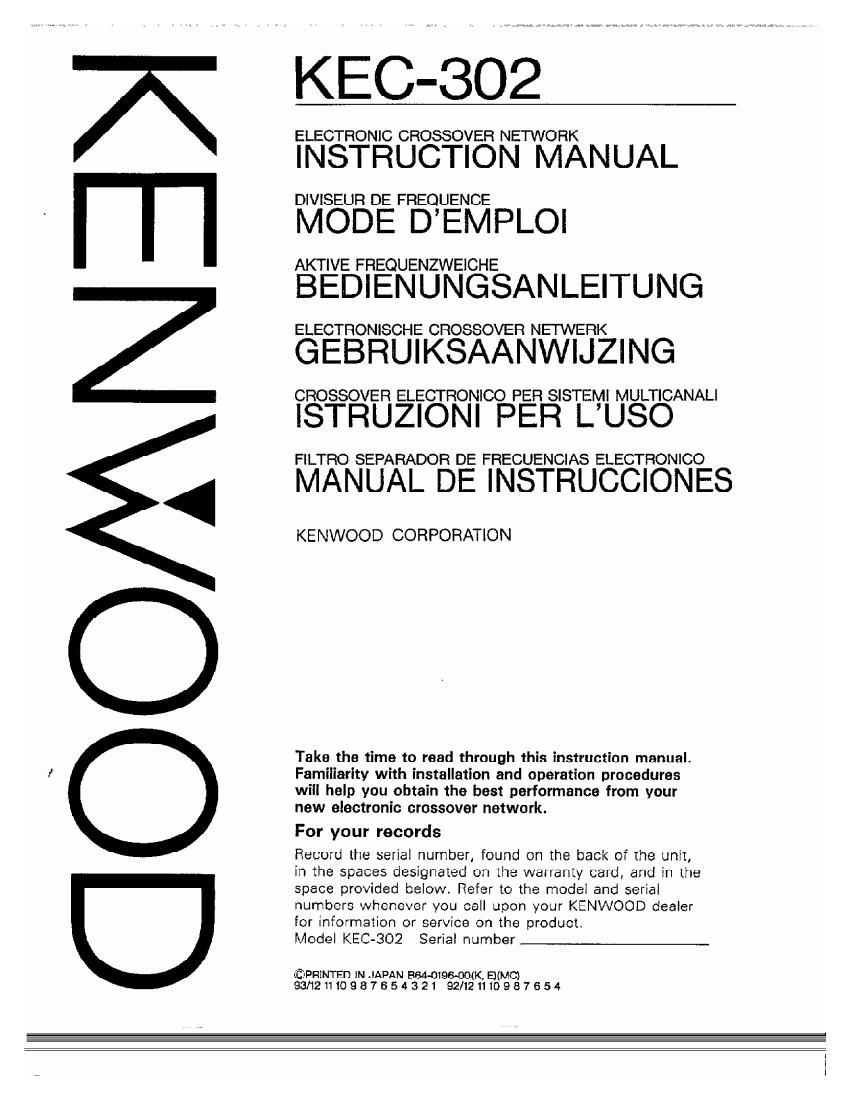

Page 1

w.

GOO/ANEDI

* KEG-302

ELECTRONIC CROSSOVER NETWORK

INSTRUCTION MANUAL

DlVlSEUR DE FREQUENCE

MODE DEMPLOl

AKTIVE FREQUENZWEICHE

BEDIENUNGSANLEITUNG

ELECTRONISCHE CROSSOVER NETWERK

GEBRUIKSAANWIJZING

CROSSOVER ELECT RONICO PER SISTEMI MULTICANALI

ISTRUZIONI PER LUSO

FILTRO SEPARADOR DE FRECUENCIAS ELECTRONICO

MANUAL DE INSTRUCCIONES

KENWOOD CORPORATlON

Take the time to read through this instruction manual.
Familiarity with installation and operation procedures
will help you obtain the best performance from your
new electronic crossover netwark.

For your records

Record the serial number, found on the back of the unit,
in the spaces designated on the warranty card, and in the
space provided below. Refer to the model and serial
numbers whenever you call upon your KENWOOD dealer
for information or service on the product.

Model KEC-302 Serial number

(ChPFllNTED IN JAPAN 864019640, E](MC)
93/12111098765432192/121110987654

Page 2

SAFETY PRECAUTIONS

A WARNING

Observe the following instructions to
prevent fires and personal injury.

0 When the Power supply lead, Memory
backup lead or Ground lead are '
extended, use a 0.75 mm1 (AWG 18)
or larger automotive grade cable
which will withstand friction and heat
to safe guard against fires occurring
as a result of short-circuiting.

0 Make sure that metal objects,
particularly needles or coins do not
get into the unit to prevent short-
circuiting and fires.

0 If smoke comes out of the unit or a
strange smell is present, disconnect
the unit immediately and consult your
KENWOOD dealer, Continued use
under these circumstances could
cause a fire, as well as damage the
unit permanently.

A CAUTION

Heed the following instructions to keep
the unit in proper working order.

0 The unit should be connected to a
12 V DC power supply with a minus
ground connection.

0 Do not open enclosures, such as the
front panel, top or bottom covers.

0 Do not place the unit, where it will be
exposed to direct sunlight or near
heating devices.

0 Do not dash water on the unit.

0 Do not place the unit in areas of
excessive dust, high humidity or on
unstable surfaces.

NOTE

0 If you have difficulty in installing the
set in your car, please contact your
KENWOOD dealer.

CLEANING

1. Turn the power off, before cleaning
the unit.

2. Wipe the front panel and other
exterior surfaces of the unit with a
soft dry cloth or a soft cloth lightly
moistened with a neutral detergent.

A CAUTION

0 Do not use abrasive pads, thinner
or benzene (or other volatile
solvents) to clean the unit as this
may remove indicator characters.
