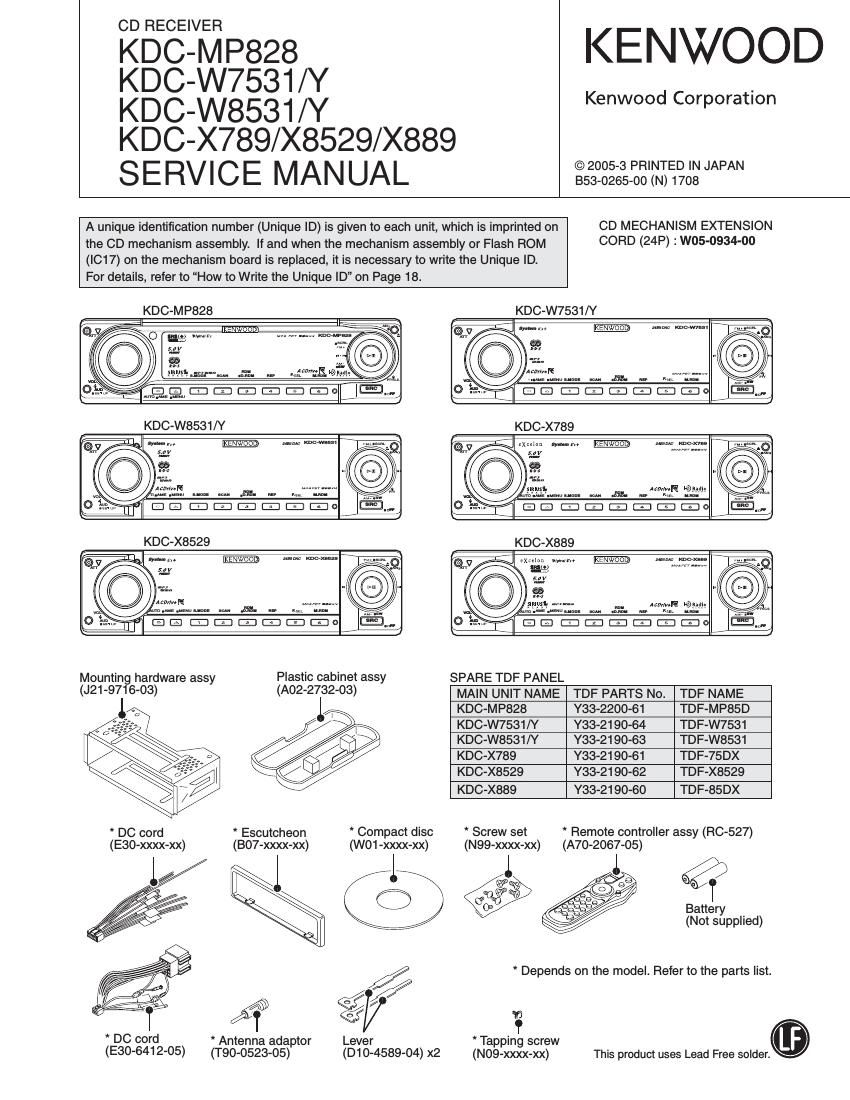

Kenwood KDCX 789 Service Manual

This is the 54 pages manual for Kenwood KDCX 789 Service Manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 54
left right
Kenwood KDCX 789 Service Manual

Extracted text from Kenwood KDCX 789 Service Manual (Ocr-read)


Page 7

KDC-MP828/W7531/W7531Y/W8531
AN8531Y/X789/X8529/X889

MICROCOMPUTERS TERMINAL DESCRIPTION

Pin No. Pin Name IIO Function Processing Operation

43 SOL l/O E2PROM IZC clock MAX 100kHZ

44 PON PANEL l/O Panel 5V control ON : H (Momentary power down/Panel detached)
11 Minutes after ACC OFF : Hi-Z

45 DSI l/O DSI control

46~49 NC - Not used.

50 PM MOT1 0 Panel motor control 1 Refer to Truth Value Table (PANEL MOTOR)

51 PM MOT2 0 Panel motor control 2 Refer to Truth Value Table (PANEL MOTOR)

52 EPM | Flash EPM

53 PM OPEN l Panel full open detection Refer to Truth Value Table (PANEL MECHA)

54~56 NC - Not used

57 P5V DIS l/O Panel 5V discharge control H : Discharge, Other :Hi-Z

58 PM CLOSE l Panel mechanism close detection Refer to Truth Value Table (PANEL MECHA)

59 ROMCOR DET | E2PROM write request H :Write

60 PM DET | Panel mechanism detection H : Function check in progress

61 SC CON 0 Inside-panel communication (Chip enable when flash) POWER OFF, ACC OFF : L

62 NC - Not used

63 TUN TYPE1 | Destination setting 1 TUN TYPE1 : L, TUN TYPE2 : L

64 TUN TYPE2 | Destination setting 2 TUN TYPE1 : L, TUN TYPE2 : L

65,66 NC - Not used

67 CD D|8012 SW | 120m CD detection

68 CD LOS SW | CD loading detection

69 CD MUTE R | CD mute (Rch) request L : Rch mute request

70 CD MUTE L | CD mute (Lch) request L : Lch mute request

71 W 0 CD mechanism microcomputer reset L : Reset, H :Normal

72 CDMTOP 0 CD mechanism microcomputer stop L : Mechanism microcomputer stop,
H : Mechanism microcomputer in operation

73 NC - Not used

74 CD LOE LIM SW | CD detection (Chucking SW) H : Loading complete, L :No disc

75 CD LOEJ l/O CD motor control Refer to Truth Value Table (CD MOTOR / CD LOEJ)

76 CD MOTOR 0 CD motor control Refer to Truth Value Table (CD MOTOR / CD LOEJ)

77 PON lLLUMl l/O Key illumination power supply control ON :H, OFF : Hi-Z

78 PON CD l/O CD/WMA power supply control At time of CD source: H, Other than CD : Hi-Z

79 PON 0 Power supply control POWER ON : H, POWER OFF : L

80 PON FL+B O Fruorescent indicator tube bias power supply control POWER ON : H, POWER OFF or display black out : L

81 m l/O Fruorescent indicator tube filament power supply control POWER ON : L, POWER OFF or display black out : Hi-Z

82 F SEL1 O SW-Reg frequency switching

83 F SEL2 O SW-Reg frequency switching

84 DIAG l/O P-CON excess current surveillance

85 VCCZ -

86 EXT AMP CON l/O External amplifier control

87 VSS -

88~91 TYPE 1~TYPE4 | Destination switching

92 NC - Not used

Page 10

KDC-MP828/W7531/W7531Y/W8531
AN8531Y/X789/X8529/X889

MICROCOMPUTERS TERMINAL DESCRIPTION

10

Pin No. Pin Name IIO Function Processing Operation

45 m | Data reception from system p-com UART communication 500kbps

46 FM 0 Data transmission from panel UART communication 500kbps

47 m 0 Fruorescent indicator serial communication reference clock Reference clock 4.125MHz

48 m | Key return Interruption possible

49 m 0 Fruorescent indicator serial control data

50 (W | Serial synchronization clock Synchronized to Fruorescent indicator CLK
51 FL EL 0 Fruorescent indicator skip shilt control H or Hi-Z :Odd number skip, L : Even number skip
52 m 0 Fruorescent indicator serial control data

53 CLK-INZ | Serial synchronization clock Synchronized to Fruorescent indicator CLK
54 FL LAT O Fruorescent indicator latch control

55 W O Fruorescent indicator serial control data

56 3.3VDD - 3.3V

57,58 X2,X1 | Clock 6.6MHZ

59 CVSS - Connect to GND

60 CKSEL - Connect to GND

61 PSEL - Connect to VDD

62 2.5VDD - 2.5V

63 V38 - Connect to GND

64 MODEO - Connect to GND

65 MODE1 - Pull down

66 m | Input from reset IC

67 AVDD1 | D/A conversion reference voltage Connect to D3.3V

68,69 NC - Pull down

70,71 AVSS1,AVSSO - D/A conversion reference GND

72 AVDDO - A/D conversion reference voltage Connect to D3.3V

73 WAVE IN | Voice input AD read

74 F01 | BPF (63Hz) AD read

75 F02 | BPF (150Hz) AD read

76 F03 | BPF (330Hz) AD read

77 F04 | BPF (1 kHz) AD read

78 F05 | BPF (3.3kHz) AD read

79 F06 | BPF (10kHz) AD read

80 NC - Pull down

81 2.5VDD - 2.5V

82 VSS - Connect to GND

83 NC - Not used

84 TYPE I Whether there is customizing or not designation setting H : Flash ROM (This model), L : Mask ROM (Other model)
85 NC (VREFCON) 0 Not used

86 FWD | Remote controller signal Detection with pulse width

87 PON FL+B O Fruorescent indicator bias power supply switch H : ON, L : OFF

88 PON FLVDD l/O Fruorescent indicator logic section power supply switch H : ON, Hi-Z : OFF

89 PON 5V l/O 5V power supply switch Remote controller IC / Space analyzer IC power

supply H :ON, Hi-Z : OFF
