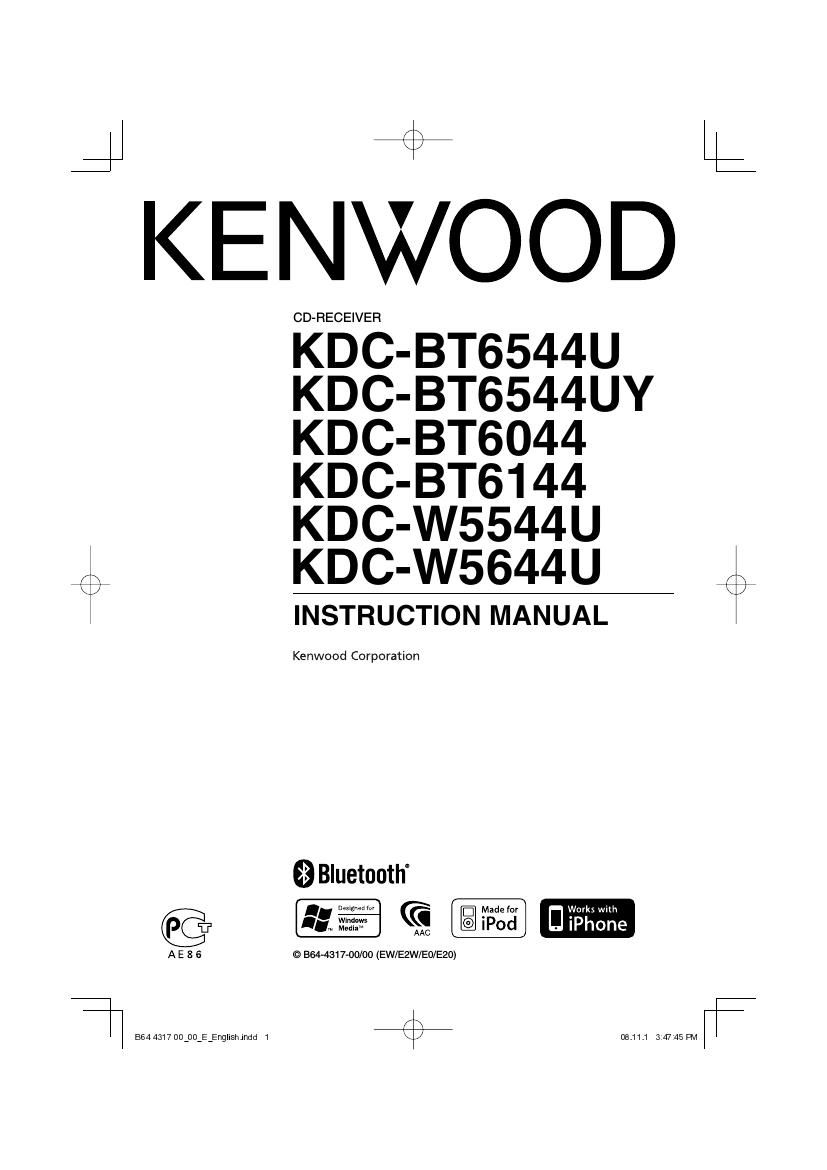

This is the 48 pages manual for Kenwood KDCW 5644 U Owners Manual.
Read or download the pdf for free.
If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.
4%
Contents
Before use 3 Audio Adjustments 20
Basic Operation Audio Control
Function Control
~ Read through [his page first for the selling oieach
function,
Display Settings 10
Text Display Selection
Auxiliary Input Display Setting
Music disc/Audio file Operation 11
Music Search
Music Search for iPod
All Random
iPod Control by Hand Mode
Direct Music Search
Direct Disc Search
Basic Operation of Disc Changer (Optional)
Tuner Operation 1 4
Auto Memory Entry
PTY (Program Type)
Program Type preset
Changing Language for PTY Function
Preset Tuning
Direct Access Tuning
Operation of hands-free phoning 16
Before Use
Receivmg a call
During a call
Call waiting
Other functions
Making a call
Dial a number
Speed dialing (Preset dial)
Calling a number in the Phone Book
Calling a number in the call log
Make a voice dialing call
Registering to the Preset Dial Number List
Display of phone number type (category)
Other Functions 1 9
Activating Security Code
Deactivating Security Code
Manual Clock Adjustment
Demonstration mode setting
Adjusting the detail of Audio Control
Audio Setup
Speaker Setting
Audio Preset Memory
Audio Preset Recall
Audio Adjustments (DSP) 23
Cabin selection
Speaker Setting
DTA (Digital Time Alignment) setting
XOver setting
Equalizer Control
Preset position selection
Audio Preset Memory
Audio Preset Recall
Favorite Control 26
Preset Memory
Preset Recall
Preset Memory Delete
Name Setting
Bluetooth Setup 28
Registering Bluetooth device C\
Registering Special Bluetooth device
Registering PlN Code
Downloading the Phone Book
Selecting the Bluetooth device You Wish to
Connect
Deleting a Registered Bluetooth device
Displaying the Firmware Version
Adding a voice dialing command
Setting a Voice Command for Category
SMS (Short Message Service)
Downloading the SMS
Basic Operations of remote control 33
Appendix 35
Accessories] Installation Procedure 39
Connecting Wires to Terminals 40
lnstallatloanemoving the Unit 42
Troubleshooting Guide 43
Specl Ications 45
2 l KDC-BT6544U/ KDC-BT6544UY/ KDC-BT6044/ KDC-BT6144/ KDC-W5544U/ KDC-W5644U
354 4317 DfliflfliEiEngllsh indd 2
%
0811134746PM
Function of KDC-BT6544U/BT6544UY/BT6044/BT6 i44U
Bluetooth Setup
Registering Bluetooth device
To make your Bluetooth device (cell-phone) usable
with this unit, you need to register it (pairing). You
can register up to five Bluetooth devices to this unit.
When registering from Bluetooth devices
1 Turn on the control unit.
2 Start registering a unit by operating the
Bluetooth device
By operating the Bluetooth device, register the
handsrfree unit (pairing). Select KENWOOD BT
CD/R73P2"from the list of connected units,
3 Enter a PIN code
Input the PIN code registered as mentioned in
Check that registration is complete on the
Bluetooth deVice,
4 By operating the Bluetooth device, start hands-
free connection.
When registering from this unit
1 Enter Bluetooth device registration mode
Select "MENU" > "DVC REGIST".
Press the [AUD] knob for at least 1 second.
For how to select Function Control item, refer to
Search for the Bluetooth device.
When search is completed, FINlSHEDis displayed,
2 Select the Bluetooth device
Turn the [AUD] knob or push it towards up or
down to select the Bluetooth device.
Press the [AUD] knob to determine the
selection.
3 Input the PIN code
Operation type Operation
Selett the numbers.
up or down
Muve to the nextdigit. Push the [AUD] knub toward: right
Push the [AUD] knub toward: left.
Delete the last digit
4 Transmit the PIN code
Press the [AUD] knob for at least 1 second.
lfPAlRING OKis displayed, registration is
completed.
5 Return to the device list
Press the [AUD] knob.
6 Exit Bluetooth device registration
Press the [SEARCH] button.
iurn the [AUD] knob or push it toward:
- This unit allows up to eight digits to be input (or 3 PW
code. lfa PIN code cannot be input irorn this unit, it can
be input from the Bluetooth device,
- lithere are 5 or more Bluetooth deVices registered, you
cannot register a new Bluetooth deVice
- lithe error message appears even though the PlN code
is correct, try
(page 28).
Registering Special Bluetooth device
Allow registration ofa special device that cannot be
registered normally (pairing).
1 Enter special device registration mode
Select "MENU" > "S-DVC SELECT".
Press the [AUD] knob for at least 1 second.
For how to select Function Control item, refer to
A list is displayed,
2 Select a device name
Turn the [AUD] knob or push it towards up or
down to select a device name.
Press the [AUD] knob to determine the
selection.
lf"COMPLETE" is displayed, registration is
completed.
3 Go through the procedure of
registration (pairing).
Cancelling special device registration mode
Press the [SEARCH] button.
- lithe deVice name is not in the list, select"OTHER
PHONE.
Registering PIN Code
By operating the Bluetooth device, specify the PIN
code necessary for registering this unit.
1 Enter PIN code edit mode
Select"MENU">"P|N EDIT".
Press the [AUD] knob for at least 1 second.
28 l KDC-BT6544U/ KDC-BT6544UY/ KDC-BT6044/ KDC-BT6144/ KDC-W5544U/ KDC-W5644U
354 4317 DuinniEiEnglish lndd 25
08111 34BDDPM
F\
\/
Appendix
For operating KCA-BT200 (Optional)
For operation refer to ModeIrBVZ in the Instruction
Manual of KCAeBTZOO, and the table beiow,
IVSIAIUS" DV( SIAIUS
BHON Y" HF (ONNEU '
BMON N" HF (ONNEU N"
Notation used in fire KtA-BTZIJIJ Operation
Instruction Manual
[> button [AUD] knob
(ontroI knob [AUD] knob
Press the [AUTO]/[]|] button
Ieatti second.
(ontrol knob knob towards up ordown [AUD] knob knob towards up
or down
(ontrol knob knob towards left or right [AUD] knob knob towards Ieft
or right
For operating KCA-BT100 (Optional)
However, the following control methods ofthe
function for this unit may be different from the
Instruction manual; therefore, refer to the following
supplemental instruction.
I. Press the [AUD] knob. Select the NUMBER DIAL"
display.
2. Press the [SEARCH] button.
3. Select the number to recall by turning the [AUD]
knob.
4. Press the [AUD] knob.
1. Operation is the same, Refer to the instruction
manual of KCAeBTi 00.
2. Press the [SEARCH] button.
3. Select the number to memory by turning the
[AUD] knob,
4. Press the [AUD] knob for at least 2 seconds,
173. Operation is the same. Refer to the instruction
manual of KCArBTi 00.
4. Press the [AUD] knob at least I second.
5. Press the [SEARCH] button.
Displays of Ku-nnoo Instruction Actual displays on this
Manual
"DIS(0NCI" "HF DIS(0N(I
"(ONNKV "HF (ONNEW
PHNVDEL" "DEVICE DEL"
Pressure [>II] button for at
Menu Glossary
- AF (Alternative Frequency)
When the reception is poor, automatically alternate to
another frequency broadcasting the same program in
the same RDS network With better reception.
- AMP
Selecting OFEturns off the buiItrin amplifier,
Turning off the builtrin amplifier improves the
quality ofthe sound from Preout.
- AUTO ANS (Setting the Time Interval for
Automatic Answer)
This function automatically answers (responds
to) a call after Iapse of the preset time interval for
automatic answer,
OFF": Does not answer the phone call
automaticaliy.
0",Automatically answers the phone call at once.
Is"r995",Automatically answers the phone caII
after Iapse of i , 99 seconds.
- ifthe time set in the cellphone IS shorter than that set in K
the unit, the former Will be used
- This function does not work for call waiting
- AUX
When this is set to ON, AUX source can be selected,
ONI . AIIows AUX source to be selected. Use this
setting when the built»in AUX terminai is
connected to the external equipment all the
time.
ONZ, Activates the attenuator function when
turning on the power with AUX source
selected, Cancel the attenuator function
by turning the volume knob clockwise
when listening to the audio of the external
equipment.
OFF: Disable AUX source selection, Use this setting
when the builtrin AUX terminal is not used,
- CALL BEEP (Setting the Beep of the Incoming Call)
You can output a beep from the speaker when a
caII comes in.
ON". Beep is heard.
OFF": Beep is canceled.
36 I KDC-BT6544U/ KDC-BT6544UY/ KDC-BT6044/ KDC-BT6144/ KDC-W5544U/ KDC-W5644U
