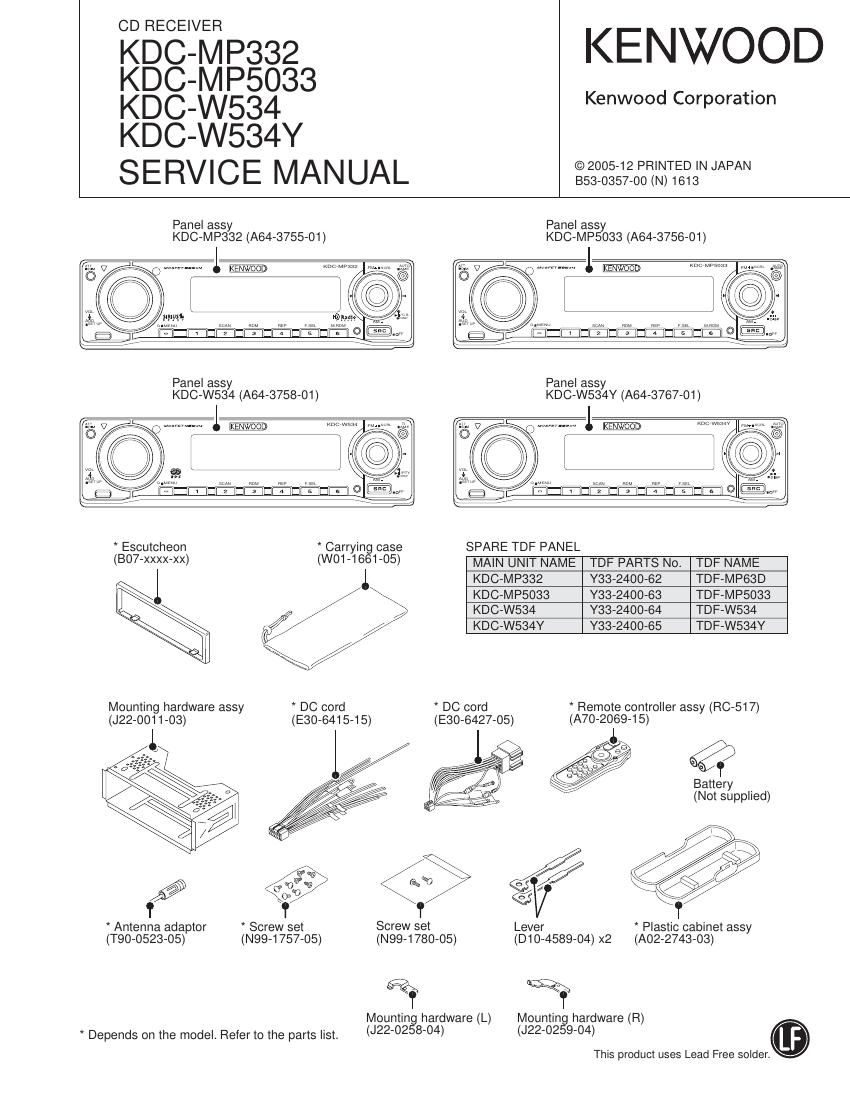

This is the 40 pages manual for Kenwood KDCMP 332 Service Manual.
Read or download the pdf for free.
If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.
KDC-M P332/M P5033
KDC-W534/W534Y
MICROCOMPUTERS TERMINAL DESCRIPTION
0 SYSTEM LL-com: |C1 on X34- (ELECTRIC UNIT)
Pin No. Pin Name l/O Application 2:15:19 Processing / Operation / Description
1 DOERR | DC offset error detection input
2 LINE MUTE | Phone detection TEL MUTE: 1V or lower, NAVI MUTE: 2.5V or higher
3 ROTARY CW | Rotary encoder input Caution when the panel is flipped down
4 AVSS -
5 TUN TYPE1 | E-VOL setting switching (1) Refer to the truth value table
6 TUN TYPE2 | E-VOL setting switching (1) Refer to the truth value table
7 AVREF1 -
8 VFD DATAF | Data input from VFD
9 VFD DATAS l/O Data input/output from or to VFD
1O VFD CLK O Clock output to VFD
11 m 0 Reset to VFD L: Reset, H: Normal, L: While momentary power down
12 VFD CE 0 Chip-enable output to VFD
13 ROTARY CCW | Rotary encoder input Caution when the panel is flipped down
14 1% I Flip-down panel detection H: PANEL released, L: PANEL attached
15 PWIO BEEP O Beep output
16 LX DATA S | Data from slave unit
17 LX DATA M 0 Data to slave unit
18 LX CLK |/O LX-BUS clock
19 RDS AFSL 0 Tuner RDS mute output 2 (2) Refer to the truth value table
When ADJ=H
2O TUN ADJ | For |C10 adjustment
PS1-1,2=L, PS1-3=Hi-z, PSZ-1,2=Hi-Z,TUN DATA,CLK=Hi-Z
21 TUN SD | Tuner search stop input H: Station tound, L: Station not found
22 LX RST O Forced-reset to slave unit H: Reset, L: Normal
23 LX CON 0 Start-up request to slave unit H: Slave unit ON, L: Slave unit OFF
24 LX REQ M 0 Communication request to the slave unit
25 AUD SDA l/O Tuner & Vol |2C data input/output
26 AUD SOL l/O Tuner & Vol IZC clock output
27 PWIC STBY 0 Power IC standby output H: POWER IC ON, L: POWER IC OFF
28 VOL MUTE O E-VOL mute output Low: MUTE OFF, Hi-z: ON
29 W 0 Power IC mute output L: POWER OFF, STANDBY, or TEL MUTE
30 TUN FANC OUT 0 Tuner block (in p-com) check L: E2P OK, H: E2P NG
31 RESET2 O Mute for reset Outputs L
32 RDS DATA | RDS decoder data input
33 VSS1 -
34 RDS QUAL | RDS decoder qualification input
35 W I ACC detection L: ACC ON, H: ACC OFF
36 W | Momentary power down detection L: BU found, H: BU not found (momentary power down)
37 Fm l/O SW5V/SW14V control ON: L, OFF: Hi-Z
