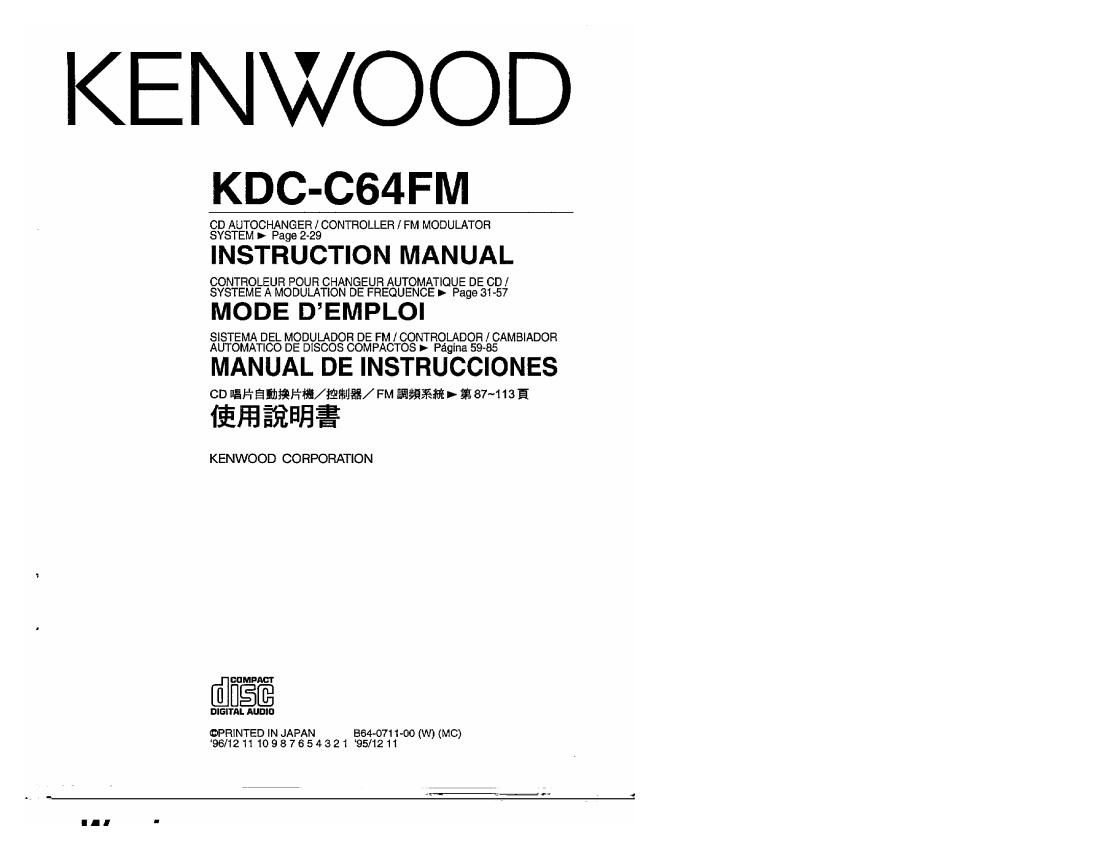

Kenwood KDCC 64 FM Owners Manual
This is the 29 pages manual for Kenwood KDCC 64 FM Owners Manual.
Read or download the pdf for free.
If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.
Extracted text from Kenwood KDCC 64 FM Owners Manual (Ocr-read)
Page 2
Contents
Before use
Warning ..................
Safety precautions.
Handling compact discs ..
Features ......................
Loading compact discs.
Disc changer control features
CD play with CD auto-changer"
Track/Disc search ..........
Direct track/disc search.
Track repeat...
Disc repeat..
Track scan
Disc scan ..
Disc random p ay.
Magazine random play.
Installation
Accessories .....
Changing the transmission frequency
Modulation level/Dynamic control ......
Installation procedure....
Attaching the dust cover ..
Connections. ..23
Installation .................................. 24
Troubleshooting guide.. ....................................... 27
Specifications ............................................... 29
2 English
I H
m
Page 29
Specifications
Specifications subject to change without notice,
Disc Section
Laser Diode. GaAlAs (#780 nm)
Digital Filter (D 8 Wmes Over Sampling
D/A Converter. 1 bit
Spindle speed 500 ~ 200 rpm (CLV)
Wow & Flutter. Below Measurable Limit
Modulating Frequency (2 87.7. 87.9, 88.1.1383,
88.5, 88.7, 88.9, 89.1,
89.3, 89.5, 89.7, 89.9 MHz
General
Operating Voltage... 14.4 V (11 ~ )6 V)
Current consumption. 4 A
Operating Temperature .-10 ~ 50 °C
Size (W x H x D)
(CD changer)281 x 76 x 171 mm
(11-1/16 X 3 x6-3/4 in.)
(Controller) 54 x 85 x 5 mm
(24/8 x 3-3/8x 3/16 in.)
(Display unlt) ................. ...105 x40 x18 mm
(4-1/8 x1-9/16 x (1/16 in.)
(RF modulator unit) ..,150 x 30 x120 mm
(5-7/8 X 18/16 x 4-3/4 in.)
Weight
(CD changer). .3.0 kg (6.6 lbs)
(Controller) 0.028 kg (0.06 lbs)
(Display unit) .125 kg (0.28 lbs)
(RF modulator unit) .0845 kg (1.42 lbs)
English 29
