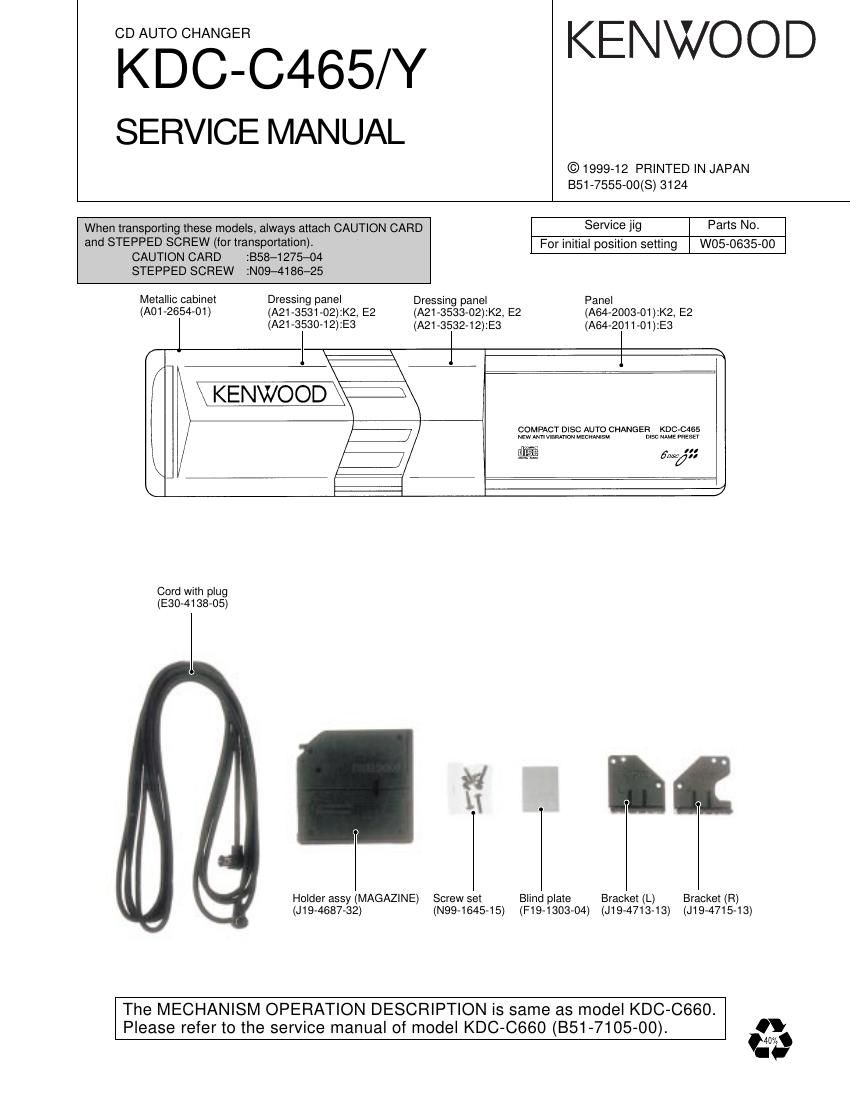

CD AUTO CHANGER
KDC-C465/Y
SERVICE MANUAL
KENWOOD
© 1999-12 PRINTED IN JAPAN
BS1-7555-00(S) 3124
When transporting these models, always attach CAUTION CARD
and STEPPED SCREW (for transportation).
CAUTION CARD :858-1275-04
STEPPED SCREW :N09-4186-25
Metallic cabinet
(A01 ~2654-01)
Dressing panel
(A21-3531-02):K2, E2
(A21 -3530-1 2):E3
Parts No.
W05-0635-00
Service jig
For initial position setting
Dressing panel Panel
(A21 -3533-02):K2, E2
(A21 ~3532-1 2):E3
(A64-2003-01):K2, E2
(A64-2011-01):E3
I I
KERN/000%
COMPACT DISC AUTO CHANGER KDC»9465
new mu mama»: MECNANISM DISC um: vnsszr
was my:
5/
Cord with plug
(E30-4138-05)
(J19-4687-32)
I M
\I
Holder assy (MAGAZINE) Screw set
(N99-1645-15)
Blind plate Bracket (L) Bracket (R)
(F19-1303-04) (J19-4713-13) (J19-4715-13)
The MECHANISM OPERATION DESCRIPTION is same as model KDC-CGBO.
Please refer to the service manual of model KDC-CGGO (851-7105-00).
