Kenwood KDC 93 R Owners Manual

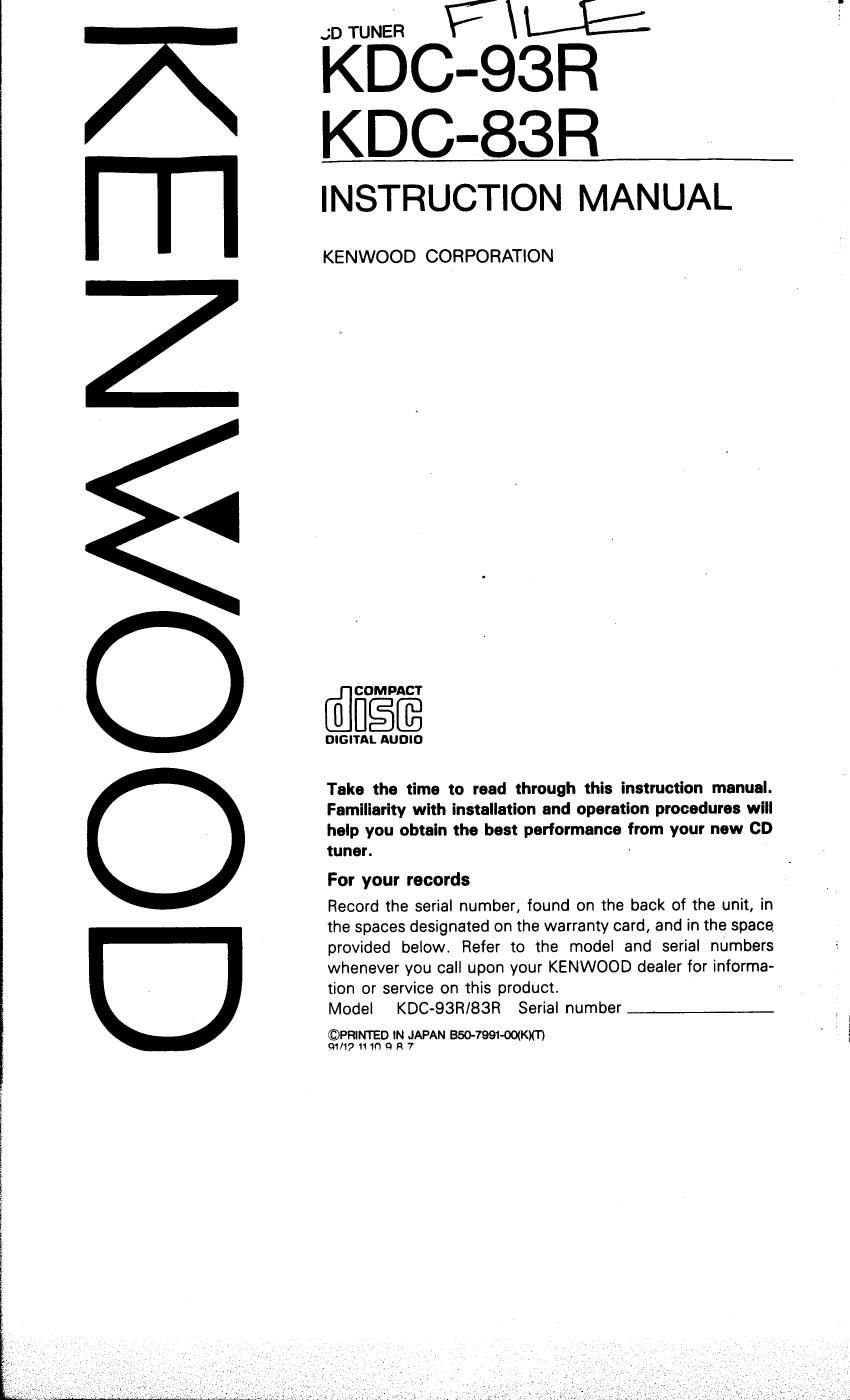

Page 1

I../Y\N3>l

mote:
KDC-93R

KDC-83R
INSTRUCTION MANUAL

KENWOOD CORPORATION

[filfigfi

DIGITAL AUDIO

Take the time to read through this instruction manual.
Familiarity with installation and operation procedures will
help you obtain the best performance from your new CD
tuner. -

For your records

Record the serial number, found on the back of the unit, in
the spaces designated on the warranty card, and in the space
provided below. Refer to the model and serial numbers
whenever you call upon your KENWOOD dealer for informa-
tion or service on this product.

Model KDC-93Rl83R Serial number

©PRINTED IN JAPAN 350-7991me ' ,
01/1? 10 a a 7

Page 2

CONTENTS '

fl

Page
BEFORE USE ........................................................................ 6
POWER, VOLUME AND LOUDNESS ......................................... 8
AUDIO CONTROL .................................................................. 9
SEEK TUNING ....................................................................... 1O
MANUAL TUNING ................................................................. 11
DIRECT ACCESS TUNING ............................................... . ........ 1 2
PRESET STATION TUNING ...................................................... 13
AUTO MEMORY .................................................................... 14
COMPACT DISC PLAY ............................................................ 15
TRACK SEARCH & DIRECT TRACK SEARCH .............................. 16
RAN DOM PLAY & REPEAT PLAY ............................................. 17
TRACK SCAN ....................................................................... 18
SELECTABLE ILLUMINATION ................................................ ,.. 19
INSERTION/REMOVAL OF UNIT ............................................... 20
CHANNEL SPACE SELECTION ............... L ................................. 21
CARE AND MAINTENANCE ..................................................... 22
INSTALLATION ................................................. ; ................... 23
ACCESSORIES (KDC-93R) ................................................. _ ...... 24
CONNECTIONS (KDC-93RI ...................................................... 25
INSTALLATION (KDC-93R) ...................................................... 26
ACCESSORIES (KDC-83R) ....................................................... 27
CONNECTIONS (KDC-83R) ...................................................... 28
INSTALLATION (KDC-83R) ...................................................... 29
TROUBLESHOOTING GUIDE .................................................... 31
SPECIFICATIONS ................................................................... 32
