Kenwood KDC 6005 Owners Manual

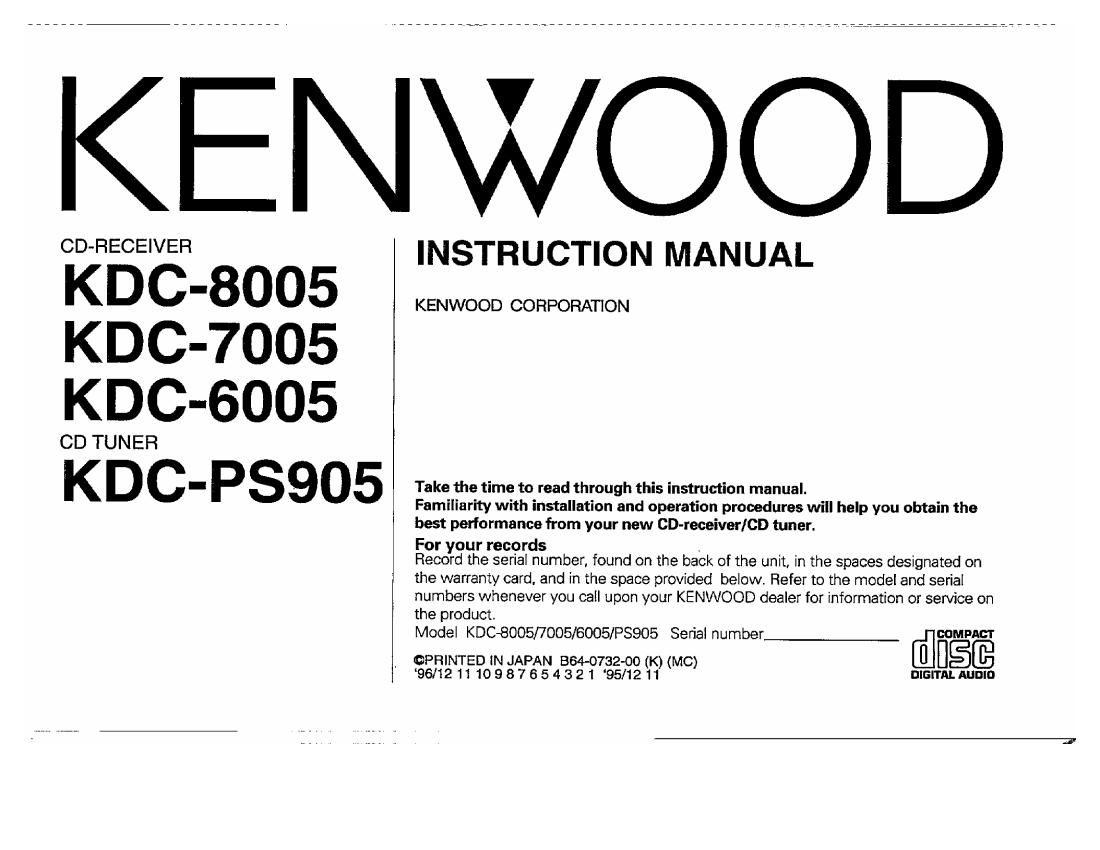

Page 1

KENWOOD

CD-RECE'VER INSTRUCTION MANUAL

KDC-8005 KENooow cooooooNoA
KDC-7005
KDC-6005

CD TUNER

K D C - P S 9 05 Take the time to read through this instruction manual.

Familiarity with installation and operation procedures will help you obtain the
best performance from your new CD-receiver/CD tuner.

For your records .

Record the serial number, found on the back of the unit. in the spaces designated on
the warranty card. and in the space provided below. Refer to the model and serial
numbers whenever you call upon your KENWOOD dealer for information or service on
the product.

Model KDC-8005/7005/6005/P8905 Serial number_ WMPACT

OPHINTED IN JAPAN 364-0732-00 (K) (MC)
96/1211 10987654321 95/1211 DIGITALAIJDID

Page 2

Before use
Wa rn in ............................................................................. 3

Safety recautions ....... ...4
Handling Compact Discs ...7
Features ............. e......8
Basic operations

Power................................................. ....................... ..12
Volume...

Attenuator.

Loudness ......

Attenuator GaIn Selection

Basic operations of remote ....................................... 14
Tuner features

Tuning ............................................................................... 16
Station Preset Memory... .17
Auto Memory Entry ........... .17
Clean reception System Cir .17
Frequency Step Setting ..................... .18
Direct Access Tuning ...................................... .....19
CD player features

Playing CDs ...................................................................... 20

Fast FonNarding and Reversing Disc Play.
Track Search .......................

Fast Forwarding and Reversing Disc Play ..................... 25
Switching Display for Discs ..
Track Search ...............
Disc Search.
Track/Disc Rep .
Track Scan ...............
Direct Track Search.
Direct Disc Search...
Disc Scan ...........
Random Play ..............
Magazine Random Play. ..
Presetting Disc Names .................................................... 32

Other features

Audio Control Setting ..............................................
Selectable lllumination..
Display Type ......
Switching Preou .....
Non«Fadin Preout..
Clock Disp ay ........
Adjusting Time ........
Disabled System lndIcator (DSI)...
Output Voltage Selection ....... .
Theft Deterrent Faceplate ................................................ 39

Installation
Accesso ries ....................................................................... 4D

Track Repeat... ----21 Installation Procedure. ..41
Random Play "21 Connecting Wires to Terminal . . .42
Track Scan .......... 22 Installation ........................................................................ 44
Direct Ttrack Sear .........23

Troubleshooting Guide ............................................... 47
Disc changer control features
Playing Discs Using a Disc Changer ............................... 24 Specifications ............................................................... 51

2 English

Page 18

Function of the KDC-P8905

Frequency Step Setting

Switch the frequency step used in seeks. The factory
TUN/PWR OFF defaults are 200 kHz for FM and 10 kHz for AM.

1 Turn the power off.

2 While pressing buttons #1 and #5 at the same time. press
the TUN button.
The frequency step settings will be changed to 50 kHz for
FM and 9 kHz for AM.

When you change the frequency step settmgs. all memory con-
tents will be erased,

Returning Frequency Step Settings to Original Values:
Repeat steps 1 and 2 above.
