Kenwood KD CPS 907 Owners Manual

Page 1

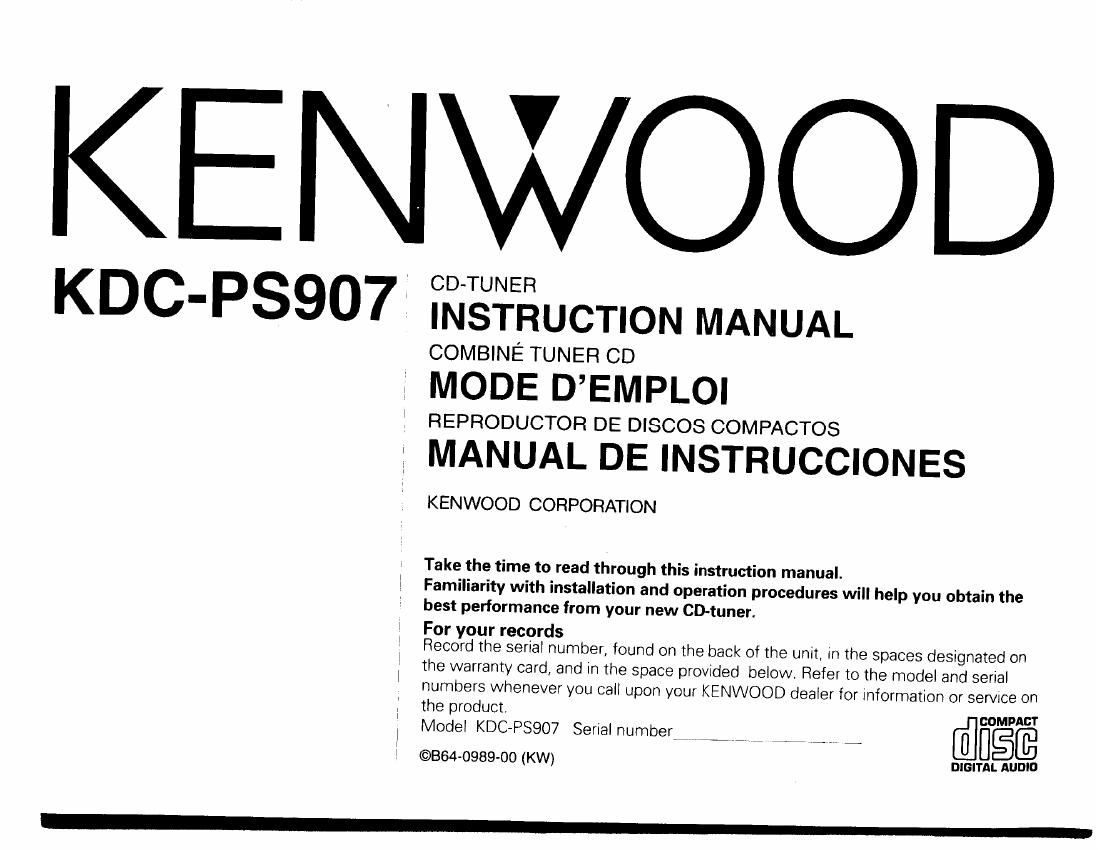

KENWOOD

KDC-P3907 llleSU'rl'EEUCTION MANUAL

COMBINE TUNER CD

MODE DEMPLOI

REPRODUCTOR DE DISCOS COMPACTOS

MANUAL DE INSTRUCCIONES

KENWOOD CORPORATION

Take the time to read through this instruction manual.
Familiarity with installation and operation procedures will help you obtain the
best performance from your new CD-tuner.
For your records
Record the serial number, found on the back of the unit, in the spaces designated on
the warranty card, and in the space provided below. Refer to the model and serial
numbers whenever you call upon your KENWOOD dealer for information or servrce on
r the product. COMPACT
Model KDC-PSQO7 Serial numberv

I m film

i ©BG4-0989-00 (KW) DIGITAL AUDIO

-

Page 2

English

Contents

Before use
Warning .................................................
Safety precautions
Handling Compact discs.
Buttons and Display ...................

Basic operations
Stealth Retraction Mechanism .......................................
Volume ..................................
Attenuator ..................... .
Attenuator Gain Selection.
Loudness ...............................................

Basic operations of remote ........................................ 14
Tuner features
Tuning ............................................... .,15
Switching Display for Tuner .. .16
Direct Access Tuning ......... 16
Station Preset Memory .16
Auto Memory Entry ........... .16
Station Name Preset (SNPS) ..... .17
Station Name Preset Play (SNPP) ............... .18
Clean Reception System Circuit ICRSC) .18
Frequency Step Setting .............................................................. 18
RBDS features
RBDS (Radio Broadcast Data System) .....................
Alarm .................
Radio Text ..........
Traffic Information Function .
Program Type (PTY) Function ...................
CD player features
Playing CDs .......................................................................... 21
Swnching Display for CDs ........................ . ....... 22
Fast Forwarding and Reversing Disc Play. ....... 22
Track Search ........ .. -22
Direct Track Searc .. 22
Track Repeat ...... ....22
Track Scan ............................................................................. 23

Random Play .............................................................................. 23
Disc changer control features
Playing Discs Using a Disc Changer ........................................... 23
Fast Forwarding and Reversing Disc Play. .23
Switching Display for Discs .................... .24
Track Search .................... . ..24
Direct Track Search. .......... . 24
Disc search ....... 24

Direct Disc Sear
Track /Disc Repeat ..
Random Play ..............
Magazine Random Play.

Track Scan ..................... 26
Disc Scan .......................... .26
Presetting Disc Names ........... ...27
Disc Name Preset Play (DNPP) .............................................. 28
Other features
Audio Control Setting . ........... 28
Table of Audio Control Setting .29
Clock Display ........................ .29
Adjusting Time ........ .. . ...... 29
Selectable Illumination . .. .. 30
Non-fading Preout... .. . .. .. . ........ ..30
Balanced Output ......... .30
Security Code... , 30
Valet Mode .................................. . .................................... 31
Installation
Accessories... .. . .. ................................... 32
Installation Procedure. ..... ..32
Connecting Wires to Terminals... .. .. .33
Installation (non-Japanese cars) ........ . . . ....... 34
Installation (Japanese-cars) .......... .34
Removing the Unit .......................................................... 36
Troubleshooting Guide ............................................... 37
Specifications ............................................................. 4O

Page 14

Basic operations of remote (See page)

Do not set the remote on hot places such as above the
dashboard.

Replacing the Lithium Battery:
Use one lithium battery (CR2025).
Remove the case following the instructions as illustrated

English

To open
(1) Keep on slide

@ Pull out

Insert the battery with the + and - poles aligned properly,
followmg the illustration inSide the case.

Store unused lithium batteries out of the reach of children.
Contact a doctor immediately it the battery is accidentally
swallowed.

All Modes

- VOL buttons
Press the A button to turn the volume up.
Press the V button to turn the volume down.

' TUNER button
Selects the tuner mode. Pressing this button again selects the
standby mode.

0 CD button
Selects the CD mode.

- CDoMD CH button
Selects the disc changer mode. When two disc changers are
connected to the unit, the disc changer mode Will be split into
disc changer mode 1 and disc changer mode 2, and each press

14

of this button switches between them.

The KCA-SZOO, which is sold separately, must be used when two
disc changer units are connected

When the KDCACBl O is the directly connected disc changer (disc
changer t), two units may be controlled even Without the KCA~
$200.

- Number/ letter entry buttons
Press buttons #16 to recall preset stations. .
During direct access tuning, use these buttons to input the
frequency of the station
Use to enter letters (alphabetical) during station name preset.

- TUNE buttons
Press the TUNE~ button to make decreasing seeks (usmg the
preset tuning model.
Press the TUNE+ button to make increasmg seeks (using the
preset tuning mode).
Use to move the cursor left or right during station name input.

- AM/FM button
Press the AM button to select the AM band
Press the FM button to select and swnch between FMl, FMZ,
and Flvl3 bands,
During station name input, selects digits and symbols.

- DIRECT/OK button
Selects the direct access tuning mode, used to input
trequencres directly Press this button again to cancel the mode
while it is operating.
During station name input. stores the already input data in
memory and ends the input mode.
During Station name preset play mode, selects station.

- DNPP button
Enters and cancels the Station Name Preset Play moce

Page 28

Other features (See page 10/

.5, Selectable Illumination monaural (mono) sounds during balanced output.
% You can switch the setting of the button illumination between UNBALANCED BALANCED
: green and amber, or turn the illumination off. ,.
"-1 FRONT L? L?" 9
Switching the illumination: 7 7 Wm R'QhPE-J
Press the lLLUM button for at least one second to swrtch the REAR Left Left (t)
illumination setting as follows: i_¥» h9h1,... ,, Right 9:? . M
1 Left Monaural (e
Green NON'FADING Right Monaural (7)
Y
Anwber You can switch between balanced and unbalanced output by
Light Off repeating steps 1 and 2 above.
_r
- The audio control returns to factory default settings each time
_ . you switch between balanced and unbalanced output.
"on fadlng Preout - The non-fading output/ balanced monaural output setting turns
The non-fading sound output can be set to either ON or OFF. ON each time you swrtch the output between balanced and
The factory default is set to ON. unbalanced.
Turning non-fading output On/Off: Turning monaural output ON/OFF: _
Press the NF button for at least one second to set the function Press the NF button for at 335 one second to set the fUHCT'O'
ON or OFF. ON or OFF; ,
"NF ON" is displayed when the n0n_fadjng output ,3 set ON SUB ON IS displayed when the monaural output lS set ON.
Balanced Output Seourlty c°d9
You can change preouts to balanced outputs, which allows When the battery '5 remoyed "9' the h'tls power swrtch,
you to reduce noise it the amplifier being connected has you cannot turn 9 the 9" again unless the preset security
balanced input. code is input. This function helps prevent theft.
The balanced monaural sound output can be set to either 0N
or OFF. The factory default is set to ON. Haj .
You must follow steps 1 to 7 to be able to use the Code Security
Switching balanced/unbalanced output: function Turning off the power during the procedure will
1 Press the TUN button repeatedly and swrtch the display to deactivate the SBCWW code SBIWQ»
ALL OFF"10 enter the standby mode. You cannot turn off the function after haying completed these
ste .
2 Press the #3 button for at least three seconds. ps .
Balanced output is selected when "BALANCED" appears In the 1 SCIGCT the low dlglls 10 USS In Your security code
display.
.. ISfiIrporrLt/rearlwdutpéit EarliiaorlijtPnthequfifiihahnefi during The tour-dlolt security code IS very Important. as you Will need It

Page 32

Installation (non-Japanese cars) Installation (Japanese-cars)

I Installation I Removing the hard rubber frame

1 Insert the removal tool@ deeply with the cut placed to the

Elewa 0' mew' SUPPO right to remove the upper looks at an angle as shown below,

Lock

English

Accessorytg)

Accessorylér
Bend the tabs of the Removal tool

/,//" mounting sleeve Wlth a
Philllps truss \ sc'ewfr'vgr or STU?" 2 Engage the catches on the removal tooltg; and remove the tv
head sheet AccessoryQ) LIIers' 3 an 't locks on the lower level, leaving the removal tooltéj inserted (
metal screw pace the upper level
(commerCIally Lower the frame and pull rt forward as shown In the figure.
available) , \

Make sure that the unit is installed securely ln place. lf the unit is
unstable, it may malfunction (for example, the sound may skip).

Accessoryt'g) . v,,,,,,fl,;:r:.\t ,
Removal tool Lock

You will feel (not hear) a click when the tabs lock securely

Page 35

3 Troubleshooting Guide

What might seem to be a malfunction in your unit may just be the result of slight misoperation or miswiring. Before
calling service, first check the following table for possible problems.

PROBLEM

POSSIBLE CAUSE

SOLUTION

The power does not turn on.

The fuse has blown.

After checking for short circuits in the wires, replace the
fuse With one with the same rating.

No sound can be heard, or the
volume is low.

Attenuator is turned on.

Turn off Attenuator.

The fader or balance settings are set all the way to one
Side.

Reset the fader or balance settings

The input/output wires or wiring harness are connected
incorrectly.

Reconnect the input/output Wires or the wiring harness
correctly See the section on "Connecting Wires to
Terminals"

The unbalanced/balanced setting of preouts have not
corresponded with the setting of your amplifier

Check both the settings.

Nothing happens when the
buttons are pressed,

The computer chip in the unit is not functioning normally.

Press the RESET button on the unit (see p. 6).

The sound quality is poor or
distorted.

One of the speaker wires is being pinched by a screw in
the car.

Check the speaker wiring

The speakers are not wired correctly.

Reconnect the speaker wires so that each output terminal is
connected to a different speaker.

Radio reception is poor.

The car antenna is not extended.

Pull the antenna out all the way.

The antenna control WIre is not connected.

Connect the wire correctly, referring to the section on
"Connecting Wires to Terminals".

The memory is erased when
the ignition is turned off.

The battery wire has not been connected to the proper
terminal.

Connect the wire correctly, referring to the section on
"Connecting Wires to Terminals".

The faceplate does not open or
dose.

The ambient temperature is too low.

Warm up your car.

The valet mode is ON.

Turn off the valet mode.

The beep does not sound from
rear preout.

The beep sound can be output only from front preout
