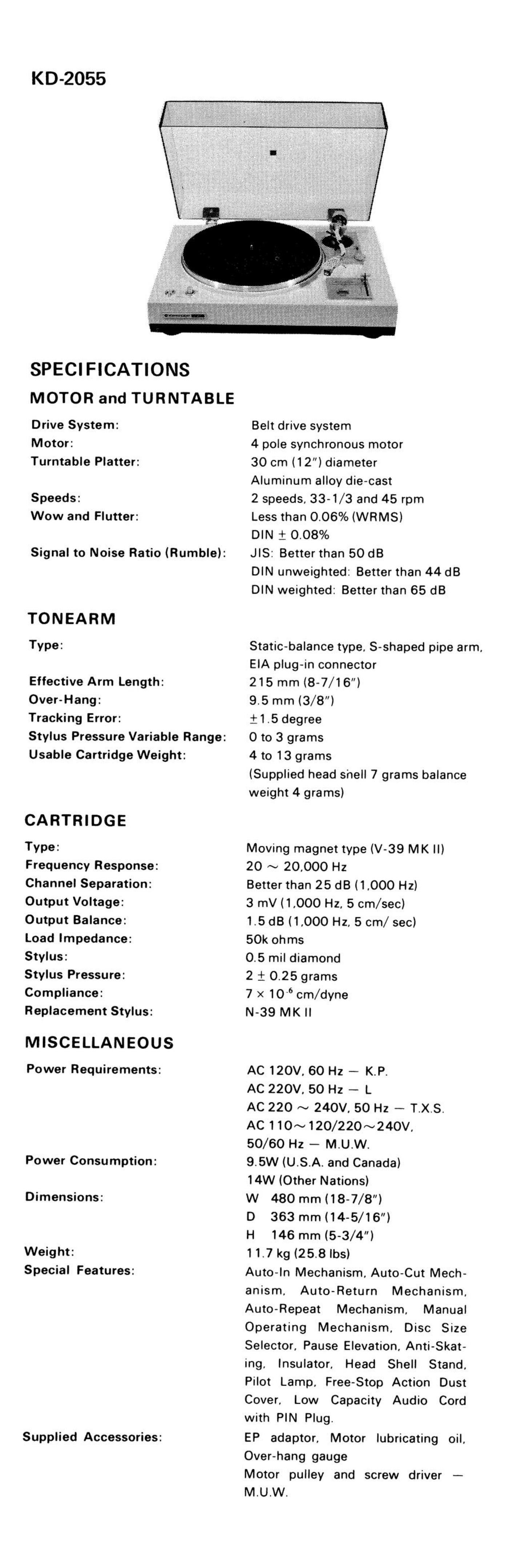

KD-2055
SPECIFICATIONS
MOTOR and TURNTABLE
Drive System:
Motor:
Turntable Platter:
Speeds:
Wow and Flutter:
Signal to Noise Ratio (Rumble):
TONEARM
Type:
Effective Arm Length:
Over-Hang:
Tracking Error:
Stylus Pressure Variable Range:
Usable Cartridge Weight:
CARTRIDGE
Type:
Frequency Response:
Channel Separation:
Output Voltage:
Output Balance:
Load Impedance:
Stylus:
Stylus Pressure:
Compliance:
Replacement Stylus:
MISCELLANEOUS
Power Requirements:
Power Consumption:
Dimensions:
Weight:
Special Features:
Supplied Accessories:
Belt drive system
4 pole synchronous motor
30 cm (12) diameter
Aluminum alloy die-cast
2 speeds, 33-1/3 and 45 rpm
Less than 0.06% (WRMS)
DIN i 0.08%
JIS: Better than 50 dB
DIN unweighted: Better than 44 dB
DIN weighted: Better than 65 dB
Static-balance type. S-shaped pipe arm.
EIA plug~in connector
215 mm (8-7/16)
9.5 mm (3/8)
i1.5 degree
0 to 3 grams
4 to 13 grams
(Supplied head shell 7 grams balance
weight 4 grams)
Moving magnet type (V-39 MK II)
20 ~ 20,000 Hz
Better than 25 dB (1.000 H2)
3 mV (1,000 Hz, 5 cm/sec)
1.5 dB (1,000 Hz, 5 cm/ sec)
50k ohms
0.5 mil diamond
2 i 0.25 grams
7 X 10° cm/dyne
N-39 MK II
AC 120V. 60 Hz - K.P.
AC 220V. 50 Hz - L
AC 220 ~ 240V, 50 Hz - T.X.S.
AC 110~120/220~240V.
50/60 Hz - M.U.W.
9.5W (USA. and Canada)
14W (Other Nations)
W 480 mm(18-7/8)
D 363 mm(14-5/16)
H 146 mm (5-3/4")
11.7 kg (25.8 lbs)
Auto-In Mechanism. Auto-Cut Mech-
anism, Auto-Return Mechanism,
Auto-Repeat Mechanism, Manual
Operating Mechanism, Disc Size
Selector, Pause Elevation, Anti-Skat-
ing. Insulator. Head Shell Stand.
Pilot Lamp. Free-Stop Action Dust
Cover. Low Capacity Audio Cord
with PIN Plug.
EP adaptor, Motor lubricating oil.
Over-hang gauge
Motor pulley and screw driver --
M.U.W.
