Kenwood KACPS 300 T Owners Manual

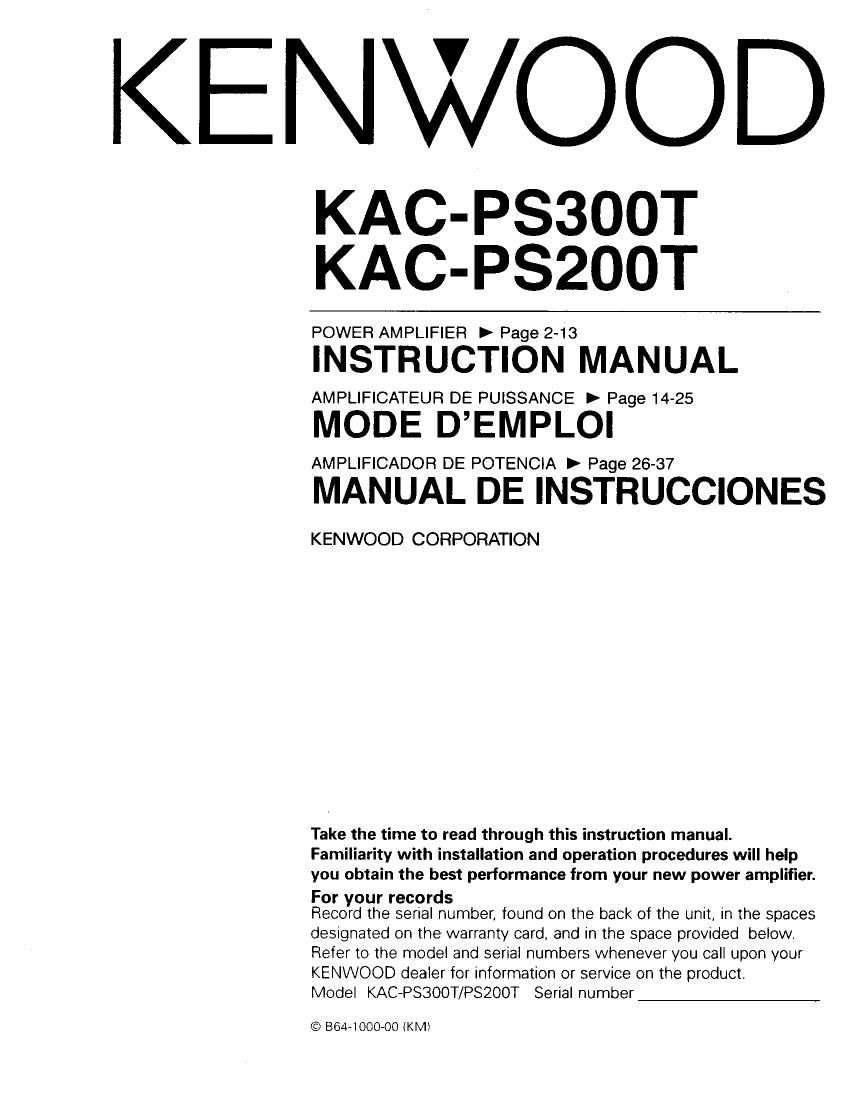

Page 1

KENWOOD

KAC-PS3OOT
KAC-PSZOOT

POWER AMPLIFIER > Page 2-13

INSTRUCTION MANUAL

AMPLIFICATEUR DE PUlSSANCE > Page 14-25

MODE DEMPLOI

AMPLIFICADOR DE POTENCIA > Page 26-37

MANUAL DE INSTRUCCIONES

KENWOOD CORPORATION

Take the time to read through this instruction manual.
Familiarity with installation and operation procedures will help
you obtain the best performance from your new power amplifier.
For your records

Record the serial number, found on the back of the unit, in the spaces
designated on the warranty card, and in the space provided below.
Refer to the model and serial numbers whenever you call upon your
KENWOOD dealer for information or service on the product.

Model KAC-PS3OOT/PSZOOT Serial number

© 8644 000-00 (KM)

Page 2

Safety precautions

AWARNING

Take the following precautions to
prevent fire and avoid personal
injury :

OWhen extending the battery cable, or
ground cable, use 5mm (AWGlO) or
larger automotive grade cable to av0id
cable deterioration or damage to the
covering

OCheck that no metal objects (coins, tools,
etc.) are left inside the unit to avoid short
circuits.

0 If you smell or see smoke, turn the power
off immediately and consult your
Kenwood dealer.

0Do not touch the unit during use because
the surface of the unit becomes hot and
may cause burns if touched.

ACAUTION

Take the following precautions to
keep the unit in proper working
order.

- Be sure the unit is connected to a 12V DC
power supply with a negative ground
connection.

0 Do not open the top or bottom cover.

- Do not install the unit in places it is
exposed to direct sunlight, high heat or
humidity, water may splash over it, or
dust exists.

Accessories

NOTE

0 If you have difficulty in installing this unit
in your vehicle, contact your Kenwood
dealer.

Cleaning the unit

0 If the surface is dirty, wipe it clean with a
silicon cloth or soft dry cloth with the
power off.

ACAUTION

Do not use hard cloths or paint thinner,
alcohol, or other volatile solvents. These
may damage external surfaces or remove
indicator characters.

FCC WARNING

This equipment may generate or use radio
frequency energy. Changes or
modifications to this equipment may cause
harmful interference unless the
modifications are expressly approved in the
instruction manual. The user could lose the
authority to operate this equipment if an
unauthorized change or modification is
made.

Part name

Number
of Items

External
View

Self»tapping screws
lo5 x 18mm)

Terminal cover
(Power terminal)
