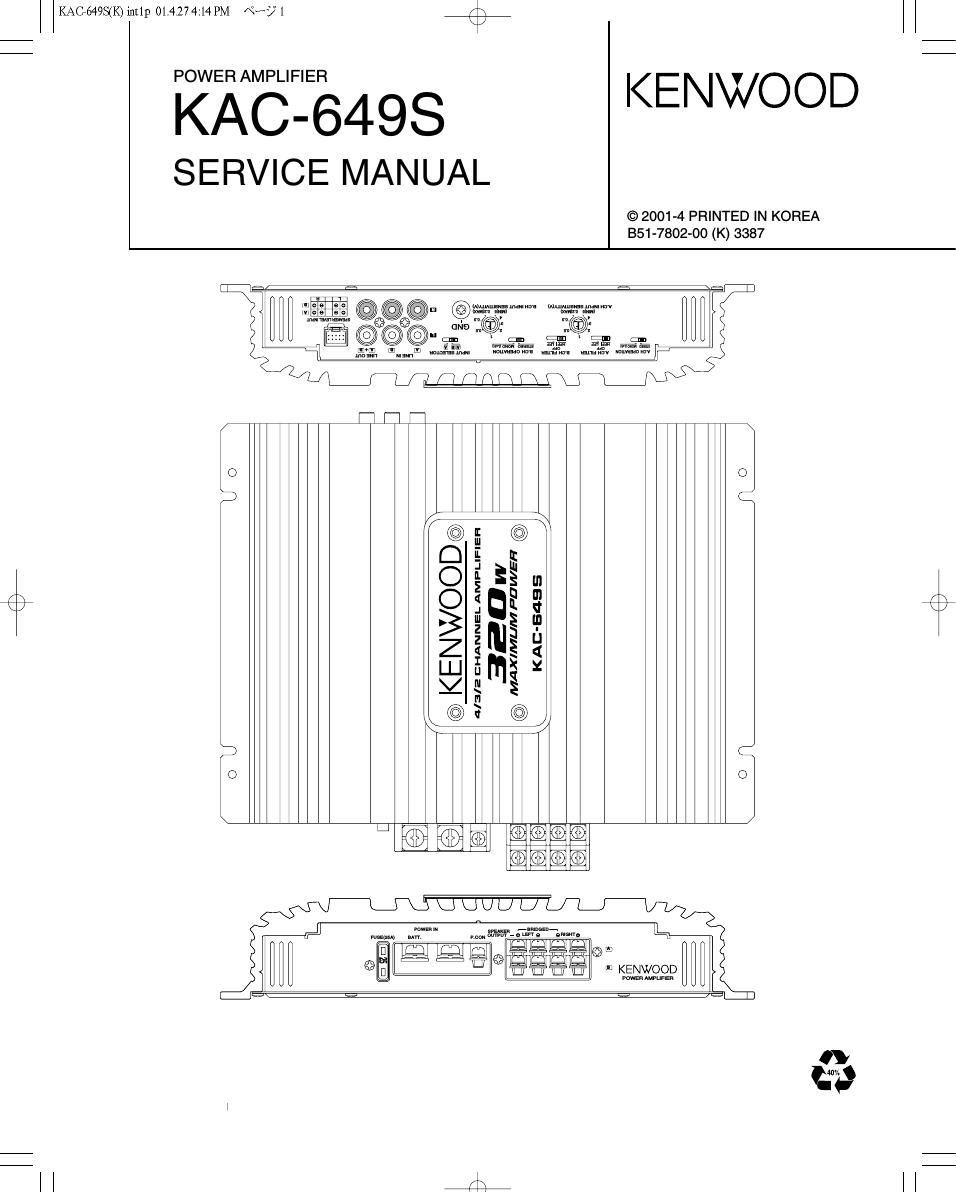

Kenwood KAC 649 S Service Manual

Page 2

r\
\/

KAC7649S(K)iut1p 01.4.27 4:14PM «Ks/7.

KAC-6498

/\
\/

COMPONENT DESCRIPTION

AUDIO UNIT (X09-5420-10)

REF. No. FUNCTION OPERATION
01-4 MUTE Decreases shock noise in first moment when P.CON. turns on or off.
05-12 DIFFERENTIAL AMPLIFIER

Q13 RIPPLE FILTER

014-17 DIFFERENTIAL AMPLIFIER

018-21 TEMPERATURE COMPENSATION Detects temperature of the heat sink, and protects bias current driI't.
022-29 OVER-CURRENT PROTECTION Detects over-current, and limits the power stage current.

Q30-37 POWER AMPLIFIER DRIVER

038-45 POWER STAGE

Q46 P.CON. DETECTION

Detects P.CON-ON. and turns 047 on or off.

Q47 POWER SWITCH

Supplies power to l05.

Q48 MUTE ON/OFF

Turns Q49 on or off.

Q49 MUTE DRIVER

050,51 SWITCHING POWER STAGE

Q52 OVER-CURRENT PROTECTION

The detected over-current stops IC5'5 working.

Q53 OVER-VOLTAGE PROTECTION

When over-voltage puts on BATT, 053 turns P.CON. off.

IC3,4 (2/2) : INVERTER

054.55 CONSTANT VOLTAGE POWER SUPPLY Supplies + and - 15v power.
056,57 SWITCHING DRIVER
058-61 DIFFERENTIAL AMPLIFIER
IC1,2 INPUT BUFFER/ ISOLATION AMPLIFIER Makes a" '"pm s'gna'. 6 m°.'e dB 5'9"
and cancels automobile neise.
33,4 Ic3,4 (1/2) ; LPF

ICS SWITCHING REGULATOR

Oscillator for DC/DC converter.

Page 11

r\
\/

KAC7649S(K)iut1p 01.4.27 4:14 PM «3? 12

KAC-6498

SPECIFICATIONS

Audio Section
Rated Power Output (49)
A, B Channel (20-20KHZ, 0.08% THD)....
A, B Channel (DIN45324, +B=14.4V) ......
Rated Power Output (29)

A, B Channel (1 KHz, 0.8% THD) ....................
Bridged Power Output (49, 1KHz, 0.8% THD) ..
Max Power Output (49, Normal) ...........................

Max Power Output (49, Bridge) .....................
Low Pass Filter (A, B channel, 12dB/oct.) .....

High Pass Filter (A, B channel, 12dB/oct.) .............

Frequency Response (+0, -3dB)....
Signal to Noise Ratio .....................

Sensitivity (Max) (rated output) ..............................

Sensitivity (Min) (rated output)
Input Impedance ........................

General
Operating Voltage (11V-16V allowable) ......
Current Consumption (1KHz, 10% THD)....

Installation Size (Width x Height x Depth) ..............
Weight ....................................................................

..... 30WX4
..... 30Wx4

..... 40WX4
..... 80WX2

.............................................. 60WX4

..... 160W X 2
..... 80Hz

.............................................. 150Hz

..... 5H2 » 50KHz
..... 100dB

.............................................. 0.2V

..... 5.0V
..... 10KQ

..... 14.4V
..... 18A

.............................................. 261 mm x 57mm x 220mm
.............................................. 3.0Kg

KENWOOD follows a policy of continuous advancements in development. For this reason specifications may be changed without notice.
