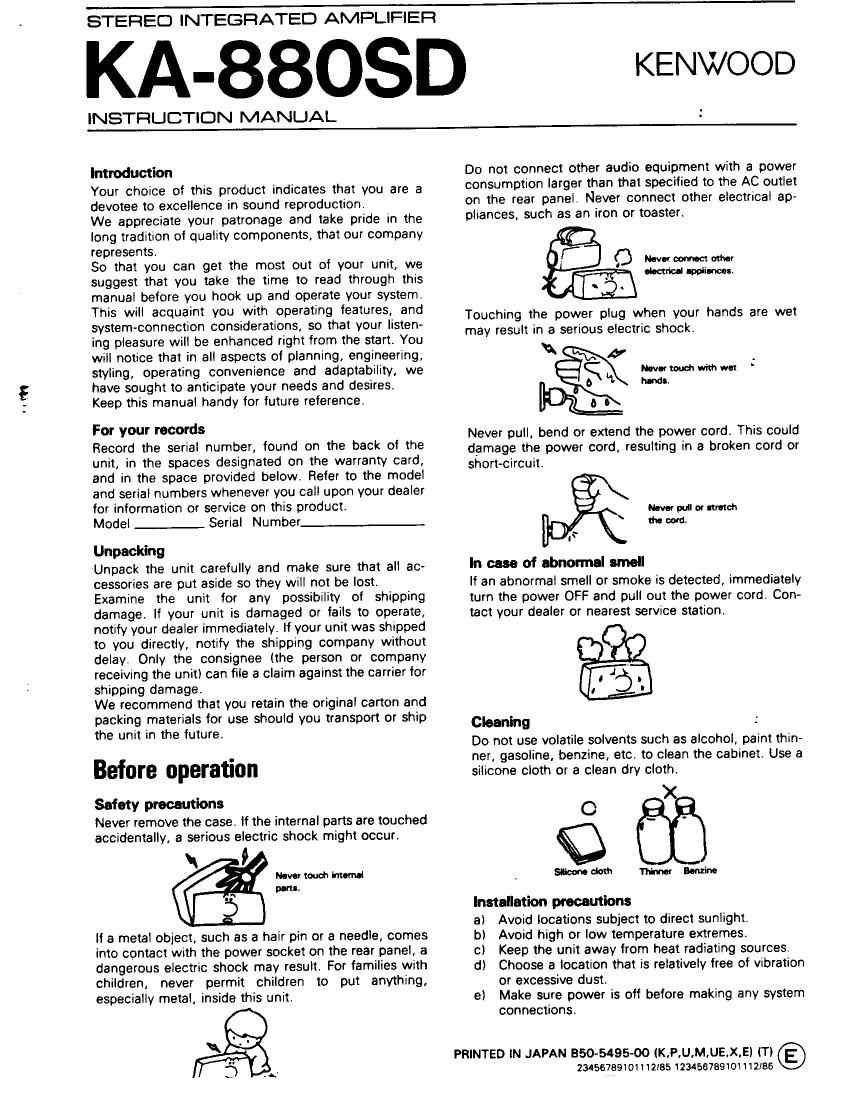

STEFIECJ INTEGRATED AMPLIFIER

KA- 805D

INSTRUCTION MANUAL

KENWOOD

Introduction

Your choice of this product indicates that you are a
devotee to excellence in sound reproduction.

We appreciate your patronage and take pride in the
long tradition of quality components, that our company
represents.

So that you can get the most out of your unit, we
suggest that you take the time to read through this
manual before you hook up and operate your system.
This will acquaint you with operating features, and
system-connection considerations, so that your listen-
ing pleasure will be enhanced right from the start. You
will notice that in all aspects of planning, engineering,
styling, operating convenience and adaptability, we
have sought to anticipate your needs and desires.
Keep this manual handy for future reference.

For your records
Record the serial number, found on the back of the
unit, in the spaces designated on the warranty card,
and in the space provided below. Refer to the model
and serial numbers whenever you call upon your dealer
for information or service on this product.

Model__Serial Number

Unpacking

Unpack the unit carefully and make sure that all ac-
cessories are put aside so they will not be lost.
Examine the unit for any possibility of shipping
damage If your unit is damaged or fails to operate,
notify your dealer immediately If your unit was shipped
to you directly, notify the shipping company without
delay. Only the consignee (the person or company
receiving the unit) can file a claim against the carrier for
shipping damage

We recommend that you retain the original carton and
packing materials for use should you transport or ship
the unit in the future.

Before operation

Safety precautions
Never remove the case. if the internal parts are touched
accidentally, a serious electric shock might occur.

\ 5
Never touch internal
parts.

If a metal object, such as a hair pin or a needle, comes
into contact with the power socket on the rear panel, a
dangerous electric shock may result. For families with
children, never permit children to put anything,
especially metal, inside this unit

Do not connect other audio equipment with a power
consumption larger than that specified to the AC outlet
on the rear panel. Never connect other electrical ap-
pliances, such as an iron or toaster.

Touching the power plug when your hands are wet
may result in a serious electric shock.
a
g 1' Nev-r loud: with wet :

0 um.
01::
Never pull, bend or extend the power cord, This could

damage the power cord, resulting in a broken cord or
short-circuit.

Never pull or ltretch

I?
In case of abnormal smell
If an abnormal smell or smoke is detected, immediately
turn the power OFF and pull out the power cord. Con-
tact your dealer or nearest service station.

It a,

#3
Cleaning

Do not use volatile solvents Such as alcohol, paint thin-
ner, gasoline, benzine, etc to clean the cabinet Use a
silicone cloth or a clean dry clot>h<

o-‚¬15

WM Tremor Banzina

Installation precautions

al Avoid locations subject to direct sunlight.

b) Avoid high or low temperature extremes.

cl Keep the unit away from heat radiating sources.

d) Choose a location that is relatively free of vibration
or excessive dust.

e) Make sure power is off before making any system
connections.

PRINTED IN JAPAN 350549500 (K,P,U,M,UE,X.EI (TI

23456789l01112l85 123456789101112/86

Page 2

it

Before applying power

Important!

U.S.A., Cenede, Austria ltd U.K.

Units shipped to the USA. and Canada are designed
for operation on 120 volts AC only. Units shipped to
Australia and UK. are designed for operation on
240 volts AC only. These units are not equipped with
an AC voltage selector switch and the discussion of
such a switch that follows should be disregarded,

AI other mmles

Units shipped to countries other than the US A.,
Canada, Australia and UK. are equipped with an AC
voltage selector switch on the rear panel. Reler to the
following paragraph for the proper setting ol this
switch,

AC I20 Va.

("0120)

AC 220 Vv
" 1220240)

IE::I

AC 120 Vx
("012m

AC 220 V»
(220-250)

E

This shows lwnch lever
locked in Me AC IZO
(I 10120) v» position.

This Ihows switch lever
locked in the AC 220
IZZGZAOT V~ position.

Move switch lever to match your line voltage.

AC voltage selector switch

AC voltage selection

This unit operates on 120 (I 10 - 120) volts or 220
(220 - 240) volts AC. The AC voltage selector switch on the
rear panel is set to the voltage that prevails in the area to
which the unit is shipped. Before connecting the power cord
to your AC outlet, make sure that the setting position of this
switch matches your line voltage. If not, it must be set to your
voltage in accordance with the following direction,

Note:
Our warranty does not cover damage caused by excessrve line
voltage due to improper setting of the AC voltage selector swnch

Safety preceution for AC plug (For Cenedel

CAUTION: TO PREVENT ELECTRIC SHOCK DO
NOT USE THIS (POLARIZED) PLUG WITH AN EX-
TENSION CORD, RECEPTACLE OR OTHER
OUTLET UNLESS THE BLADES CAN BE FULLY
INSERTED TO PREVENT BLADE EXPOSURE.

WARNING:

TO PREVENT FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.

Bear panel safety precautions

For United Kingdom
The mains plug must be removed from the wall socket
prior to any internal examination.

Important .
The wires in this mains lead are coloured in accordance
with the following code:

Blue ..................................... Neutral

Brown ................................... Live

The wires in this mains lead must be connected to the
terminals in the plug as follows:

Wire Colour Plug Terminal Marking
Blue ........ .. . N or Black
Brown ..... . L or Red

OE
Brown to_
Live
Blue to _ I.
Neutral
N
Plug -
I
Notes:

1) ll a 13-amp plug IS used, this must be fitted With a S-amp

fuse

2) II a 3-pin plug wrth earthing contact is used, no Wire
must be connected to the E terminal

CAUTION

RISK OF ELECTRIC SHOCK
DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER
(OR BACK). NO USER-SERVICEABLE PARTS
QUALIFIED SERVICE PERSONNEL.

INSIDE. REFER SERVICING TO

persons.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to
alert the user to the presence of uninsulated "dangerous voltage" within the products
enclosure; that may be of sufficient magnitude to constitute a risk of electric shock to

The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance lservicingl instructions in the
literature accompanying the appliance.

7 n ocncn
