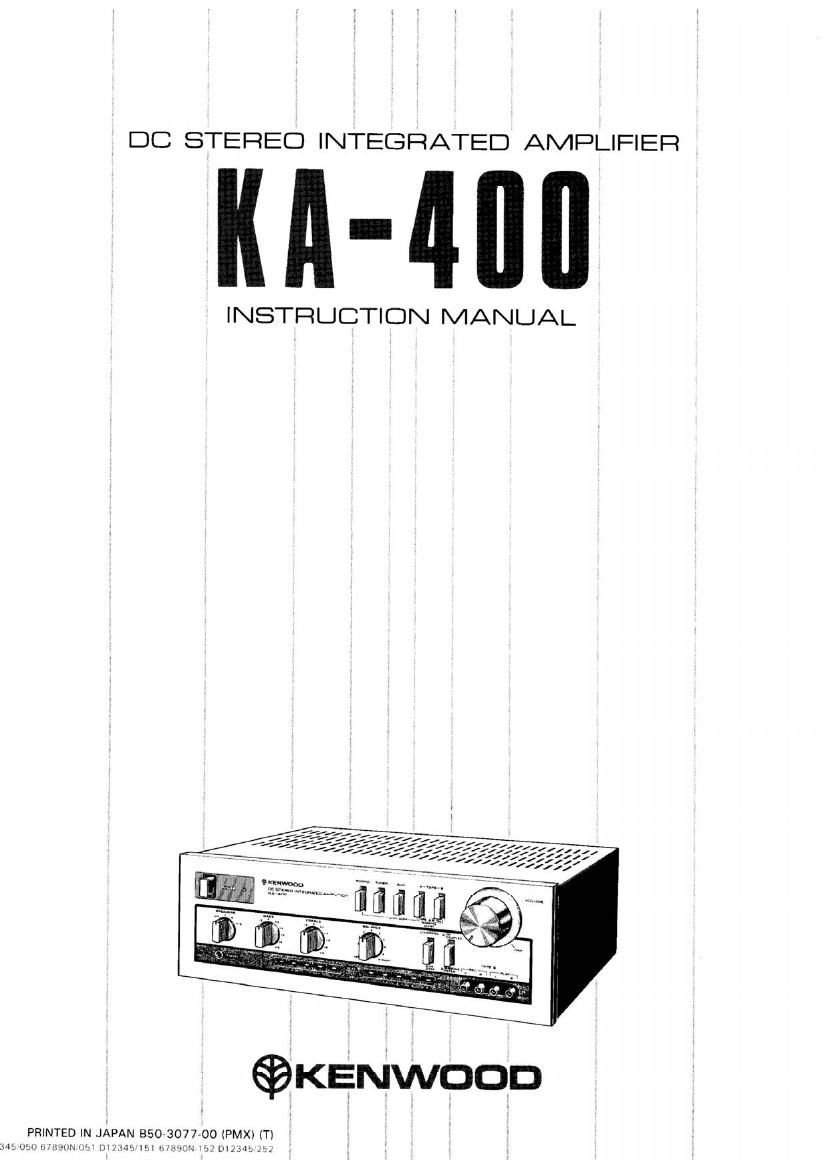

Kenwood KA 400 Owners Manual

This is the 12 pages manual for Kenwood KA 400 Owners Manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 12
left right
Kenwood KA 400 Owners Manual

Extracted text from Kenwood KA 400 Owners Manual (Ocr-read)


Page 2

DEAR AUDIO FAN

The purpose of this manual is to acquaint you with the operating features of your new
amplifier. You will notice that in every detail of planning, engineering. styling, operating con-
venience. and adaptability, we have sought to anticipate your needs and desires.

We suggest that you read this manual carefully. Knowing how to set up your amplifier to
the best advantage will enhance your listening pleasure right from the start. You will also
become aware of the ease with which you can adjust your amplifier to meet your special re»


quirements.

CONTENTS
SAFETY PRECAUTIONS ................................. 3
SYSTEM PLANNING CONSIDERATIONS ............ 3
SYSTEM CONNECTION DIAGRAM .................. 4
SYSTEM CONNECTIONS ................................. 5
CONTROLS, INDICATORS

AND CONNECTORS ................................. 6
OPERATINGINSTRUCTIONS ....... .. 8
IN CASE OF DIFFICULTY ............. ..1O
SPECIFICATIONS .......................................... 12

FOR YOUR RECORDS

Record the serial number, found on the back of
the unit, in the spaces designated on the warranty
card. and in the space provided below. Refer to the
model and serial numbers whenever you call upon
your Kenwood dealer for information or service on
this product.

Model KA-4OO Serial number

AFTER UNPACKING

After unpacking, we recommend that you in-
spect the unit for any possible shipping damage, If
your unit is damaged or fails to operate, notify your
dealer immediately. If your unit was shipped to you
directly, notify the shipping company without delay.
Only the consignee (the person or company receiv-
ing the unit) can file a claim against the carrier for
shipping damage.

We recommend that you retain the original car-
ton and packing materials to prevent any damage
should you transport or ship your unit in the future.

INSTALLATION PRECAUTIONS

a) Avoid locations subject to direct sunlight.

b) Avoid high or low temperature extremes.

cl Keep the unit away from heat radiating sources.

d) Choose a location that is relatively free of vibra-
tion or excessive dust.

e) Make sure power is off before making any
system connections.

WARNING:

TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.

2

IMPORTANT!
u.s.A. AND CANADA

Units shipped to the U.S.A. and Canada are
designed for operation on 120 volts AC only.
These units are not equipped with an AC
Voltage Selector switch and the discussion of
such a switch that follows should be disregard-
ed.

ALL OTHER COUNTRIES

Units shipped to countries other than the
U.S.A. and Canada are equipped with an AC
Voltage Selector switch on the bottom plate.
Refer to the following paragraph for the proper
setting of this switch.

AC VOLTAGE SELECTION

This unit operates on 110 7 120 volts or
220 - 240 volts AC. The AC Voltage Selector
Switch on the bottom plate is set to the voltage that
prevails in the area to which the unit is shipped.
Before connecting the power cord to your AC outlet,
make sure that the setting position of this switch
matches your line voltage. If not, it must be set to
your voltage in accordance with the following direc-
tions.
Note: »
Our warranty does not cover damage caused by excessive line

voltage due to improper setting 01 the AC Voltage Selector
Switch.

I __-Tl

1107120V~< > 220240er I IO" 20Vx< b 220-240Vv

Switch lever


»EI:l ©

This shows switch
lever is locked in |
I 1 0-1 20V~ '
position, I

This shows swutch
lever IS locked in
2 20240Vx

l position.

Move swrtch lever to match your line
I voltage by small screw driver or other
pointed tool.

AC VOLTAGE SELECTOR SWITCH
