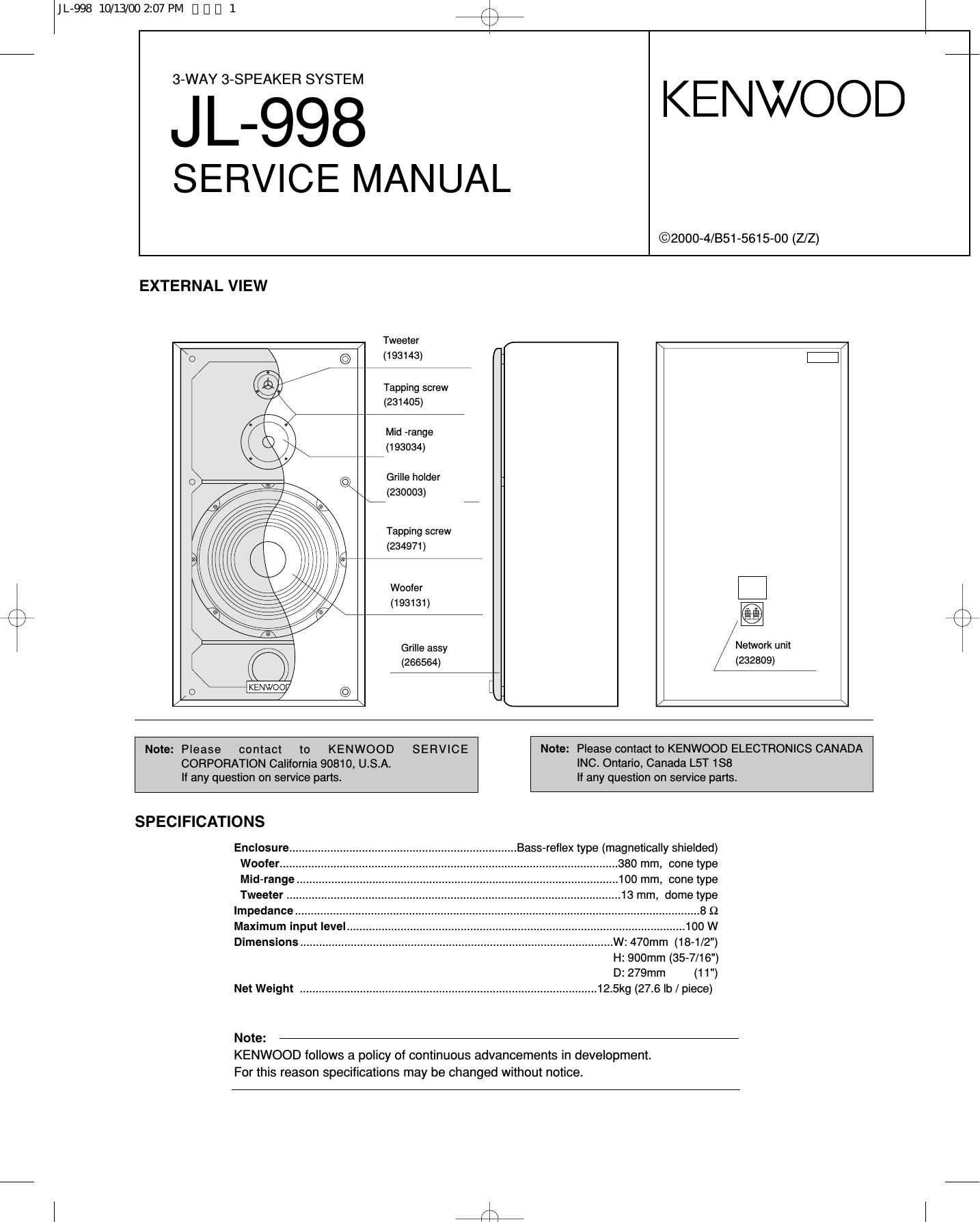

Page 1
JL-998
DIVIDING NETWORK UNIT / PARTS LIST
DIVIDING NETWORK UNIT
PARTS LIST
SP3
TWEETER INPUT SP2
MID-RANGE W5 ; BLK
W4 ; BLK
SP1
WOOFER
C1
R2
W1 ; BLU
4.7 5W
; #. 205 FASTON
; #. 110 FASTON
3.3µ100
+ - + - 1.8µ100
W2 ; YEL
W6 ; BLK W3 ; RED
C2
+ -
+ -
- * 266564 GRILLE ASSY
- * 231535 SPEAKER CORD
- * 231821 POLYSTYRENE FOAMED FIXTURE
- * 231723 PROTECTION BAG
- * 266566 ITEM CARTON CASE
- * 230003 GRILLE HOLDER
SP1 * 193131 WOOFER
SP2 * 193034 MID-RANGE
SP3 * 193143 TWEETER
- * 232809 DIVIDING NETWORK UNIT
Ref. No.Address
NewParts
Parts No.
DescriptionDesti-
nation
Re-
marks
-ˆ—New Parts
Parts without Parts No.are not supplied.
Les articles non mentionnes dans le Parts No.ne sont pas fournis.
Teile ohne Parts No.werden nicht geliefert.
JL-998
L: ScandinaviaK: USAP: CanadaR: MexicoC: ChinaI: Malaysia
Y: PX(For East Hawaii)T: EnglandE: EuropeG: GermanyV: China(Shanghai)
Y: AAFES(Europe)X: AustraliaQ: RussiaH: KoreaM: Other Areas
indicates safety critical components.
2
+ - 1 .
