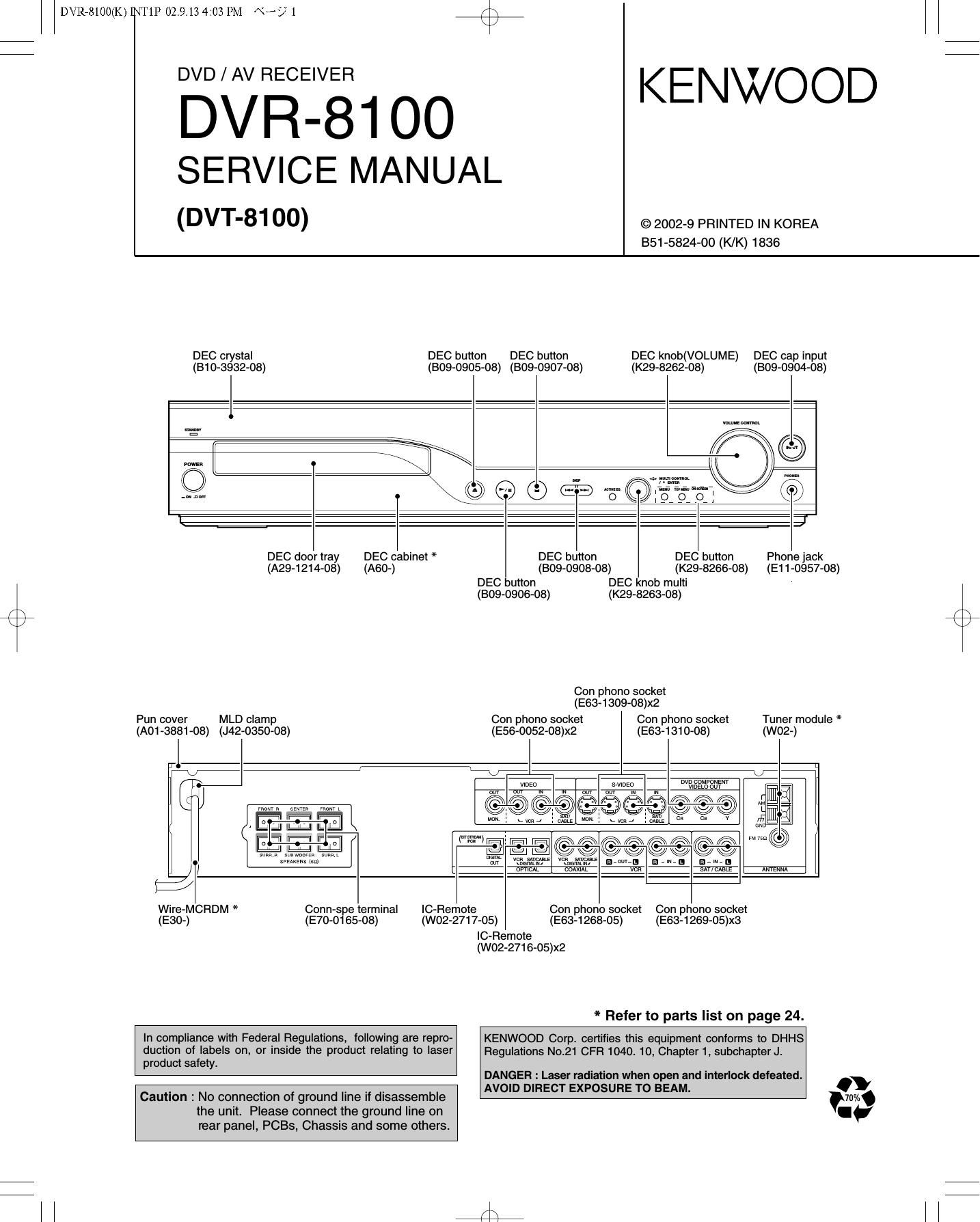

Kenwood DVR 8100 Service Manual

Page 1

DVR78100(K)]NT1P 02.9.13 4:03 PM \°-/ 1 /\

DVD/AV RECEIVER KEN V D
DVR-81OO WOO

SERVICE MAN UAL
(DVT'81 00) ©2002-9 PRINTED IN KOREA

851-5824-00 (K/K) 1836

DEC crystal DEC button DEC button DEC knob(VOLUME) DEC cap input
(B10-3932-08) (809-0905-08) (809-0907-08) (K29-8262-08) (809-0904-08)

77 as 9mm.

Q Q Q 65 s~©-��iafiaij ' ' ©

DEC door tray DEC cabinet * DEC button DEC button Phone jack
(A29-1214-08) (A60-) (809-0908-08) (K29-8266-08) (E11-0957-08)
DEC button DEC knob multi
(809-0906-08) (K29-8263-08)

r\
\/

Con phono socket
(E63-1309-08)x2

Pun cover MLD clamp Con phono socket Con phono socket Tuner module *
(A01-3881-08) (J42-0350-08) (E56-0052-08)x2 (E63-1310-08) (W02-)
' 1-1
K) k]
l leEo S-VlDEO i Waggyggggw
u ur l» m out w w -m-
\ / , 1;; IE m we. .mz wow M on a! v \
1:1 F. New , 1m s A flml, m
T; M wt at": W W $5243 . mm .
Wire-MCRDM * Conn-spe terminal lC-Remote Con phono socket Con phono socket
(E30-) (E70-0165-OB) (W02-2717-05) (E63-1268-05) (E63-1269-05)x3
lC-Remote

(W02-2716-05)x2

* Refer to parts list on page 24.

In compliance with Federal Regulations, following are repro- KENWOOD Corp. certifies this equipment conforms to DHHS
duction of labels on, or inside the product relating to laser Regulations No.21 CFR 1040. 10, Chapter 1, subchapter J.
product safety.
DANGER : Laser radiation when open and interlock defeated.
. . . . . AVOID DIRECT EXPOSURE TO BEAM.
Caution : No connection of ground line If disassemble 70%
the unit. Please connect the ground line on I
rear panel, PCBs, Chassis and some others.
