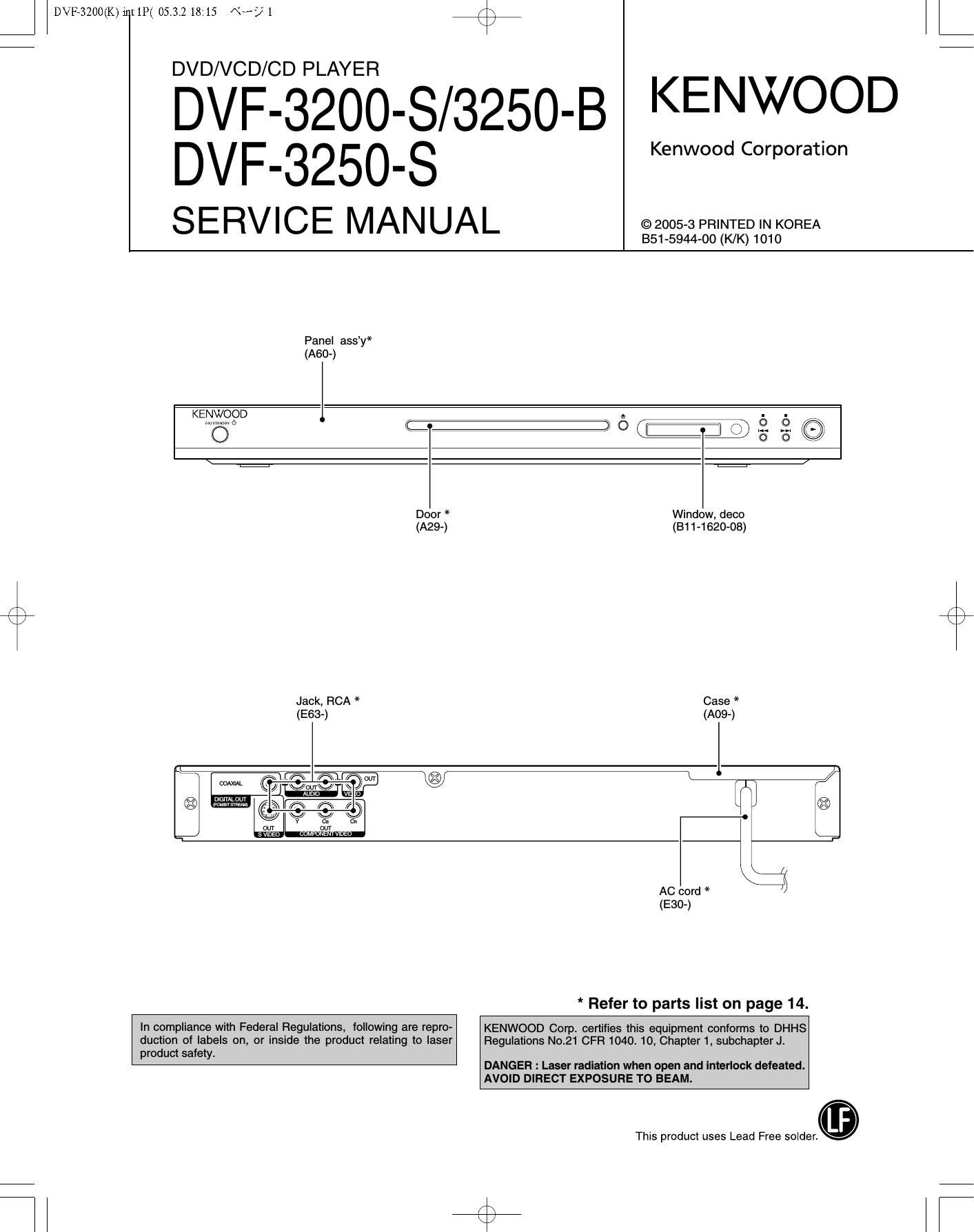

Kenwood DVF 3250 B Service Manual

Page 1

DVF73200(K) inttP( 05.3.2 18: 15 \°~/1

DVDNCD/CD PLAYER

/\
K

DVF-3200-S/3250-B KENWOOD

DVF-3250-S

SERVICE MANUAL

Kenwood Corporation

© 2005-3 PRINTED IN KOREA
851-5944-00 (K/K) 1010

Panel assy*
(A60-)
(:3 5 -==]\ 52 2
C: 1 o 0
Door * Window, deco
(A29-) (B11-1620-08)
E9
Jack, RCA * Case *
(E63-) (A09-l
"I um Widow l®i * I /
W QIVDMMTREg-I U
® % @lm fl ¢\ ®
I V Y \5/ #
M w l
WWW/mac
I: g
AC cord *

(530-)

* Refer to parts list on page 14.

In compliance with Federal Regulations, following are repro-
duction of labels on, or inside the product relating to laser
product safety.

KENWOOD Corp. certifies this equipment conforms to DHHS
Regulations No.21 CFR 1040. 10, Chapter 1, subchapter J.

DANGER : Laser radiation when open and interlock defeated.
AVOID DIRECT EXPOSURE TO BEAM.

This product uses Lead Free solder..

Page 2

DVF73200(K) int 1P( 05.3.2 18: 15 «3? 2

DVF-3200

ACCESSORIES / CAUTIONS

ACCESSORIES

Audio cord (Red, White) ...(1)

(E30-0505-05) (E30-7318-05)

Video cable(Yellow) ...(1)

Coaxial cable (Black) ...(1)
(E30-7317-05)

Batteries (ROB/"AAA" -size) ...(2)

CAUTIONS

Operation to reset

The microprocessor may fall into malfunction (impossibility to operate erroneous display, etc.) when the power
cord is unplugged while power is ON or due to an external factor.
In this case, switch off the power, wait for several seconds, and then switch the power on again.

Note related to transportation and movement
Before transporting or moving this unit, carry out the
following operations.
1. Set the POWER ONIOFF switch to the ON
without loading a disc.
2. Wait a few seconds and verify that the display
shown appears.

n C! CI ISL- (no disc)

3. Set the POWER ONIOFF switch to OFF.

Screen saver

The screen saver appears when you leave the DVD
player in stop mode for about 5 minutes.

If the Screen saver is displayed for 5 minutes, the
DVD player automatically turns itself off.

For the U. S.A.
CAUTION:

Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous radia-
tion exposure.

In compliance with Federal Regulations, the following are repro-
ductions of labels on, or inside the product relating to laser prod-
uct safety.

KENWOOD CORPORATION
2967-3, lSHIKAWA-CHO,
HACHIOJI-SHI,

TOKYO, JAPAN

CONFORMS TO DHHS REGULATIONS No.21 CFR

I
I
I
I
I
I
I
I
I 1040.10, CHAPTER 1, SUBCHAPTER J.

KENWOOD CORP. CERTIFIES THIS EQUIPMENT

Location: Back Panel

Caution on condensation

Condensation (ofdew) may occurinside the unitwhen there is a great
difference in temperature between this unit and the outside. This unit
may not function properly ifcondensation occurs. In this case, leave
the unitfor a few hours and restart the operation after the condensa-
tion has dried up.

Be specially cautious againstcondensation inthefollowing circum-
stances:

When this unit is carried from one place to another across a large
difference in temperature, when the humidity in the room where
this unit is installed increases, etc.

" Dolby" and the double-D symbol are trademarks of Dolby
Laboratories.

Manufactured under license from Dolby Laboratories.

"DTS" and "DTS Digital Out" are reg-
istered trademarks of Digital Theater at,
Systems, Inc.

DIGITAL OUT

DivX, DivX Certified, and associated logos are trademarks
of DivXNetworks, Inc. and are used under license.

The marking of products using lasers
(For countries other than U. S.A. and U. S. -Military)

CLASS 1

LASER PRODUCT

The marking this product has been classified as Class 1. It
means that there is no danger of hazardous radiation outside
the product.

Location: Back panel
