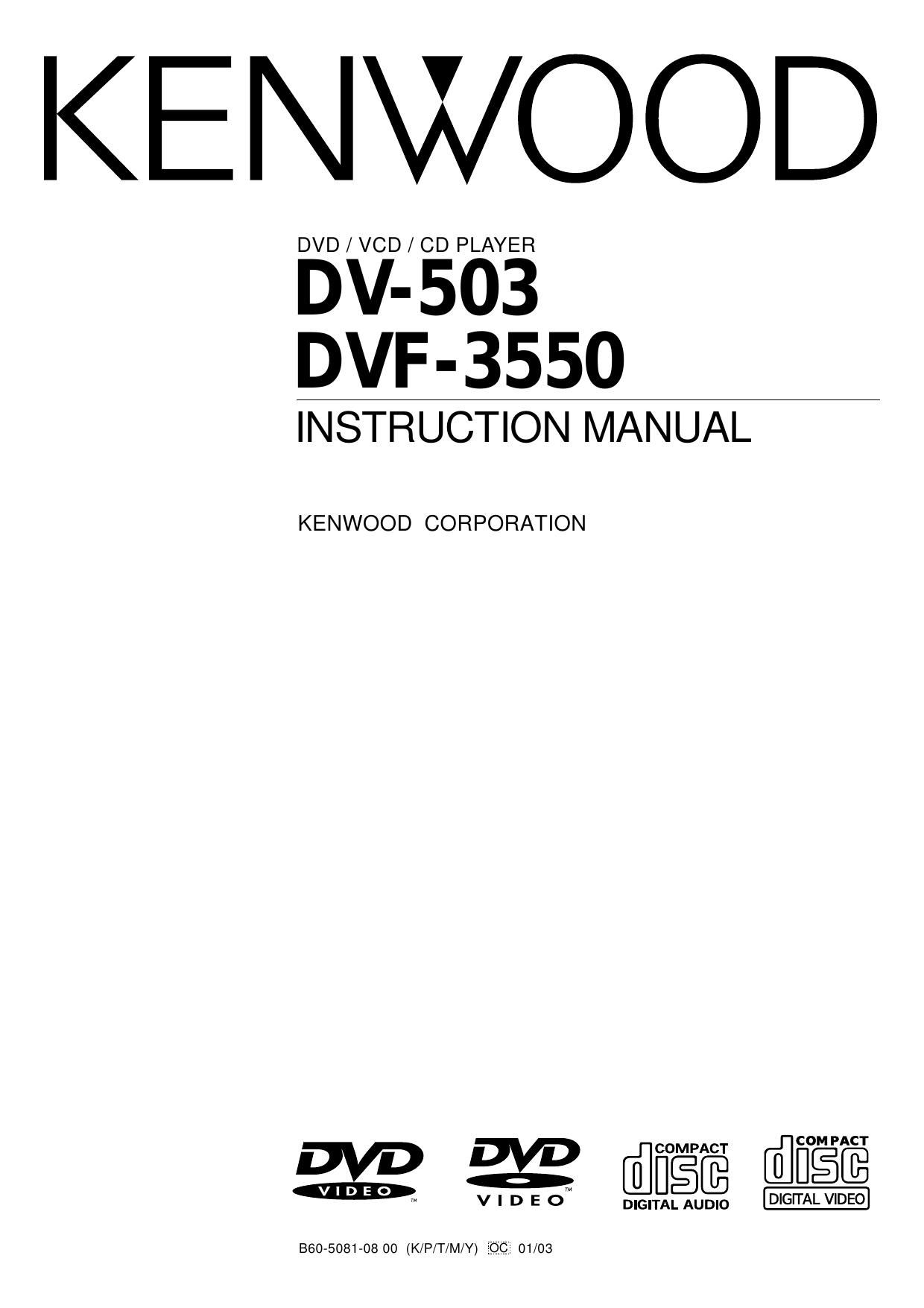

Kenwood DV 503 Owners Manual

Page 2

Introduc tion

Before applying power

Units are dsigned for operation as follows.
U.5.A. and Canada .. A C 120V only
Australia ..................... A C 240 V only

For the United Kingdom

Factory fitted moulded mains plug

1. The mains plug contains afuse. Forreplacement, use
only a 3-Amp ASTA-approved (BS 1362) fuse.

2. The fuse cover must be refitted when replacing the
fuse in the moulded plug.

3. Do not cut off the mains plug from this equipment. If
the plug fitted is not suitable for the power points in
your home or the cable is too short to reach.

A power point, then obtain an appropriate safety
approved extension lead or adapter, or consult your
dealer. lf nonetheless the mains plug is cut off,
remove the fuse and dispose of the plug immediately,
to avoid a possible shock hazard by inadvertent.
Connection to the mains supply.

IM PORTANT :
The wires in the mains lead are coloured in accordance
with the following code:

Blue : Neutral

Brown : Live
Do not connect those leads to the earth terminal of a
three-pin plug.

Safety precautions

DV~502/DVF73050 (EN/K,P,T,M ,Y)

A Caution : Read this page carefully to ensure safe operation.

Europe and U.K
*Other countries

AC 230V only
C 110-120/ 220-240 szitchable

/!\ Caution : Read this page carefully to ensure safe operation.

WARNING :TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.

CAUTION

alsn or ELECYRlC sNocK
no nor am.

CAUTION: TO REDUCE THE RISKOF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE, REFER SER-
VICING TO QUALIFIED SERVICE PERSONNEL.

A

THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL, WITHIN AN EQUILATERAL TRI-
ANGLE, IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UNINSULATED "DAN-
GEROUS VOLTAGE" WITHIN THE PRODUCTS ENCLOSURE THAT MAY BE OF SUFFICIENT
MAGNTTUDE TO CONSTTTUTE A RISKOF ELECTRIC SHOCKTO PERSONS.

A

THE EXCLAMATION POINT WTTHIN AN EQUILATERAL TRIANGLE IS INTENDED TO ALERT
THE USER TO THE PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE (SER-
VICING) INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE.

The marking of products using lasers
(Except for some areas)

CLASS 1
LASER PRODUCT
The marking is located on the rear panel and says that
the component uses laser beams that have been clas-
sified as Class 1. It means that the unit is utilizing laser

beams that are of a weaker class. There is no danger of
hazardous radiation outside the unit.

Page 27

m SelectA udio Language

0 Press Cursor up/down (A/V) keys
on the remote to select Audio on
the set up menu display, then
press the ENTER key.

(>92?) 1.1.0 L-J MEL-l]

Kin

(Audio menu appears.)

9 Press Cursor up/down (A/V) keys
on the remote to select specific
Audio language, then press the
ENTER key.

(Duffy) $0.0 LC] ENTER

XE

To selectother language

(D Select "Other" and press EN-
TER key

@ Input code in the first digit by
Press Cursor up/down (A/V)
keys or numeric keys on the
remoteand repeatolher3code
with same way.

6) Press the ENTER key on "OK"
icon.

(DVD menu languwe code list
-E)

o Press PLAY keyto resume normal playback.

Set Up functions 27

DV-503/DVF-3550 (EN/KP,T,M )0

GD SelectSublille Language

0 Press Cursor up/ down (A/V) keys
on the remote to select Subtitle
on the set up menu display, then
press the ENTER key.

QPéYifMG L-J EM'IER

XE

(Subtitle menu appears.)

6 Press Cursor up/ down (Al v) keys
on the remote to select specific 3
Subtitle language, then press the
ENTER key.

®~§fgg© ->@

XE

To selectotherlanguage
G) Select "Other and press EN-
TER key

(2 Input code in the first digit by
Press Cursor up/ down (A/V)
keys or numeric keys on the
remoteand lepeatother3code
with same way.

6) Press the ENTER key on "OK"
icon.

(DVD menu language code list
-Q )

o Press PLAY key to lesume normal playback.

Page 35

M P3 function
Guidance of M P3

Media thatcan be played back with this equipment
Usable media: CD-ROM, CD-R, CD-RW

Usable fomlals : l509660 level 1.

Files that can be played back : M P3 files

DV~503/DVF73550 (EN/K,P,T,M ,X)

Creating media for playing back on this equipment

Compressing M P3

Please set up the transfer bit rate setting for the compression software when compressing M P3 files as follow.
M P3 Files : 128kbps recommended (32kbps-320kbps)

o This unit is compatible with 32 kHz, 44.1 kHz(recommended) and 48 ld-lz sampling frequencis.

Naming folders and files

Single-byte characters between A and Z singlebyte numerals between 0 and 9, and the singlebyte underscore(_) can be

displayed. ensure that the .M P3" (M P3 files) extension log is attached to all file names.

0 Never add the MP3 extension log to any fils other than MP3 fila. If the MP3 extension log is added to any files
other than MP3 file, the equipment will assume that they can be played back, and this will produce loud noises
in the speakers, rsulting in damage of adverse efiects.

Confirming media and files

Checkto ascertainthat M P3files can be played backcorrectly on the personal computerin use pn'orto saving them onto the media.
Check to ensure that the saved file can be played back normally.

0 It is not possible to confirm that film can be played back conectly while they are being saved onto the media.

When saving files onto media

Ensure that the session is closed orfinalized when data has been written on media. There are cases where media on which the

session has not be closed or finalized will not be played back correctly with this equipment.

0 There are case were the folder nams and file names will not be displayed correctly depending on the software
used to save them.

0 Do not store fils or folders other than MP3 on media to be played back with this equipment.

0 It is recommended that ten or las sessions are stored when recording MP3 fils onto a media.

0 There are cass where playback is not possible when MP3 file (CD-ROM) and music CD infomation (CD-DA) are
saved on the same media.

Example fora hierarchical structure
(1) l2)

ROOT ROOT

. D Folder . Cl Folder

0 P File 0 P File
be 5 J» -F a E P
i i D i l i p
-L l:: i-mi- l» f a g P
-: p 5 Pi P i E- P
-;- P g pg 9 ; a i p
-: J P P - P
Layerl iLayerz E Layers E Layer4 Layer1 iLayerZ E Layers

35

SD

Page 39

Knowledge

DVD menu language code list

Cord No. Language Cord No. Language Cord No. Language
6565 Afar 7282 Croatian 8076 Polish
6566 Abkhazian 7285 Hungarian 8083 Pashto; Pushto
6570 Afiikaans 7289 Armenian 8084 Portuguae
6577 Amharic 7365 lnteriingua 8185 Quechua
6582 Arabic 7378 Indonsian 8277 Rhaeto-Romance
6583 Assamae 7383 Icelandic 8279 Romanian
6588 Aymara 7384 llalian 8285 Russian
6590 Azerbaijani 7387 Hebrew 8365 Sanskrit
6665 Bashkir 7465 j apanse 8368 Sindhi
6669 Byelorussian 7473 Yiddish 8372 Serbo-Croatian
6671 Bulgarian 7487 j avanae 8373 Singhalse
6672 Bihari 7565 Geogian 8375 Slovak
6678 Bengali; Bangla 7575 Kazakh 8376 Slovenian
6679 Tibetan 7576 Greenlandic 8377 Samoan
6682 Breton 7577 Cambodian 8378 Shona
6765 Catalan 7578 Kannada 8379 Somali
6779 Corsican 7579 Korean 8381 Albanian
6783 Czech 7583 Kashmiri 8382 Serbian
6789 Welsh 7585 Kurdish 8385 Sundanae
6865 Danish 7589 Kirghiz 8386 Swedish
6869 German 7665 Latin 8387 Swahili
6890 Bhutani 7678 Li ngala 8465 Tamil
6976 Greek 7679 Laothian 8469 Telugu
6978 English 7684 Lithuanian 8471 Tajik
6979 Esperanto 7686 Latvian; Lettish 8472 111ai
6983 Spanish 7771 Malagasy 8473 Tigrinya
6984 Estonian 7773 Maori 8475 Turkrnen
6985 Basque 7775 Macedonian 8476 Tagalog
7065 Persian 7776 Malayalam 8479 Tonga
7073 Finnish 7778 Mongolian 8482 Turkish
7074 Fiji 7779 Moldavian 8484 Tatar
7079 Farose 7782 Marathi 8487 Twi
7082 French 7783 Malay 8575 Ukrainian
7089 Frisian 7784 Maltese 8582 Urdu
7165 Irish 7789 Bunnae 8590 Uzbek
7168 Scots Gaelic 7865 Nauru 8673 Vietnamese
7176 Galician 7869 Nepali 8679 Volapiik
7178 Guarani 7876 Dutch 8779 Wolof
7185 Gujarati 7879 Nowegian 8872 Xhosa
7265 Hausa 7982 Oriya 8979 Yoruda
7273 Hindi 8065 Punjabi 9072 Chinse
9085 Zulu
DIM M ER func tion

The display bn'ghtnss ofthe main unit can be changed.
Switching as shown below is done each time the DIMMER key on the remote control is prssed.

6) Dim
(2) Notlit
(3) Bright

DIMMER

@Q

39

DV402/DVFa3530 (EN/K,P,T,M,X)

afloat/lino:
