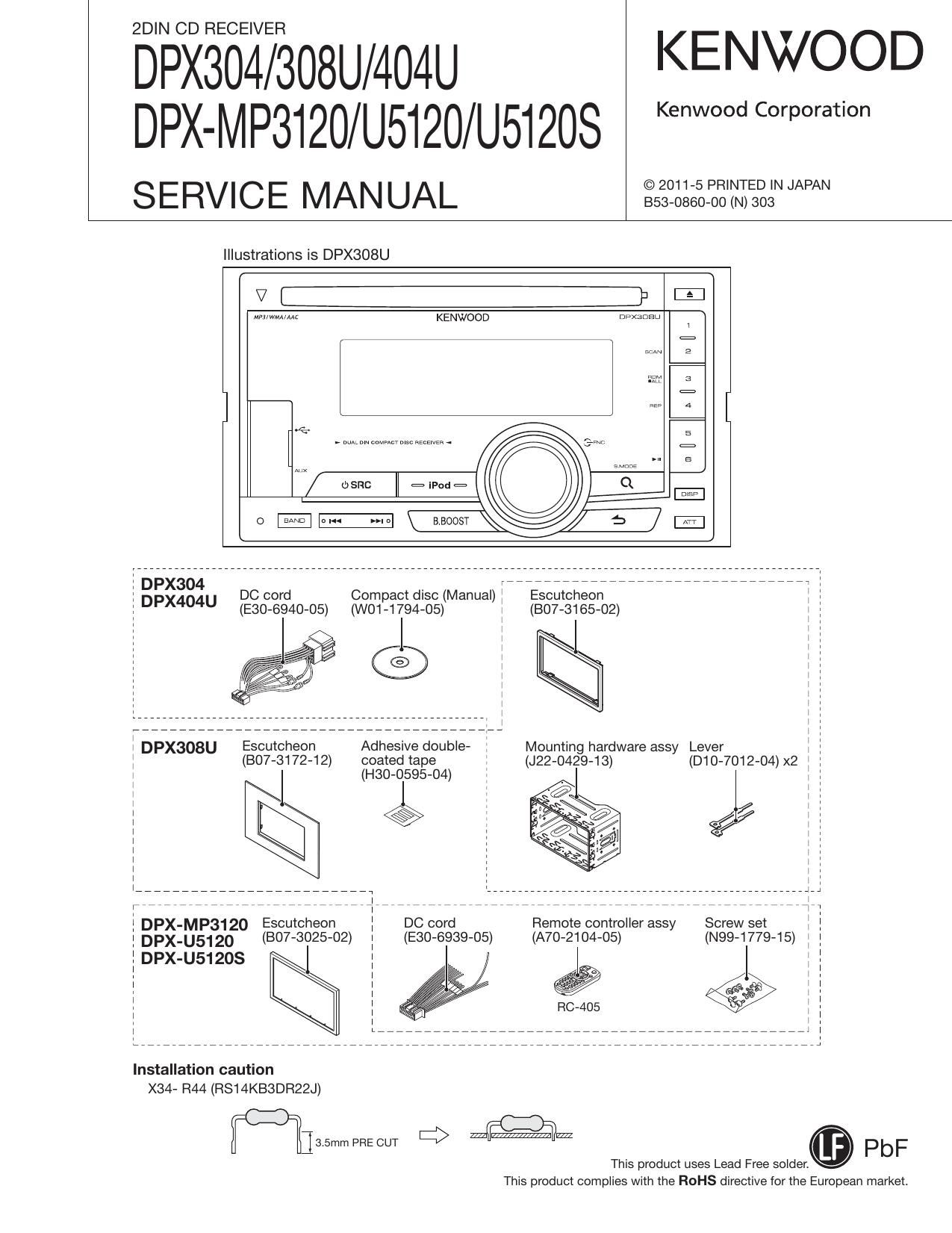

Kenwood DPXU 5120 Service Manual

Page 15

DPX304/DPX308U/DPX404U
DPX-MP3120/U5120/U51208

TEST MODE

Key Description of display Description
in CD information display mode, perform the display
CD information switch of displayed information (forward rotation).
ROTARY UP display switching (Ex.) CD eject error information display
(forward rotation) Eject error 1 a Eject error 2 a Eject error 3 a

Eject error 4 a (to Eject error 1).

In CD information display mode, perform the display

ROTARY CD information switch of displayed information (reverse rotation).
DOWN display switching (Ex) CD eject error information display
(reverse rotation) Eject error 1 a Eject error 4 a Eject error 3 a

Eject error 2 a (to Eject error 1).

RETURN All lights ON D D D D D DD D D+D DDTD Transfer to the all lights ON display mode.

<>Version information display mode (sub-mode)

Key Description of display Description

Destination termi- _ _ _
TYPE shows the destination of u-com and displays

| T y E :
BAND nay E D D D D D D D D E the status of destination terminal in real time.
status display
(forward
rotation) Development XXXX: Development name * Mid: 1023, Low: 1024
code D D D E Y: Destination *Mid: M/J/E/K, Low: M/E

status display ZZZ: Version (Ll-(20m)

l1 Alllights ON D D D D D D4D D D+D D*D+D

Press and hold this key for 1 second to reset the
mode and transfer to the all lights ON display mode.

Press this key briefly to reset the mode and transfer to
the all lights ON display mode.

RETURN All lights ON D D D D D Dam D D+D DED+D

* Basically, the operation in all lights ON display mode shall be effective, and then this mode is reset automatically.

O TUNER source test mode
<> TUNER special display mode

Key Description of display Description

fl'UNER lC communication error]

E D E D E D D D This display indicates the status in which the commu-

nication with TUNER IC is not possible.

[Adjustment not yet made]

When the TUNER adjustment has never been made
(Adjustment value: 0x00 or OxFF)

*ERRs" display shall be the blinking display. And it
continues in normal mode.

F/E error display

EE DE DE-

[Display in RDS automatic measurement]

To reduce the process of the visual inspection of the

PS display that has been executed up to now in the

production line, a function concerned is installed as

an alternate.

E @ D E D D D D D Turn off the P-CON terminal forcibly after receiving PS

data to display RDSJEST in the PS. (7" indicates

blank.)

*While a function concerned is dedicated to the test
mode process, P-CON shall be resumed by Power
OFF ~> ON.

Normal display
(RDS automatic
measurement
function)

15

Page 18

DPX304/DPX308U/DPX404U
DPX-MP3120/U5120/U51208

TEST MODE

0 Test mode specification with CD source
<> Operation for CD-DA media (KTD-02A)

Key Description of display Description
Normal display D D D D D D D D D D D D D P-TIME display (default)
[in] key operation enables the truck jumps in the fol-
lowing sequence.
No.9 a No.15 a No.10 a No.11 a No.12 a No.13
a No.22 a No.14 a No.9 (Return back to top)
M Truck-up =r However in the case of CD-DA disc that has 8 or
operation less tracks of recorded music, and MP3/ WMA/ AAC
discs, they are played back in order starting with
Track1.
*When displaying CD mechanism name and the ver-
sion information, returns to normal display.
Tracks down by 1 from the track currently being
i« Truck-down played back.
operation *When displaying CD mechanism name and the ver-
sion information, returns to normal display.
Jump to No.28 (For MUSIC line vibration test, Scratch
_ 0.7mm)
1 Jump operation _ _ _
*When displaying CD mechanism name and the ver-
sion information, returns to normal display.
Jump to the track No.14 (Blurring surface disc TCD-
_ 731 RA Tr14)
2 Jump operation , _ _
*When displaying CD mechanism name and the ver-
sion information, returns to normal display.
Mechanism
model name Mechanism model name (MID model: QBSO'V LOW
Mechanism D E E E D I D D D D D D D model: 9310") and mechanism version display
3 version display
(forward Mechanism servo Mechanism servo table version display
rotation) version display D E E ' D D D D D D D (Displayed only in MID model)
Mechanism boot Mechanism boot program version display
program verSIon D @ E D 1 D D D D D D D (Displayed only in MID model)
display
*Toggling action with the track iump of No.9 6 No.22
5 Jump operation sWhen displaying CD mechanism name and the ver-
sion information, returns to normal display.
Jump to the track No.15.
Set volume to 26 (20H2 OdB DC protection malfunc-
tion FCT check)
6 Jump operation *Set VOL setting value based on 13.2V supplied by
Regulated Power Supply.
*When displaying CD mechanism name and the ver-
sion information, returns to normal display.
in the display of mechanism system information,
RETURN Mode clear _
return to normal display.

18
