Kenwood DPFJ 7020 Service Manual

Page 1

f
K

\/

C9e3260M<

K) COVER1,1( 99.10.299:11AM y (w 2

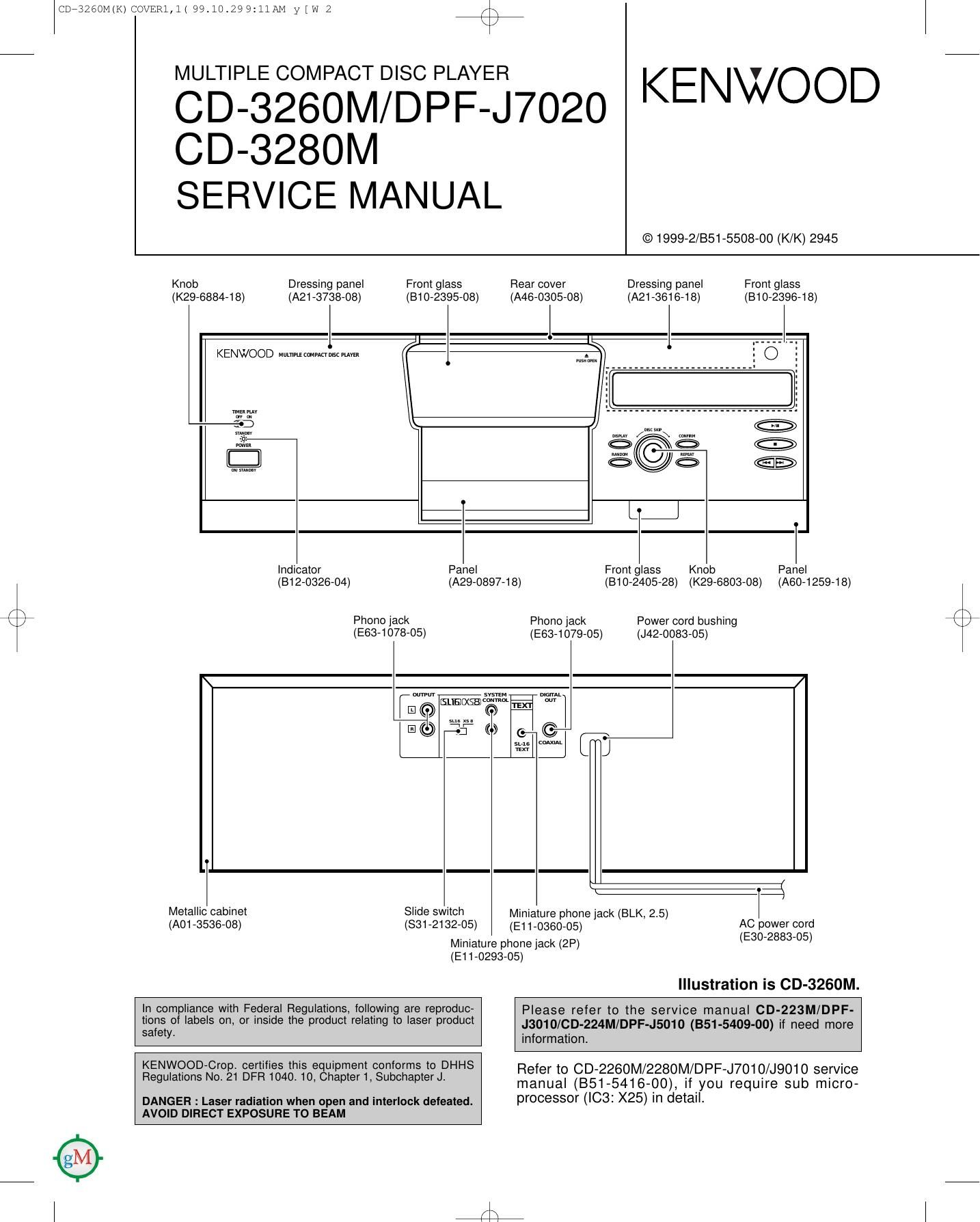

MULTIPLE COMPACT DISC PLAYER

CD-3260M/DPF-J
CD-3280M
SERVICE MANUAL

/\
\J

7020 KENWOOD

© 1999-2/351-5508-00 (K/K) 2945

Knob Dressing panel Front glass Rear cover Dressing panel From glass
(K29-6884-18) (A21 -3738-08) (810-2395-08) (A46-0305-08) (A21 -3616-18) (810-2396-18)
.. . ..
KENWOOD MUmPtEconmmscpuvsx Mm
Indicator Panel Front glass Knob Panel
(B12-0326-04) (A29-0897-18) (B10-2405-28) (K29-6803-08) (AGO-125948)
. /\
Phono Jack Phono (ack Power cord bushing \
(E63-1078-05) (E63-1079-05) (J42-0083-05)
°"'"' 5mm 5353 '53
Leo) o % I
El 0 32'- O @- G- T
Z 3
Metallic cabinet Slide switch Miniature phone jack (BLK, 2.5) I

(A01 -3536-08) (831-2132-05)

Miniature phone jack (2P)

AC power cord

(E11-0360-05)
(E30-2883-05)

(E1 1-0293-05)

Illustration is CD-3260M.

in compliance with Federal Regulations, following are reproduc-
tions of labels on, or inside the product relating to laser product
safety.

Please refer to the service manual CD-223M/DPF-
J3010/CD-224M/DPF-J5010 (351-5409-00) if need more
information.

KENWOOD-Crop. certifies this equipment conforms to DHHS
Regulations No. 21 DFR 1040. 10, Chapter 1, Subchapter J.

DANGER : Laser radiation when open and interlock defeated.
AVOID DIRECT EXPOSURE TO BEAM

Refer to CD-2260M/2280M/DPF-J7010/J9010 service
manual (851-5416-00), if you require sub micro-
processor (IC3: X25) in detail.
