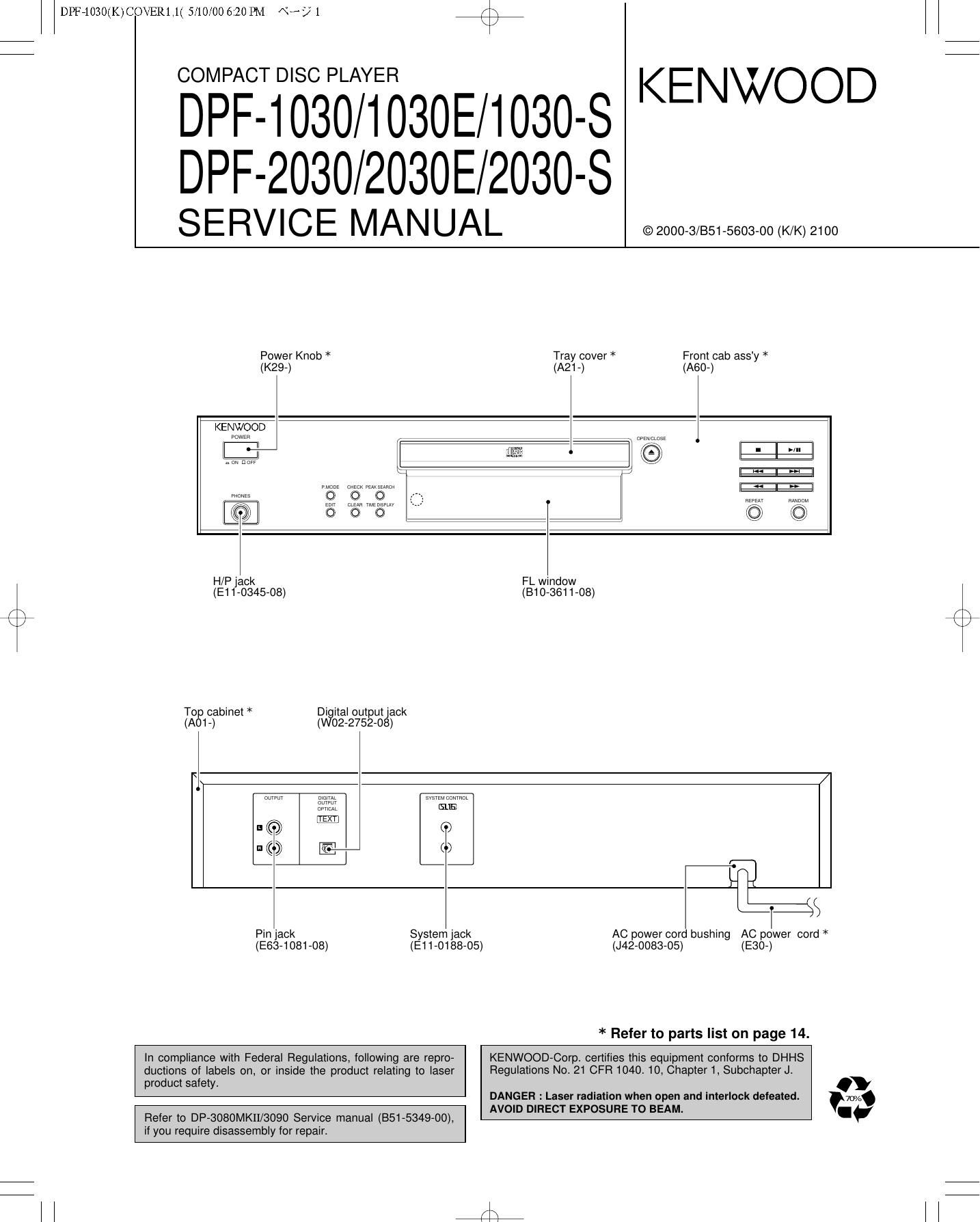

Page 1
DPF71030(K)COVER1,1( 5/10/00 6:20 PM «3? 1 /\
\/
EFF-T1DBEP671E630E/1030-3 KENWOOD
DPF-2030/2030E/2030-S
S E RV I C E MAN UAL ©2000-3/BSl-5603-00 (K/K) 2100
Power Knob * Tray cover * Front cab assy *
(K29-) (A21-) (A60-)
KENWOOD
L ,
l
tun no»
W91: cygc-K».K§um Eng]
9 0 O W1
o 0 Q Q
H/P jack FL window
(E11-0345-08) (B10-3611-08)
/\
K /
Top cabinet * Digital output jack
(A01-) (W02-2752-08)
n mm
nurrur
omen
m
@-
svsizn comm
{SUE}
TLfls
Pin jack System jack AC power cord bushing AEC power cord *
(E63-1081-08) (E11-0188-05) (J42- 0083- 05)
* Refer to parts list on page 14.
In compliance with Federal Regulations, following are repro- KENWOOD-Corp. certifies this equipment conforms to DHHS
ductions of labels on, or inside the product relating to laser Regulations No.21 CFR 1040. 10, Chapter 1, Subchapter J.
product safety. .
DANGER : Laser radiation when open and interlock defeated. 703/3
_ AVOID DIRECT EXPOSURE TO BEAM. I.
Refer to DP-3080MKII/3090 Servrce manual (B51-5349-00),
if you require disassembly for repair
Page 2
DPF71030(K)COVER1,1( 5/10/00 6:20 PM «3? 2 K \
DPF-1030/2030
CONTENTS / ACCESSORIES
Contents
CONTENTS / ACCESSORIES .................................. 2 SCHEMATIC DIAGRAM ............................................ 7
DISASSEMBLY FOR REPAIR.. ..2 EXPLODED VIEW .......... ..
CIRCUIT DESCRIPTION .......... PARTS LIST .......................... 14
ADJUSTMENT .................. .. SPECIFICATIONS ...................................... Back cover
PC BOARD ................................................................ 5
Accessories
r \
Audio cord .................. (1) System control cord ...... (1)
(EGO-291308) (E30-2912-08) AC plug adaptor .............. (1)
, (E03-0115-05)
a}, Use to adapt the ping on the
I power cord to the shape of the
walloutlei.
(Accessory only for regions where
use is necessary.)
Remote control unit ......... (1)
(A70-1414-08) : RC-P0715
(DPF-2030 only) Battery cover : (A09-1190-08)
Batteries (Re/AA) ........ (2)
(DPF-2030 only)
KE NWOOD
REMOTE CONTROL UNlT Fic Him 5
x
u
w
/\ 5
x/ E
I o/'\
E 3i
0 §\,/
\ J
DISASSEMBLY FOR REPAIR
1. How to open tray when tray not come out.
1. Insert the screw driver to left side hole of mechanism ass'y.
2. While pushing the rack gear fully right wards, then the tray pull.
