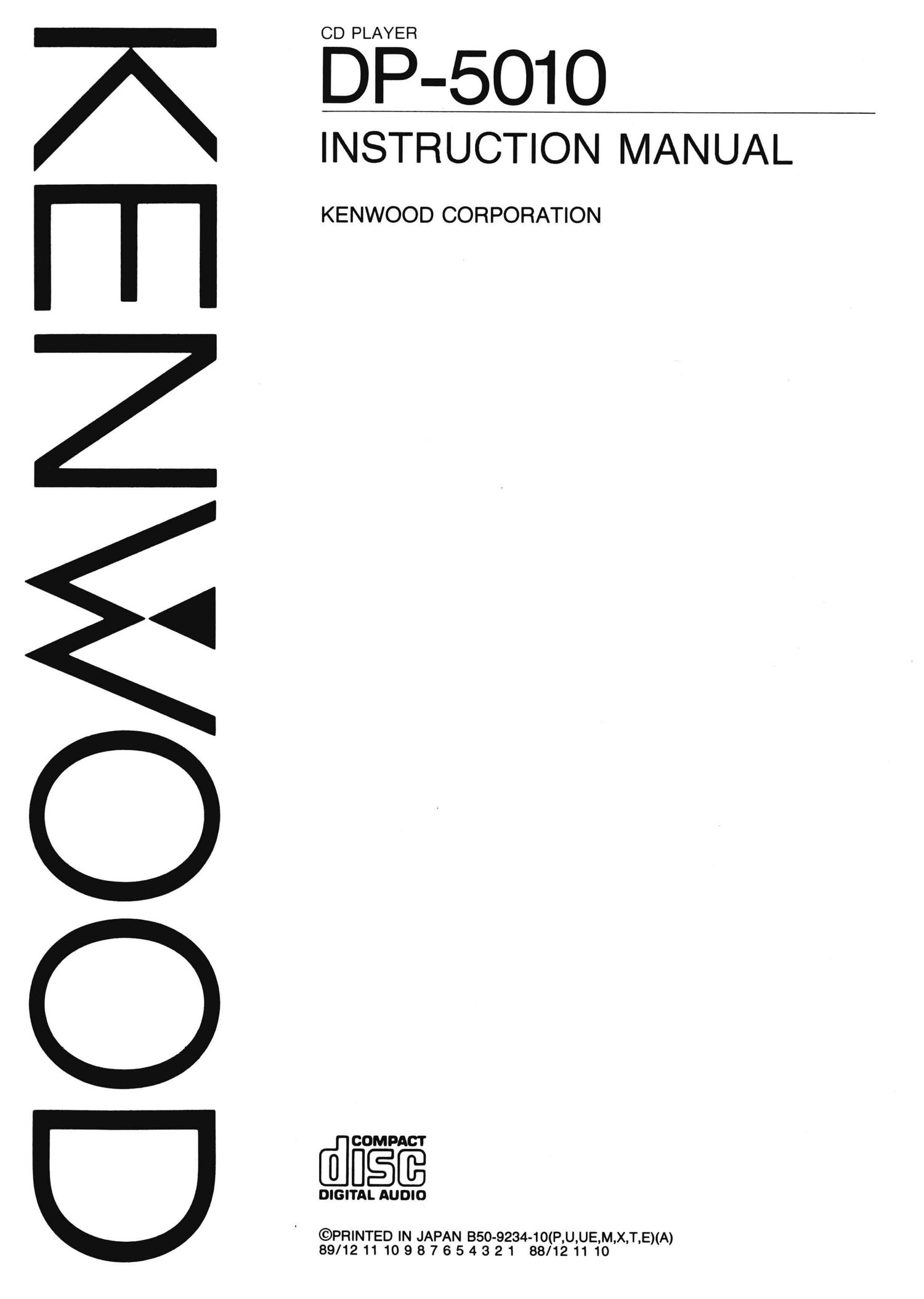

Kenwood DP 5010 Owners Manual

Page 2

Introduction

Your choice of this product indicates that you are a
devotee to excellence in sound reproduction.

We appreciate your patronage and take pride in the long
tradition of quality components. that our company
represents.

So that you can get the most out of your unit, we suggest
that you take the time to read through this manual before
you hook up and operate your system.

This will acquaint you with operating features, and system-
connection considerations, so that your listening pleasure
will be enhanced right from the start. You will notice that
in all aspects of planning, engineering, styling, operating
convenience and adaptability, we have s0ught to antici-
pate your needs and desires.

Keep this manual handy for future reference.

For your records

Record the serial number, found on the back of the unit.
in the spaces designated on the warranty card, and in the
space provided below. Refer to the model and serial
numbers whenever you call upon your dealer for informa-
tion or service on this product.
Model DP-5010 Serial Number

Unpacking

Unpack the unit carefully and make sure that all accesso-
ries are put aside so they will not be lost.

Examine the unit for any possibility of shipping damage.
If your unit is damaged or failsto Operate. notify your dealer
immediately. If your unit was shipped to you directly, notify
the shipping company without delay. Only the consignee
(the person or company receiving the unit) can file a claim
against the carrier for shipping damage.

We recommend that you retain the original carton and
packing materials for use should you transport or ship the
unit in the future.

Contents

A Before applying power .......................................... 3
A Important safeguards ............................................. 4
Before operation .......................................................... 5
System connections .................................................... 6
Controls and indicators .............................................. 7
Remote control unit .................................................... 8
Preparing to play ......................................................... 9
Manual play (Track mode) ........................................ 10
Playing from start .................................................. 10
Playing from a particular tune ............................ 1 1
Forward and reverse searching .......................... 12
EMPHASIS indicator ............................................. 12
Programmed play (Program mode) ......................... 13
lnputting a program .............................................. 13
Checking a program ............................................. 14
Changing a program ............................................. 14

2 DP-501O (En)

CAUTION: Use of controls or adjustments or perfor-
mance of procedures other than those specified herein
may result in hazardous radiation exposure.

In compliance with Federal Regulations. following are
reproductions of labels on, or inside the product relating
to laser product safety.

[- _________

l KENWOOD CORPORATION
SHIONOGI SHIBUYA BUILDING 17-5, 2-CHOME.
SHIBUYA, SHIBUYA-KU, TOKYO, JAPAN

KENWOOD CORP. CERTIFIES THIS EQUIPMENT
CONFORMS TO DHHS REGU_AT|ONS NO. 21 CFR
' 1040, 10, CHAPTER I. SUBC APTER J.

l.___ _____________

Location: Back Panel

I" ------------------- l
lDANGER :
' INVISIBLE LASER RADIATION WHEN OPEN ,
: ANo INTERLOCK FAILED on DEFEATED. l
l
_l

I AVOID DIRECT EXPOSURE TO BEAM.

L_____.___

Location: Inside, near the Laser mechanism.

0 Audio cord .................... 1

. ' '1
Accessories

0 Remote control unit ........ 1
(RC-P8010)

Caution: Read the following pages marked in A carefully to keep your safety.

Playing a program ................................................. 15
Playing from a particular tune of a program 15
Adding a program ................................................. 15
Erasing a program ................................................. 15
Editing ........................................................................... 16
Convenient functions ................................................. 17
Playing after a required time has elapsed on a
track ......................................................................... 17
Playing one particular track only ........................ 18
Repeated playing ................................................... 19
Repeating play between two points .................. 20
Index playing .......................................................... 21
Making space between tracks ............................ 21
Time display switching and timer playing ............. 22
In case of difficulty .................................................... 23
Specifications .............................................................. 24
