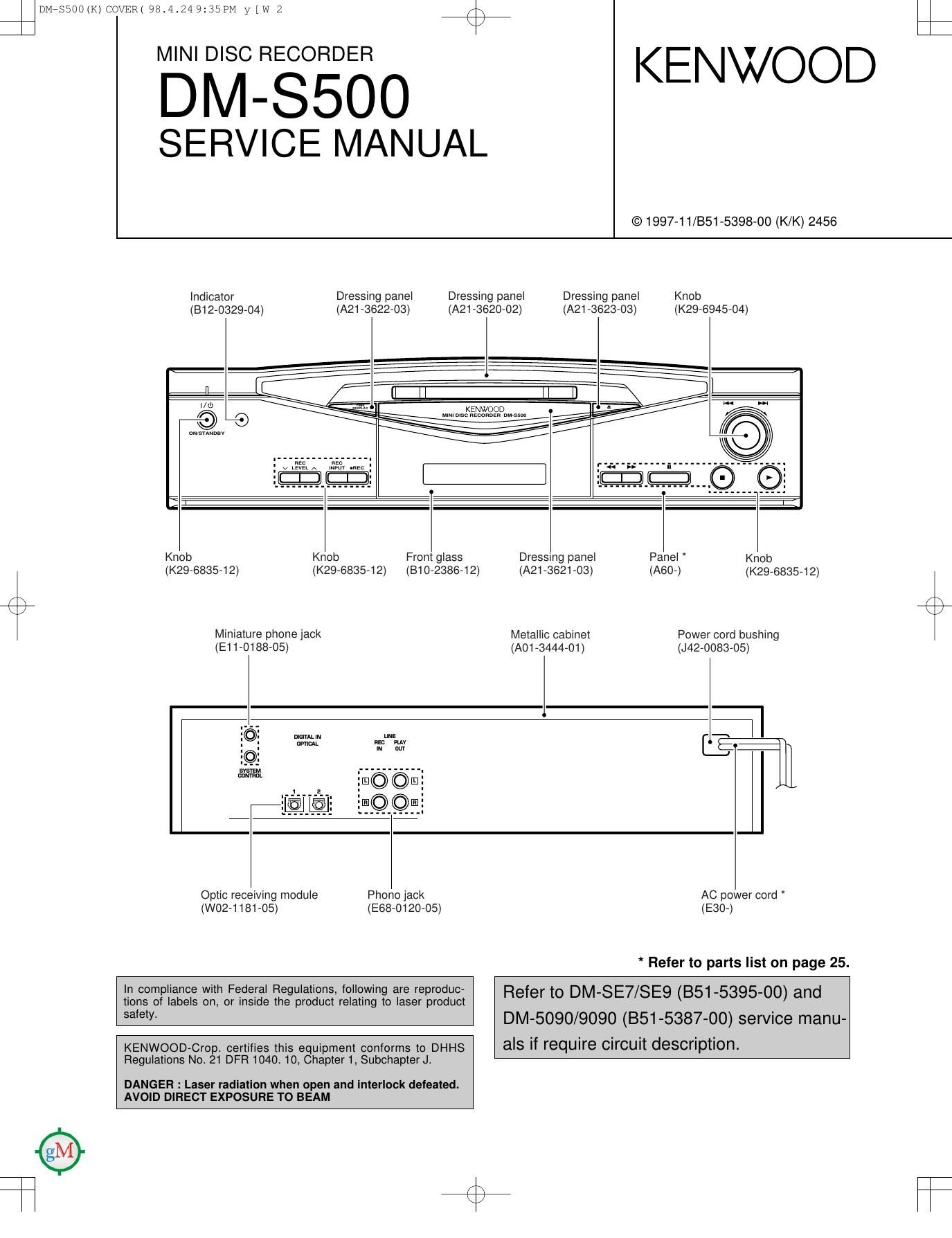

burssoom) COVER( 98t4.249:35PM y [w 2
MINI DISC RECORDER
DM-SSOO
SERVICE MANUAL
4%
KENWOOD
© 1997-11/851-5398-00 (K/K) 2456
Indicator
(Bi 2-0329-04)
Dressing panel
(A21 {3622-03)
Dressing panel
(A21-3620-02)
Knob
(K29-6945-O4)
Dressing panel
(A21-3623-03)
L
l/(J
Q
Knob
(K29-6835-1 2)
Knob
(K29-6835-12)
Front glass
(810-2386-12)
Miniature phone (ack
(E11-0188-05)
Panel
(A60-)
Dressing panel
(A21-3621-03)
Knob
(K29-6835-12)
Metallic cabinet
(Ao1-3444-o1)
Power cord bushing
(J42-0083-05)
mm m LINE
ovum as: am
our
1:6-
Optic receiving module
(W02-1181-05)
Phono (ack
(E68-0120-05)
AC power cord
(E30-)
* Refer to parts list on page 25.
In compliance with Federal Regulations, following are reproduc-
tions of labels on, or inside the product relating to laser product
safety.
KENWOOD-Crop. certifies this equipment coniorms to DHHS
Regulations No 21 DFR 1040 10, Chapter 1, SubchapterJt
DANGER : Laser radiation when open and interlock defeated.
AVOID DIRECT EXPOSURE TO BEAM
Refer to DM-SE7/SE9 (B51-5395-00) and
DM-5090/9090 (351-5387-00) service manu-
als if require circuit description.
Page 2
DMrssomK) cow-1m 98.4.249135PM y [w 3
DM-SSOO
e
CONTENTS / ACCESSORIES / CAUTIONS
Contents
CONTENTS / ACCESSORIES / CAUTIONS. ...2 SCHEMATIC DIAGRAM
CONTROLS ................................................ ...3 EXPLODED VIEW ........
ADJUSTMENT.. .. 5 PARTS LIST ..........
PC BOARD ....... O SPECIFICATIONS ....Back cover
Accessories
Audio cord (2) System control cord (1) Optical fiber cable (1)
(E30-0505-05) (E30-2733-05) (819-1529-05)
Remote control unit (1) Batteries (2) AC plug adaptor (1)
(A70-1187-05) (EO3-0115-05)
Use to adapt the plug on
4" , the power cord to the
w, shape of the wall outlet.
(Accessory only for regions
where use is necessary.)
Battery cover (A09-O356-08)
Cautions
Note related to transportation and movement
Before transporting or moving this unit, carry out the
following operations.
1. With no disc loaded inthe unit, presstheON/STANDBY
key to on.
0 Check that no disc is present in the unit.
2. Wait a few seconds and verify that the display shown
appears.
3. Press the ON/STANDBY key to off (standby).
Maintenance
Cleaning Caution against contact rewtalrzer
Unplug this appliance from the wall outlet before cleaning. Do not use Do not use contact cleaners because it could cause a malfunction. Be
volatile solvents such as alcohol, paint thinner, gasoline, or benzine, specially careful against contact cleaners containing oil, for they may
etc. to clean the cabinet. Use a clean dry cloth. deform the plastic componente.
