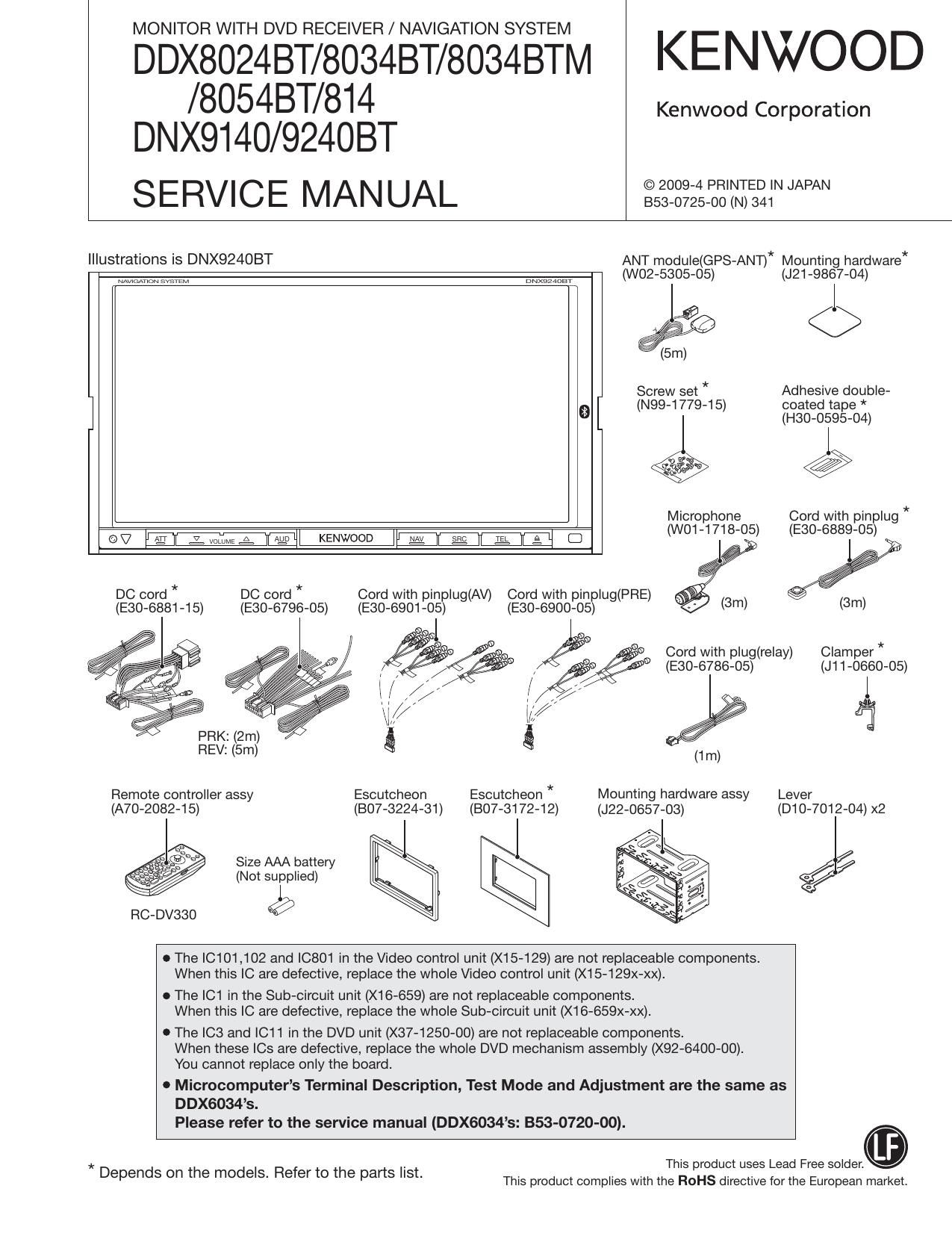

MONITOR WITH DVD RECEIVER / NAVIGATION SYSTEM

DDX8024BT/8034BT/8034BTM KENWOOD
/8054BT/814 Kenwood Corporation
DNX9140/924OBT

SERVICE MANUAL gigsgzzrrzarm

Illustrations is DNX924OBT ANT module(GPS-ANT)* Mounting hardware*
WWMMM mam... (W02-5305-05) (J21-9867-04)
(5m)
Screw set * Adhesive double-
0 (N99-1779-15) coated tape *
(H30-0595-04)
a v @
Microphone Cord with pinplug *
(av y?! El; WT é. fig) KENWOOD g g g. g C] (W01-1718-05) (E30-6889-05)
DC cord * DC cord * Cord with pinplug(AV) Cord with pinplug(PRE)
(E30-6881-15) (E30-6796-05) (E30-6901-05) (E30-6900-05)
fig Cord with plug(relay) Clamper *
// (E30-6786-05) (J11-0660-05)
/ 3/ 1
s /,r//
(1/ 2%
REV: (5m) g (1m)
Remote controller assy Escutcheon Escutcheon * Mounting hardware assy Lever
(A70-2082»1 5) (B07-3224-31) (B07-3172-12) (J22-0657-03) (D10-7012»04) x2

é

E / Size AAA battery l
. (Not supplied)
RC-DVSSO é

o The |C101,102 and |0801 in the Video control unit (X15-129) are not replaceable components.
When this IC are defective, replace the whole Video control unit (X15-129x-XX).

o The |C1 in the Sub-circuit unit (X16-659) are not replaceable components.
When this IC are defective, replace the whole Sub-circuit unit (X16-659x-XX).

O The ICS and |C11 in the DVD unit (X37-1250-00) are not replaceable components.
When these |Cs are defective, replace the whole DVD mechanism assembly (X92-6400-00).
You cannot replace only the board.

0 Microcomputers Terminal Description, Test Mode and Adjustment are the same as

DDX6034s.
This product uses Lead Free solder.

Please refer to the service manual (DDX6034s: 353-0720-00).
This product complies with the ROHS directive for the European market.

* Depends on the models. Refer to the parts list.
