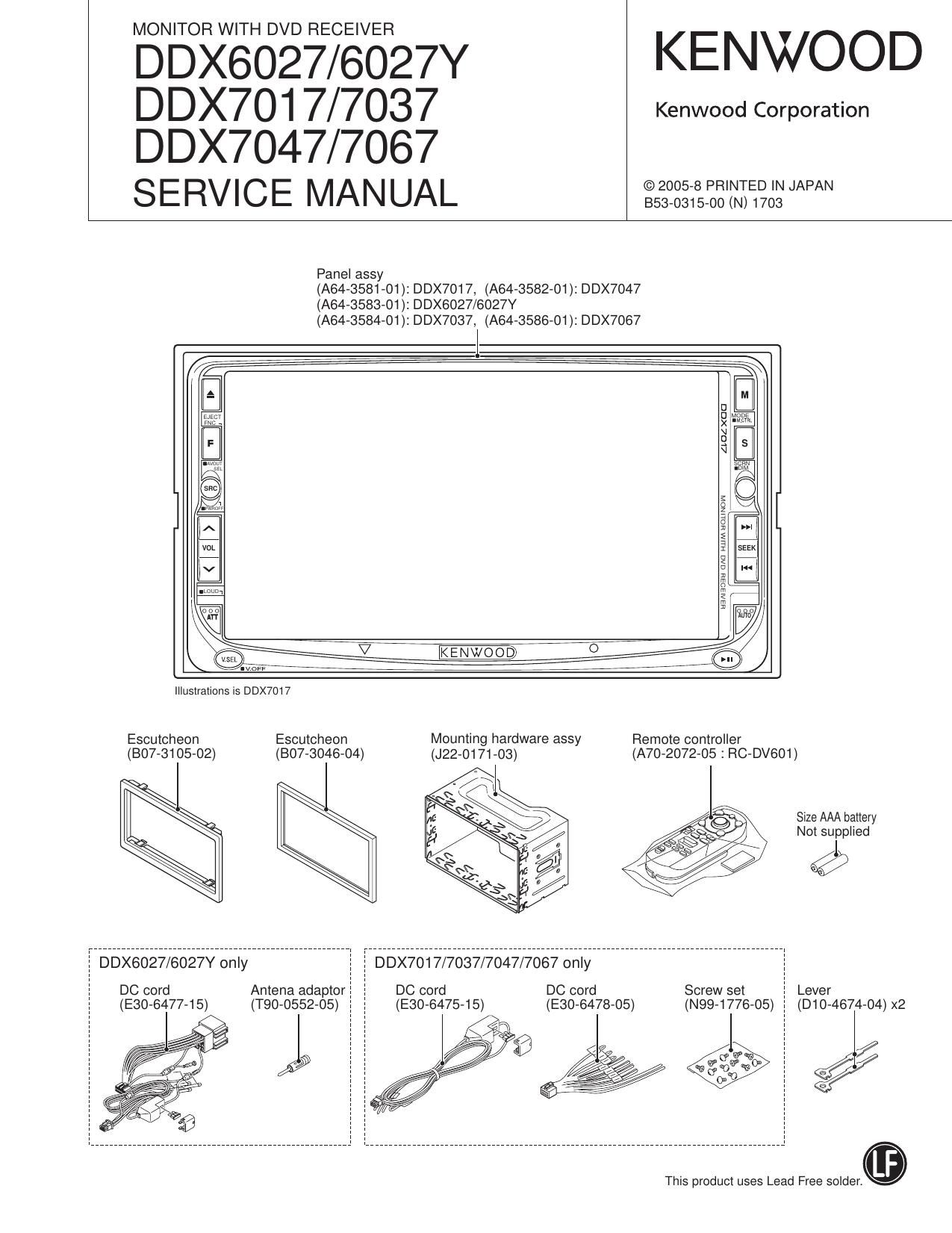

This is the 100 pages manual for Kenwood DDX 7047 Service Manual.
Read or download the pdf for free.
If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.
DDX6027/6027Y/7017
DDX7037/7047/7067
NOTES ON ASSEMBLING THE MECHANISM
1. Fasten Screw A so that the interval (a) will be about 5.2mm
and the interval (b) will be about 2.6mm (The interval (a)
can be measured using a pair of vernier calipers or similar
tools.)
2. Turn B so that Position (0) will come at about the center of
interval (d).
3. Then, play the test disc and fine tune A or B so that the jitter
value would be minimized.
DDX6027/6027Y/7017
DDX7037/7047/7067
MICROCOMPUTERS TERMINAL DESCRIPTION
Pin No. Pin Name Module (physical) l/O Application Processing Operation Description
122 |LL7R PANEL 0 Key ILLUMI red ON/OFF H: ON, L: OFF
123 ILLiG PANEL 0 Key ILLUMI green ON/OFF H: ON, L: OFF
124 ILLiB PANEL 0 Mini liquid crystal backlight blue ON/OFF H: ON, L: OFF
125 NTSCiPAL VIDEO 0 LCD output signal NT/PAL identification output H: PAL, L: NTSC
126 LEDiSW/Sl Other X35 O LED blinking control at OPEN/CLOSE (1 DIN) H: Light turn ON, L: Light turned OFF
126 LED78W/Sl Other X35 0 SI control (2DIN) H: Light turn ON, L: Light turned OFF
127 LCDiPON LCD 0 LCD power supply ON/OFF control H: ON
128~134 NC 0
135 TLiDET Power supply | Power supply reduced electric power detection
136 KEY1 PANEL l 4 key monitor mechanism section (1DIN)
137 KEY2 PANEL l 8 key attach/detach panel section (1 DIN)
138 KEY3 PANEL l 6 key panel section (2DIN)
139 KEY4 PANEL l 6 key panel section (2DIN)
140 FLSENS 1D|N7MECHA | Monitor mechanism tilt sensor (1 DIN)
140 FLSENS 2D|N7MECHA l Tilt mechanism tilt sensor (2DIN)
141 PHiDET 1D|N7MECHA | Monitor mechanism slide detection (1 DIN)
142 AUTOiDlM Other X35 | Auto dimmer input
143 YDATA Touch panel | Touch data input (OSD)
144 XDATA Touch panel | Touch data input (OSD)
Destination setting of GRAPHIC model and 030 model
CLASSIFICATION CATEGORY MODEL NAME DESTINATION TYPES TYPE2 TYPE1 TYPEO
GRAPHIC 1D|N KVT-817DVD K 0 0 0 1
KVT-827DVD E 0 0 1 0
KVT-837DVD M 0 0 1 1
KVT-847DVD/867DVD V/X 0 1 O 0
2D|N DDX8017 K 1 0 0 1
DDX8027 E 1 0 1 0
DDX8037 M 1 0 1 1
DDX8047/8067 V/X 1 1 0 0
OSD 1D|N KVT-717DVD K O 0 0 1
KVT-627DVD/727DVD E 0 0 1 0
KVT-737DVD M 0 0 1 1
KVT-747DVD/767DVD V/X 0 1 0 0
KVT-747DVD 0 1 1 1
2D|N DDX7017 1 0 0 1
DDX6027 E 1 0 1 0
DDX7037 M 1 0 1 1
DDX7047/7067 V/X 1 1 0 0
DDX7047 Fl 1 1 1 1
17
DDX6027/6027Y/7017
DDX7037/7047/7067
MICROCOMPUTERS TERMINAL DESCRIPTION
Module Truth Value
Pin No. Pin Name l/O Application Processing Operation Description
(physical) Table
64 EEPROM7$CL EEPROM IIO Clock for EEPROM (ROM correction)
64 AUDiscL ICZ VI l/O Clock for IC2 VI
65 LX700N LX7M O Startup request for slave unit H: Slave unit ON, L: Slave unit OFF
66 LX7REQiM LX7M 0 Communication request for slave unit
67 LX7MUTE LX7M | MUTE request from slave unit H: MUTE ON, L: MUTE OFF
68 LX7RST LX7M 0 Hard reselling to slave unit H: Reset, L: Normal
69 SYSiMREQ to X14 | Request from system control p-com
70 SYSisREQ to X14 0 Request to system control p-com
71 AVDD uCOM
72 Avss uCOM
73 AVREF pCOM
74 DCiERR ICZ VI | DC offset detection When detected: Low
Normal: 1.6V, TEL MUTE: 1V or lower
75 LINEiMUTE DC-CN | LINE MUTE detection
NAVI MUTE: 2.5V or higher
76 TYPE2 Type | Destination setting (7) Refer to truth value table
77 TYPE1 Type | Destination setting (7) Refer to truth value table
78 TYPEO Type | Destination setting (7) Refer to truth value table
79 OEMiTYPEt OEM | OEM destination setting (6) Refer to truth value table
80 OEMiTYPEO OEM | OEM destination setting ((3) Refer to truth value table
When writing to E2PROM from outside,
Hi is input with ajig (Common use SCL
81 EEPROM7WRT EEPROM | Write detection at ROM correction
and SDA will stop operation)
In other cases, Low (Pull-down)
82 TYPE3 Type | Destination setting (7) Refer to truth value table
83 TUN7|F070UT FST | F/E IFC OUT input terminal H: With station, L: No station
84 TUNisMETER FST | S-meter input
85 RDSiNOISE FST | FM noise detection
86 TVisDATA TV | Data from TV unit
Low at 8.8V or higher
87 BUiDET DC-CN | Backup reduced electric power detection
Hi at reduced electric power (8.8V or lower)
88 LX7REQis LX7M | Communication requests from slave unit
89 svsiow to X14 | ON/OFF control from system control p-com H: Box unit ON, L: Box unit OFF
90 TVisREQ TV | Requests from TV unit
91 TViMDATA TV 0 Data to TV unit
92 TViMREQ TV 0 Requests from TV unit
93 RDS,CLK RDS | RDS decoder CLK input
94 FLASHisl FLASH | Data input at the flash writing
94 LX7DATA7$ LX7M | Data from slave unit
95 FLASHiso FLASH 0 Data output at flash writing
20
