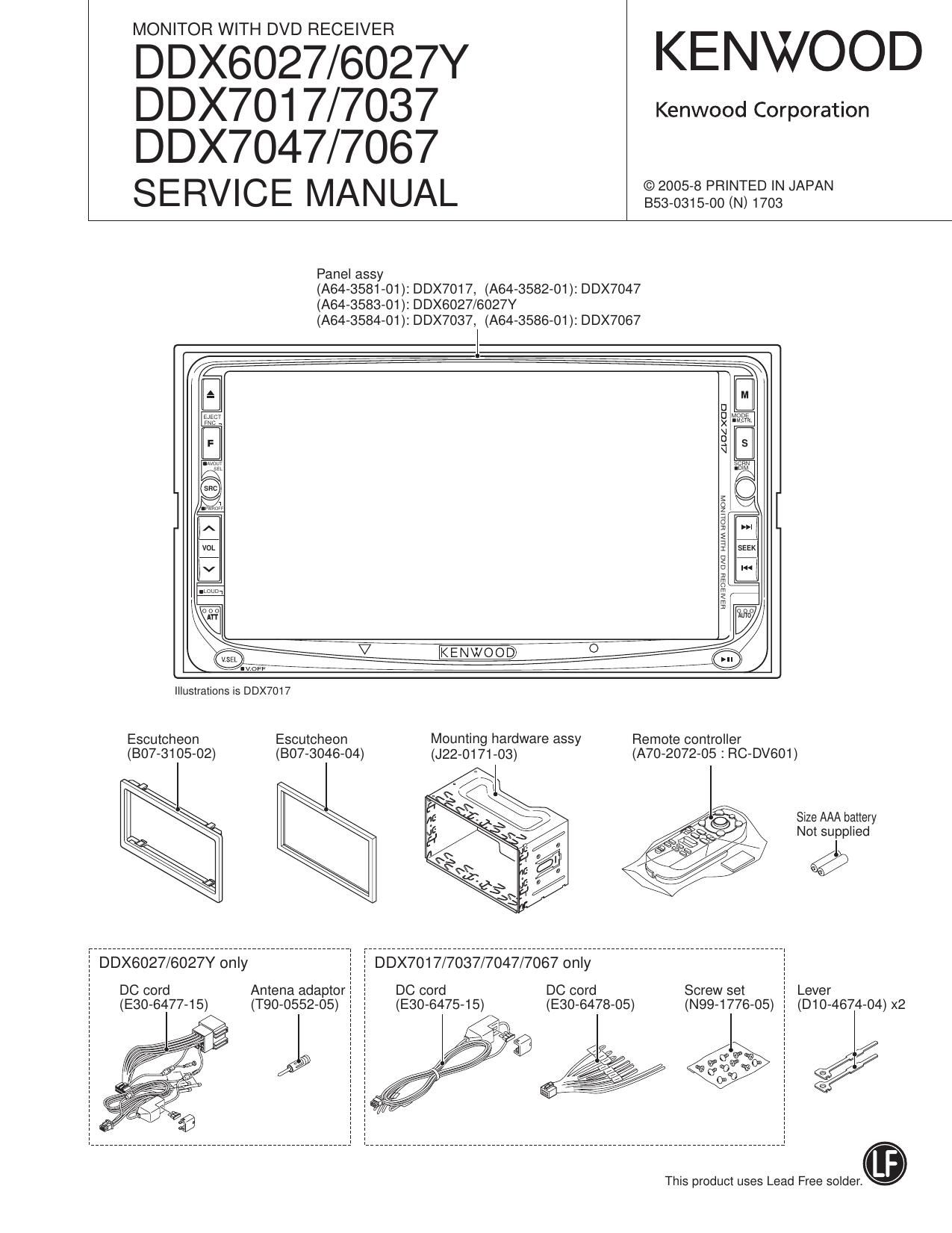

Kenwood DDX 7017 HU Service Manual

Page 2

DDX6027/6027Y/7017
DDX7037/7047/7067

NOTES ON ASSEMBLING THE MECHANISM

1. Fasten Screw A so that the interval (a) will be about 5.2mm
and the interval (b) will be about 2.6mm (The interval (a)
can be measured using a pair of vernier calipers or similar
tools.)

2. Turn B so that Position (0) will come at about the center of
interval (d).

3. Then, play the test disc and fine tune A or B so that the jitter
value would be minimized.

Page 32

DDX6027/6027Y/7017
DDX7037/7047/7067

32

TEST MODE

0 Service Screen

- Service information is displayed/cleared.

- EEPFIOM Chroma data is cleared.

- DC Offset detection information is displayed/cleared.

0 Serial Number Input Screen
- The serial number for each set is written.

Serial Number Input Screen

we, new
DVD Play Md hour Chroma

Ready
ovnaem
Mon. Open at time DCOIfset

None
Mon-ems «ime

E
"E
(:3

Key Specification
Init: Items to be initialized are selected.
lStart : Items that are selected with long-press (1 second
or more) are initialized.
Serial: Serial No Manual Input Screen is displayed.
Clear: EEPFIOM Chroma data is cleared.
Clear: EEPFIOM DC Offset information data is cleared.
Return: Test Mode Main Screen is displayed.

Note: As for DVD related items, those other than M707.
Note: The key arrangements are somewhat different for OSD
model and Graphic model.

Ad'ustment Procedure

Service Information

- Select those items to be initialized by pressing Init Key. (More
than one can be selected. /Those items that are selected
are focus displayed.)

- When selection is complete, press Start Key for 1 second
or more. The Service Information displayed is initialized.

Chroma

- Chroma information is normally Ready-displayed. When
EEPFIOM data is cleared, CIr OK/NG is displayed.

- At the time of Clear, if not reset, When Chroma Adjustment
Screen is displayed, the previous data is maintained. It is
only after resetting that the cleared data is reflected.

DC Offset

- As for DC Offset information, None means no detection and
Detect means information detected.

- With Clear key, detection information is cleared.

Mm
0~9z 10Keys for Serial Number Input
Clear: Serial number being input is cleared.
Cancel :Service Screen is displayed.

Serial Number Input writing Screen

kktssstt

[ Clear ) ( Cancel ) ( Enter )

Mm
Clear: Serial number being input is cleared.
Cancel: Service Screen is displayed.
Enter: Serial Number writing start (Write OK means normal
ending. write NG display means error.)
When OK. Service Screen is displayed with this key.
When NG, enter the Test Mode again, and re-do from the
beginning.

Note: The key arrangements are somewhat different be-
tween OSD model and Graphic model.
