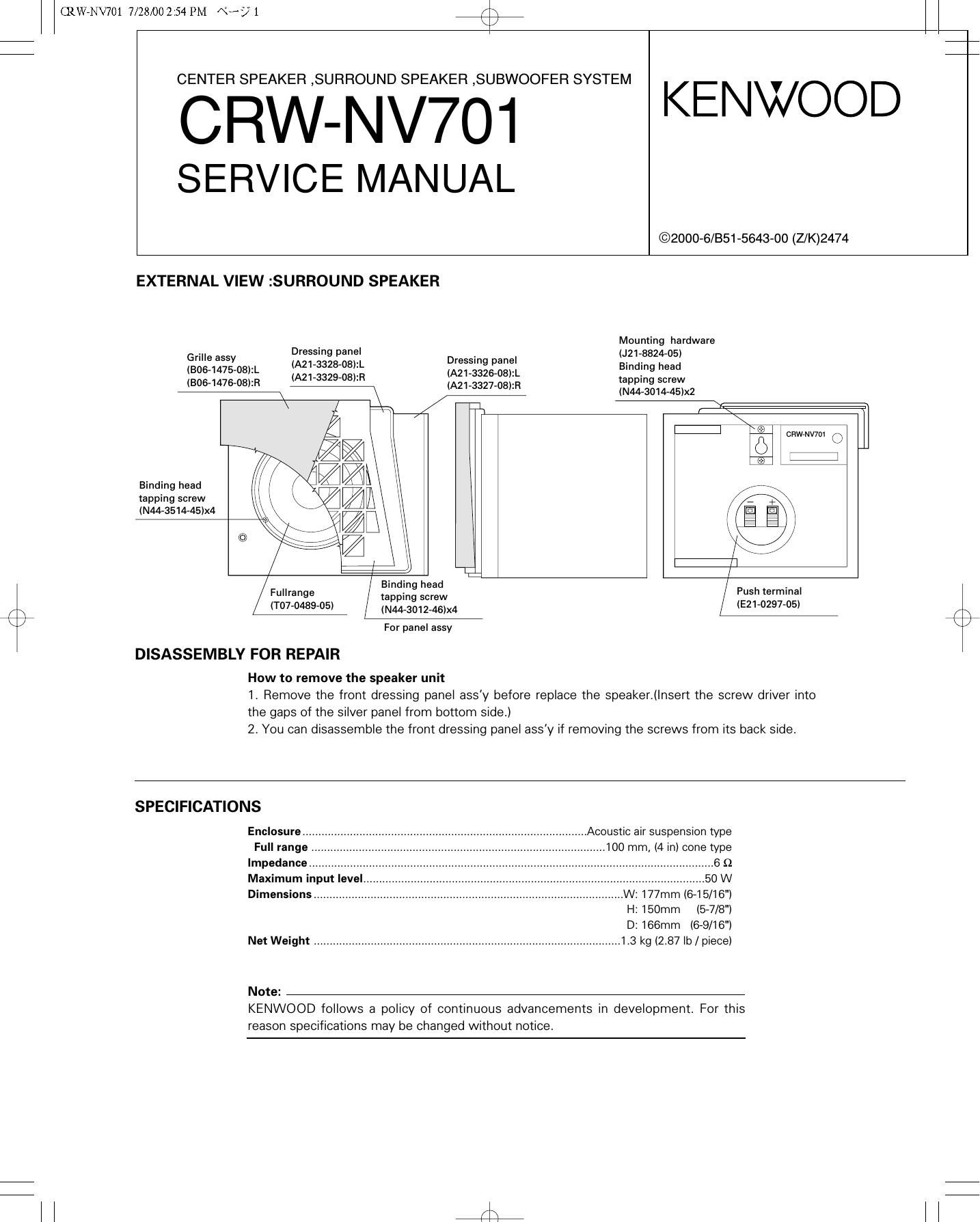

CRW7NV701 7/28/00 2:54 PM «391 /\

CENTER SPEAKER ,SURROUND SPEAKER ,SUBWOOFER SYSTEM

CRW-NV701

SERVICE MANUAL

KENWOOD

©2000-6/BS1-5643-00 (Z/K)2474

EXTERNAL VIEW :SURROUND SPEAKER

Grille assy
IBDG-1475»OSI:L
IBDG-1476-08IZR

Binding head
tapping screw

IN44-3514-45lx4

r\
\/

Mounting hardware
Dressin anel , ,
1A21.33g:ogi;|_ Dressing panel IBJifiLifiztheZSJ
IA21-3329-08l'R (A21-3326-08)2L _
(A21-3327-OB)'R *9me Few
IN44-3014-45)x2

,
I:I E CRW-NWDI (W
i i

For panel assy

DISASSEMBLY FOR REPAIR

How to remove the speaker unit

1. Remove the front dressing panel ass'y before replace the speaker.(lnsert the screw driver into

the gaps of the silver panel from bottom side.)

2. You can disassemble the front dressing panel ass'y if removing the screws from its back side.

Bindin head
Fullrange tapping screw Push terminal
(T07-D489»05I (NM-3012-4GIX4 (E21-0297-05I

SPECIFICATIONS

Enclosure Acoustic air suspension type
Full rang 100 mm, (4 in) cone type
|mpedance.. ..... 6 Q
Maximum input leve .50 W
Dimensions .................................................................................................. W: 177mm (6-15/16")
H: 150mm (5-7/8")
D: 166mm (6»9/16")
Net Weight ................................................................................................. i .3 kg (2.87 lb/piece)

Note:

KENWOOD follows a policy of continuous advancements in development. For this
reason specifications may be changed without notice.

Page 2

CRW7NV701 7/28/00 2:54 PM «Hs/7. /\

CRW-NV701

EXTERNAL VIEW/SPECIFICATIONS

CENTER SPEAKER: MECHANICAL 2-WAY SPEAKER SYSTEM

Full range
(T07-0488-05Ix2

Grille assy
(BOG-147408)

Dressing panel
(AN-3325438) Push terminal l/
- (EN-0297705)

Dressingpanel .
(A21-3324-08) /

cnwwvmi Q

Binding head
tapping screw
(NM-3514-45lx8

SPECIFICATIONS

rx
\/

Binding head
tapping screw
(NM-3012-46Ix6

For panel assy

Enclosure ...................................................... Acoustic air suspension Magnetically shielded type

Full range . .80 mm, (3 inl cone type x2
Impedance. .................................. 6 Q
Maximum input level ............... 50 W
Dimensions .............. W 80mm (1 l ")

H: 130mm (5-1/8")
D: 166mm 16-9/16")
Net Weight ................................................................................................. 2.3 kg (5.07 lb/piecel

Note:
KENWOOD follows a policy of continuous advancements in development. For this
reason specifications may be changed without notice.

SUB WOOFER: WOOFER SPEAKER SYSTEM

Grille assy
(BOB-1477-08I

Binding head
tapping screw
IN44-4020»45)x4

Woofer
lT10-0957-05)

CRw-Nvml t)
l:l

Pus terminal
IE21-0297-05I

Dressing panel
(A21-3330-08I

SPECIFICATIONS

Enclosure .............................................................................................................. Bass-reflex type

Woofer... .l6O mm, (6-1/2 inl cone type
lmpedanc ...................................... 6 9
Maximum input level .................. 50 W
Dimensions .............. 280mm (11"i

H: 200mm (7-7/8"l
D: 345mm (13-9/16"l
Net Weight ............................................................................................... 5.6 kg (l 2.35 lb / piece)

Note:
KENWOOD follows a policy of continuous advancements in development. For this
reason specifications may be changed without notice.
