Kenwood Basic M2 Owners Manual

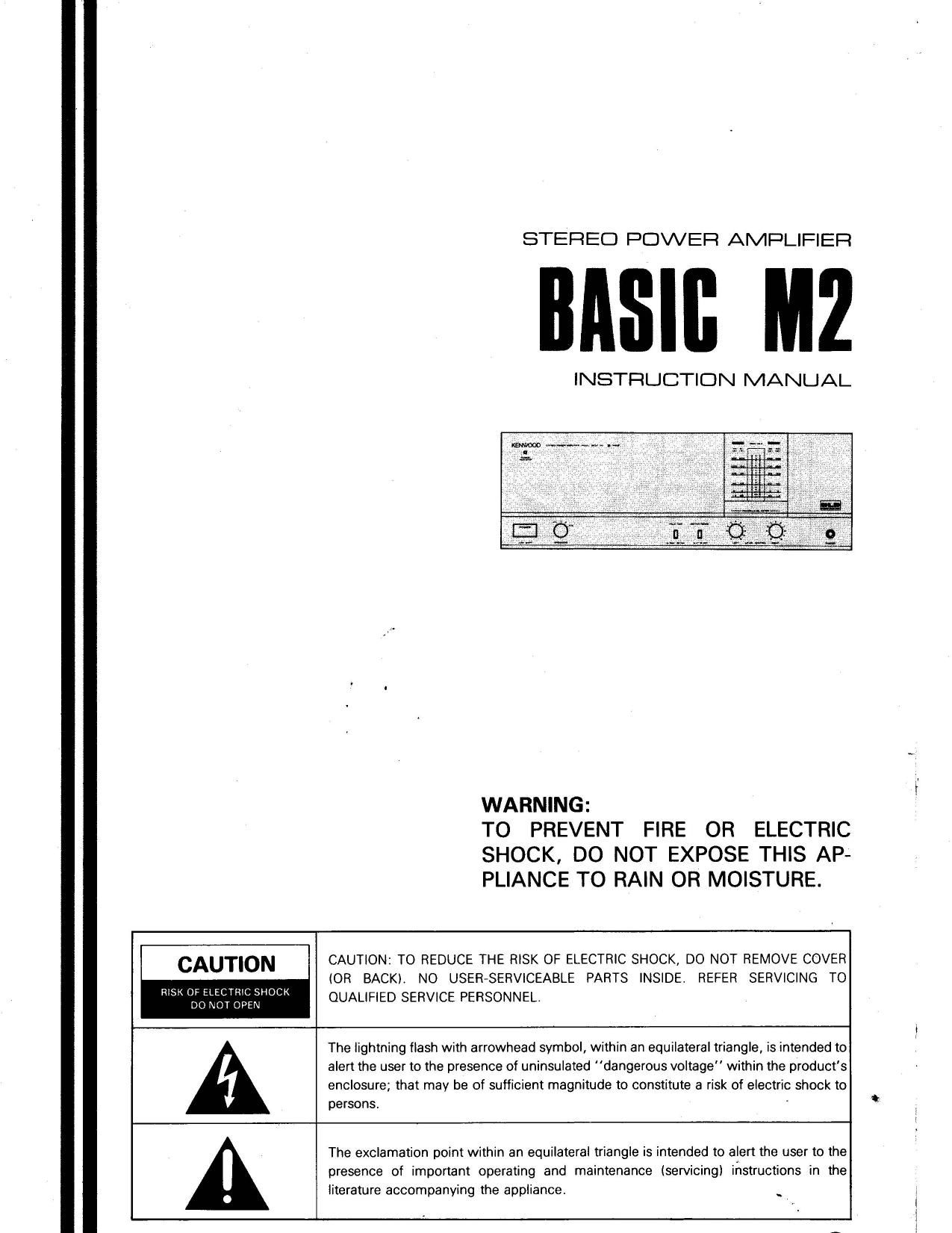

Page 1

STEREO POWER AMPLIFIER

BASH} M2

INSTRUCTION MANUAL

WARNING:

TO PREVENT FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS AP-
PLIANCE TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC? SHOCK
DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER
(OR BACK). NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to
alert the user to the presence of uninsulated dangerous voltage" within the product's
enclosure; that may be of sufficient magnitude to constitute a risk of electric shock to
persons. '

The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.

Page 2

Dear audio fan

The purpose of this manual is to acquaint you with the operating features of your new amplifier. You
will notice that in every detail of planning, engineering, styling, operating convenience, and adape
tability, we have sought to anticipate your needs and desires.

We suggest that you read this manual carefully. Knowing how to set up your amplifier to the best
advantage will enhance your listening pleasure right from the start. You will also become aware of
the ease with which you can adjust your amplifier to meet your special requirements.

Contents

Before operation ..........
System connections ......
Controls, indicators and connectors...
In case of difficulty .........................
Block diagram
Specifications,

For your records

Record the serial number, found on the back of the unit,
in the spaces designated on the warranty card, and in
the space provided below. Refer to the model and serial
numbers whenever you call upon your Kenwood dealer
for information or service on this product

Model BASIC M2 Serial number

Unpacking

Unpack the unit carefully and make sure that all ac-
cessories and cables are put aside so they will not be
lost. Examine the unit for any possibility of shipping
damage. If your unit is damaged or fails to operate,
notify your dealer immediately. If your unit was shipped
to you directly, notify the shipping company without
delay. Only the consignee (the person or company
receiving the unit) can file a claim against the carrier for
shipping damage, We recommend that you retain the
original carton and packing materials for use should
you transport or ship the unit in the future.

IMPORTANT!

U.S.A. and Canada

Units shipped to the U.S.A. and Canada are
designed for operation on 120 volts AC only
These units are not equipped with AC Voltage
Selector switch and the discussion of such a
switch that follows should be disregarded.

All other countries

Units shipped to countries other than the U.S.A.
and Canada are equipped with an AC Voltage
Selector switch on the rear panel.

Refer to the following paragraph for the proper
setting of this switch,

AC voltage selection

This unit operates on 120 volts, 220 volts or 240
volts AC.The AC Voltage Selector Switch on the rear
panel is set to the voltage that prevails in the area to
which the unit is shipped. Before connecting the power
cord to your AC outlet, make sure that the setting posi-
tion of this switch matches your line voltage. If not, it
must be set to your voltage in accordance with the
following direction

Note:
Our warranty does not cover damage caused by excessive line
voltage due to improper setting of the AC Voltage Selector Switch.

This shows switch
lever locked in the
AC 120V» posi<
tiont

AC 120 V'x. AC 240 V» - AC 220 v~

I This shows switch
lever locked in the
AC 240V» post~

I tion.

i]

AC 120 v» - AC no v~ - AC 220 v~

This shows switch
lever locked in the
c m V AC 220v~ posi»

tion.

AC I20 w - AC240 v~

M [t

Move switch lever to match your line voltage.

AC voltage selector switch

Page 3

Before operation

Notes on installation

Do not place the unit in a place which is exposed to
direct sunlight, near a heating appliance, etc.

O<

\\
\

/ l\\
no?

Do not place a vase containing water, makeup, etc. on
the unit. Do not use in a humid place.

A

To maintain good ventilation, do not put records or a

table-cloth on the unit. Place the unit at least 10 cm

away from the walls.
III

\l
«
K!

Choose a location that is relatively free from vibration or
excessive dust.

Safety precautions

Never remove the case. If the internal parts are touched,
accidently, a serious electric shock might occur.

Never touch internal
parts.

If a metal object, such as a hair pin or a needle, comes
into contact with the power socket on the rear panel, a
dangerous electric shock may result. For families with
children, never permit children to put anything,
especially metal, inside this unit.

\
x

"
lg v

Do not connect other audio equipment with a power
consumption larger than that specified to the AC outlet
on the rear panel. Never connect other electrical
appliances, such as an iron or toaster.

Never connect other
electrical appliances.

Touching the power plug when your hands are wet
may result in a serious electric shock.

\ W p
g Never touch with wet
0 L hands.
00¢

Never pull, bend or extend the power cord. This could
damage the power cord, resulting in a broken cord or

short-circuit.
Always grasp the plug.
,t

In case of abnormal smell

it an abnormal smell or smoke is detected, immediately
turn the power OFF and pull out the power cord. Contact
your dealer or nearest Kenwood Service Station.

9

Cleaning

Do not use volatile solvents such as alcohol, paint thin-
ner, gasoline, benzine, etc. to clean the cabinet. Use a
silicone cloth or a clean dry cloth.

Thinner Benline

Silicone Cloth

Thermal protector

This unit employs a thermal protector which
automatically shuts off the power it the temperature in-
side the amplifier becomes unusually high. The protector
automatically restores the power when the temperature
drops to the normal level and the cause of the unusual
temperature rise must be removed before the power is
restored Unusually high temperatures may be caused
by continuous driving of low-impedance speaker

mulch... .. L.:...l.~ *

-. .... -L-_.-u -.

Page 4

System connections

FM antenna AM antenna

Turntable

Tape deck A

Tape deck 8

Audio cables

,- -
[I T \\I
I I
I I
| I
I I
I I
I |
| I
I I
| |
I |
I I
I I
I I
I I
I To AC outlet I
| |
| The Canada model is I
I e q u i p p e d w i t h 3 I
I UNSWITCHED outletsi I
I Their total capacity is I
I 300 W. I
\ Speaker systems A Speaker systems B /

I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
|
I
I
|
l
I
I
I
I
|
I
I
|
|
I
I

BASIC M2
Safety precaution for AC plug (for Canada)

CAUTION: TO PREVENT ELECTRIC SHOCK DO NOT USE THIS (POLARIZED) PLUG WITH
AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE

Fl II I V INRFRTFn Tn DRFVFNT RI Am: :yDnQI In:
