Kenwood 600 Owners Manual

This is the 12 pages manual for Kenwood 600 Owners Manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 12
left right
Kenwood 600 Owners Manual

Extracted text from Kenwood 600 Owners Manual (Ocr-read)


Page 1

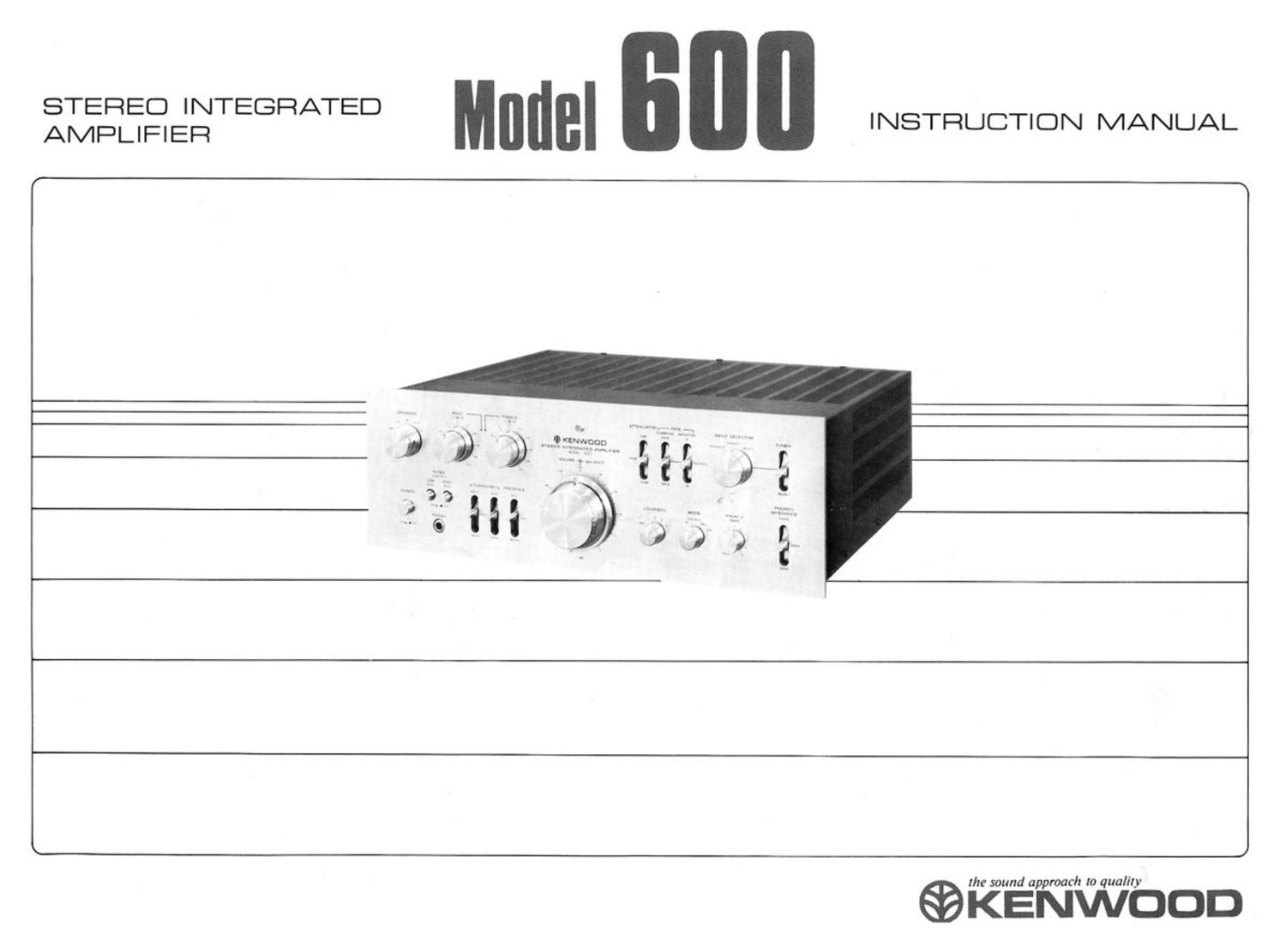

STEREO INTEGRATED
AMPLIFIER MUHEI B n u INSTRUCTION MANUAL

r \

k .1

© the sound approach to qualil y

Page 2

INTRODUCTION

Thank you for purchasing our amplifier. Because we take great
pride in the long tradition of quality components the name Kenwood

represents, your purchase of a Kenwood amplifier places you in a distin-
guished family of connoisseurs of superb high-fidelity sound reproduction.

The purpose of this manual is to acquaint you with the operating
features of your new amplifier. You will notice that in every detail of
planning, engineering, styling, operating convenience, and adaptability,
we have sought to anticipate your needs and desires.

We suggest that you read this manual carefully. Knowing how to
set up your amplifier, to the best advantage, will enhance your listen-
ing pleasure right from the start. You will also become aware of the
ease with which you can adjust your amplifier to meet your special
requirements.

Turn the pages and become acquainted with the exciting features
of your new amplifier that will remain new for endless hours of listen-
ing pleasure.

SERIAL NUMBER

Record your SERIAL NUMBER on the spaces designated on the
warranty card. You will find the serial number on the back of the unit.

PRECAUTIONS CONCERNING INSTALLATION

(a) Avoid locations subject to direct sunlight.
(b) Avoid high or low temperature extremes.
(c) Keep the amplifier away from heat-radiating sources.

PROTECTION CIRCUIT

The newly developed protection circuit is completely effective and
prevents damage which may be caused by short-circuiting at the speaker
terminals or the power output circuit of the amplifier. When a
short-circuit occurs, this protection circuit will function automatically
to protect the power output transistors. If the power output transistor

fails, this protection circuit will function automatically to protect the
speakers.

21.1033. 4' r:

NOTES

1. Units shipped to the USA. and CANADA are designed to
be operated with 120 volts AC only. Units shipped to the
Scandinavian countries are designed to be operated with
220 volts AC only. Therefore the above units are not
equipped with an AC Voltage Selector Switch so all refer-
ence to such a switch throughout this manual should be
disregarded.

2. Units shipped to all other countries are equipped with an

AC Voltage Selector Switch on the rear panel that is preset
at the factory to the Voltage generally available in the
destination area.
It is very important, however, to check the Voltage Select-
or Switch setting and make sure that it corresponds to your
line voltage before connection the power cord into an AC
outlet. If the Voltage Selector Switch requires re-setting,
follow the directions outlined on page 7.

CONTENTS
FEATURES ...................................................................................... 3
INTERCONNECTING DIAGRAM ............................................... 4
CONNECTING INSTRUCTIONS ............................................... 5
CONTROLS AND THEIR FUNCTIONS ................................... 3
OPERATING INSTRUCTIONS .................................................. 10
TROUBLE SHOOTING .............................................................. 12
