Kenwood 104 CD Owners Manual

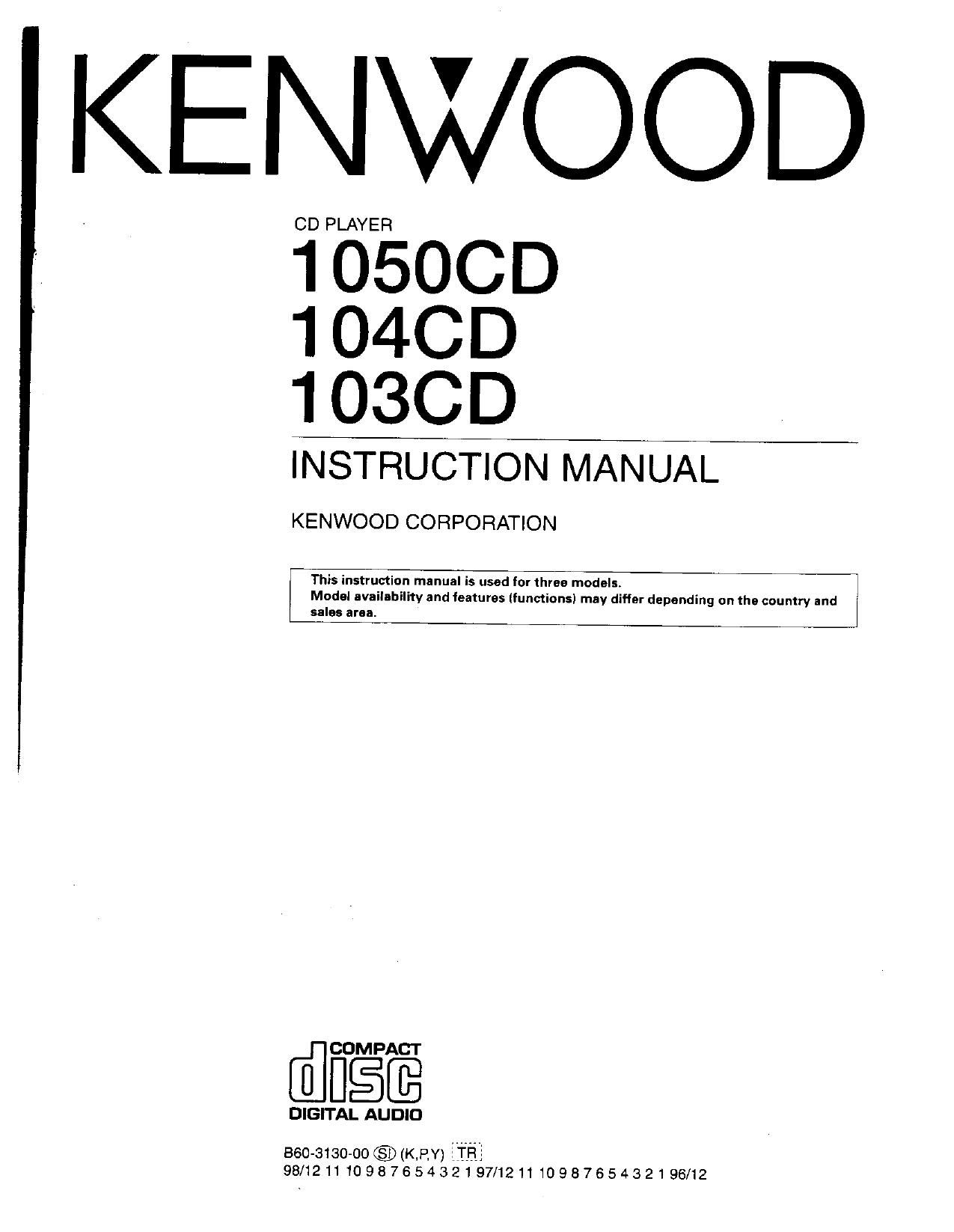

Page 1

KENWOOD

CD PLAYER

1 OSOCD
1 O4CD
1 O3CD

INSTRUCTION MANUAL

KENWOOD CORPORATION

This instruction manual is used for three models.
Model availability and features (functions) may differ depending on the country and '
sales area. I

I lfiOMPACT
DIGITAL AUDIO

860-3130-00 ® (K,P,Y) LIB.)
98/12111098765432197/12111098765432196/12

Page 2

Introduction

Unpacking

Unpack the unit carefully and make sure that all accessories are put aSIde
so they w4|l not be lost

Examine the unit for any possibility oi shlpping damage If your unit lS
damaged or falls to operate, notify your dealer immediately If your unit
was shipped to you directly, notify the shipping company Without delay
Only the consrgnee (the person or company recelyrng the unitl can file a
claim against the carrier for shipping damage

We recommend that you retain the original carton and packing materials
for use should you transport or ship the unit in the luture

For the U.S.A.
CAUTION:

Use of controls adjustment or performance of procedures other
than those specified herein may result in hazardous radiation
exposure.

In compliance with Federal Regulations, following are
reproductions of labels on, or inside the product
relating to laser product safety.

KENWOOD CORPORATION
29673, ISHIKAWA-CHO, HACHIOJl-SHI,
TOKYO, JAPAN

KENWOOD CORR CERTIFIES THIS EQUIPMENT
CONFORMS TO DHHS REGULATIONS NO. 21
CFR 1040.10, CHAPTER I, SUBCHAPTER J.

Location: Back Panel

RE OUIREMENT BY NEDERLAND GAZETTE

Batteries are supplied With this product When
they empty, you should not throw away,
Instead, hand them in as small chemical waste.

Accessories

Remote control unit 11)
(Except for IOSCD)

Audio cord Ii)

BatteneisG/AA) {2)

System control cord . (ll (Except for 103CDl

AC plug adaptor (ll
(\ i
3

Accessory only tor regions
where use IS necessary

The marking of products using lasers
(Except for some areas)

CLASS 1
LASER PRODUCT

The marking Is located on the rear panel and says that the component
uses laser beams that have been classlhed as Class 1 It means that
the unit Is utllrzrng laser beams that are of a weaker class There is no
danger of hazardous radiation outsrde the unit

Contents

io

Introduction
, Special features ..........

7 A Before applying power .
A Safety precautions ..
System connections
Before operation.
Controls and indicators
Operation of remote control unit
(Except for 103CDI
Loading/unloading discs .
Listening from the first track

Caution : Read the pages marked & carefully to ensure safe
operation.

Programmed play (PGM mode) . 14

Repeated play . 16
Random play 17
Editing (EDIT) 18

Normal EDIT.

MULTI EDIT 20
Timer operation . 21
In case of difficulty 2

Specifications .

Z lDSOCD/IMCD/IOSCD (En)

Page 6

UBIOIB operatlan

Disc handling precautions

Handling
Hold compact discs so that you do not
touch the playing surface

Label Side

Playmg 5 eDo not attach paper or tape to either
the playing side or the label side of
compact discs.

uThe paste left onthe label surface alter
a sticker has been peeled off IS a factor
which may cause malfunction if the
surface is sticky due to remaining
paste, be sure to clean it With alcohol
before use.

Sticky paste

Cleaning

if fingerprints or foreign matter become at
tached to the disc, lightly Wipe the disc With
a soft cotton cloth (or similarl from the
center of the disc outwards in a radial man-

ner
Storage

When a disc is not to be played for a long
period of time, remove it from the CD

player and store it in its case

Caution on disc used

Never play a cracked or warped disc.

During playback, the disc rotates at high speed in the player
Therefore, to avOld danger, never use a cracked or deformed drsc or
a disc repaired wrth tape or adhesive agent

Do not use cleaning discs.
Please do not use commercially available cleaning discs they may
damage the internal mechanism.

Discs which can be played with this unit

CD (12 cm. 8 cm), CDV (only the audio part]

I With CD76 (CD Graphicsl discs, this unit can play only the audio.

Cleaning

Do not use volatile solvents such as alcohol, paint thinner, gasolline, or
benZIne, etc to clean the cabinet Use a clean dry cloth.

Do not use Contact cleaners because it could cause a malfunction Be
speCIally careful against contact cleaners containing oil, for they may
deform the plastic components,

Note related to transportation and movement

Before transporting or movmg this unit, carry out the followmg opera
tions.

. Turn the power ON but do not load a disc.
Wait a few seconds and verify that the display shown appears.
Press the A OPEN/CLOSE key to open the disc tray completely.
Press the A OPEN/CLOSE key again to close the disc tray
Wait a few seconds and turn the power OFFV

mwa-n

Ian-s

.7.-w
nuuur!
"WI-Id

ma :llSE

Beware of condensation

When water vapor comes into contact With the surface of cold mate-
rial, water drops are produced

if condensation occurs, correct operation may not be possible, or the
unit may not function correctly.

This is not a malfunction, however, the unit should be dried.

lTo do this, turn the POWER sWitch ON and leave the unit as it is for
several hours l

L

6 lOSOCD/l 04CD/1 OSCD lEril

Be speCIally careful in the followrng conditions.

e When the unit is brought from a cold place to a warm place, and
there is a large temperature difference.

0 When a heater starts operating

0 When the unit is brought from an air-conditioned place to a place of
high temperature With high humidity.

e When there is a large difference between the internal temperature
of the unit and ambient temperature, or in conditions where conden-
sation occurs eaSIIy.

Page 19

P MODE key Open/Close key (E)

m o __ » 0 Oman:
El "gig # _ o a !0 CE
LL.

0
CHECK key
Play/Pause key
I To check the edited contents I To play an edited program
1 r x

r
Press the CHECK key.

a To play the A file:

mdlcator hghts up I

The tunes in the A file are played in sequence and the

During normal EDlT- player enters pause mode at the beginning of the 8 file

When the C key is pressed, the track Nos. of edlted songs
WIH automatically be dismayed tn the order they are edrted.

(2 To play the B file:

During MULTI EDIT:
Every time the CHECK key is pressed, the track Nos. are drsplayed
in the edited order

e Playback stops alter havrng played the B We.
k 1 L J

I To record an edited program I To clear the edited contents

The CCRS recording function may be used by connecting the
CD player to any KENWOOD cassette deck with an lXSl. [X58]. Normal EDIT: MULTI EDIT:

[SUSY mark, using a system control cord.
For details please refer to Recording of CD playback section press mm, of mess keys
in your cassette deck instruction manual.
hm am
A
I} r . a . s .
n 3 min i r . - «n
' l u i. u .4 u
©®®®© [U l CEPSMM.
CCRS display Press the key m

the stop mode

e H you have a cassette deck capable of Double-speed recording, 0 Pressmg the C
use Normalvspeed recording. Clears the edited contents.
Notes'

1 . While you can edit thh a different trme setting to that of the tape you are using, part of the tape may be left With nothmg recorded on lt. or the
last track on srde A or side 8 may be cut short.
2 The EDlT function may not operate properly for discs havmg only one track or havrng tracks of long duration such as claSSIcal rnuslc.

rosoco/maconoacmem 19

Page 21

fimer operation

#

With this function and commercially-available audio timer, playback can be started at the desired time.

V 1
1 Connect the power cord.
The am Well AC outlet
l '1 .t L?
0 Connect each unlt's power cord to the SWITCHED outiet oi the umer :Lfl--.: a:
Rfe m t to al fth t
e e rto e ms rucr n menu 0 e rmer Amphher \
Connect to the
SWTCHED outlet
2 Turn on the ampl
3 Insert a disc and set the starting time of the timer.
0 Set the timer whrle the unit and the amplifier are ON
I Be Careful} of the votume settrng of the amphfrer {The loud sound may damage the speakers)
Playback starts at the set time.
k 4
Note:

When operatmg the umt other than CD player usmg an audro timer be sure to remove the drsc irom the CD player,

1050CD/1oacuhoacmEnr 21
