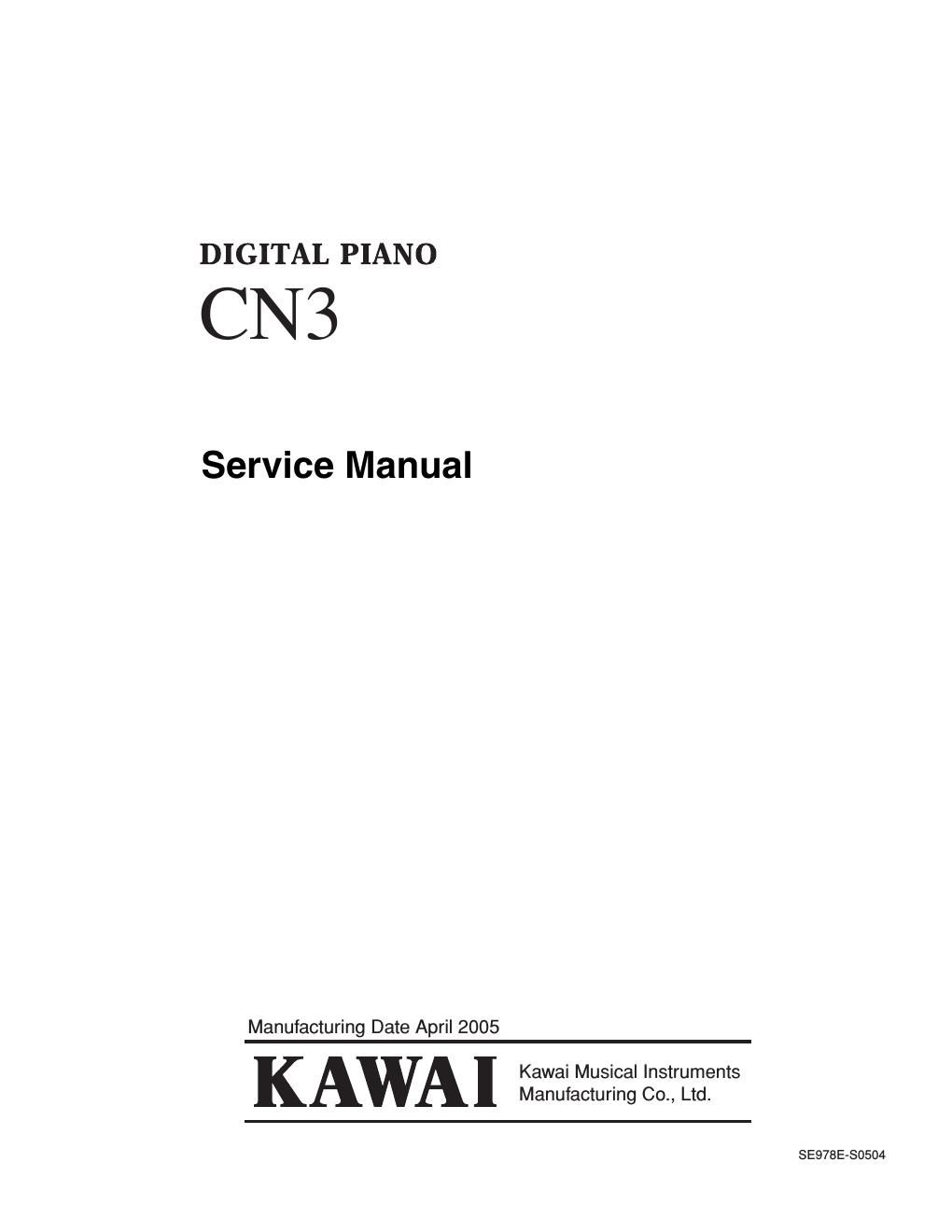

Kawai cn3 service manual

Page 2

I Contents

Specifications ................................................................... 2
Hardware List...

Case Assembly
Key Cover Assembly .. . 5
Stand Assembly ............................................................... 6

Panel Assembly ......
Top Board Assembly ..
Keyboard Unit (RG88 Type) ............................................. 9

Keyboard Disassembling Procedure . .. 10
Electronic Parts List .......................... .. 11
P.W.B. KEP-126 (11)(12) Assembly Parts List .............. 12
P.W.B. KEP-058 ~ 061 (4) Assembly Parts List ...... .. 13
P.W.B. KEP-064 ~ 068 (26)(27) Assembly Parts List 14
Cable Wiring Specification ............................................. 16
Block Diagram ....................................... .. 17
P.W.B. KEP-126 (11) Assembly [TOP] .. 18
P.W.B. KEP-126 (11) Assembly [BACK] .. .. 19

l Specifications

P.W.B.
P.W.B.
P.W.B.
P.W.B.
P.W.B.
P.W.B.
P.W.B.
P.W.B.
P.W.B.
P.W.B.
P.W.B.
P.W.B.
P.W.B.
P.W.B.

KEP-126 (12) Assembly [TOP] ........................... 20
KEP-126 (12) Assembly [BACK]
KEP-126 Circuit 1/4
KEP-126 Circuit 2/4 ..
KEP-126 Circuit 3/4 ............................................ 24
KEP-126 Circuit 4/4 ................
KEP-058 - 061 (4) Assembly. ..
KEP-058 - 061 Circuit 1/3 ..................................
KEP-058 - 061 Circuit 2/3
KEP-058 - 061 Circuit 3/3 ..
KEP-064 - 068 (26) Assembly ...........................
KEP-064 - 068 (27) Assembly ..
KEP-064 - 068 Circuit 1/3 ...... ..
KEP-064 - 068 Circuit 2/3 ..................................
P.W.B. KEP-064 - O68 Circuit 3/3
P.W.B. KKB-015 Circuit ..
Key Switch Matrix .......

Keyboard 88 Keys, Advanced Hammer Action IV
Polyphony Maximum 96
Number of Sound 27

Sound Categories
Choir & Pad, Bass

Piano 1, Piano 2, Electric Piano, Drawbar, Church Organ, Harpsi & Mallets, Strings,

Effects Reverb (5), Chorus, Tremolo, Delay (3), Rotary (2)

Temperaments Equal (Piano Only), Mersenne pure (Major), Mersenne pure (minor), Pythagorea, Meantone,
Werckmeister III, Kirnberger III, Equal (flat), Equal

Recorder 2 Tracks, 3 Songs

The total memory capacity of the recorder is approximtely 15,000 notes.

Other Features

Concert Magic (88 Preset Songs), Volume, Dual, Split, Balance Slider, Lesson Function,
Metronome, Transpose, Tune, Lower Octave Shift, Lower Pedal On/Off,

Touch Curve (Light 1, Light 2, Normal, Heavy 1, Heavy 2, Off),

MIDI (16 part multi-timbral capability)

Pedals Sustain, Sostenuto, Soft

Jacks Headphones (2), LINE IN (L, R), LINE OUT (L/MONO, Ft), MIDI (IN, OUT)
Output Power 16 W x 2

Speakers 16 cm x 2

Power Consumption 50 W

Finish

Rosewood, Mahogany, European Cherry

1392 X 470 x 827 mm
55" X 19" X 33"

Dimensions (W x D x H)
(without Music Rack)

Weight (without bench) 42.5 kg, 94 lbs

* Specifications are subject to change without notice.
