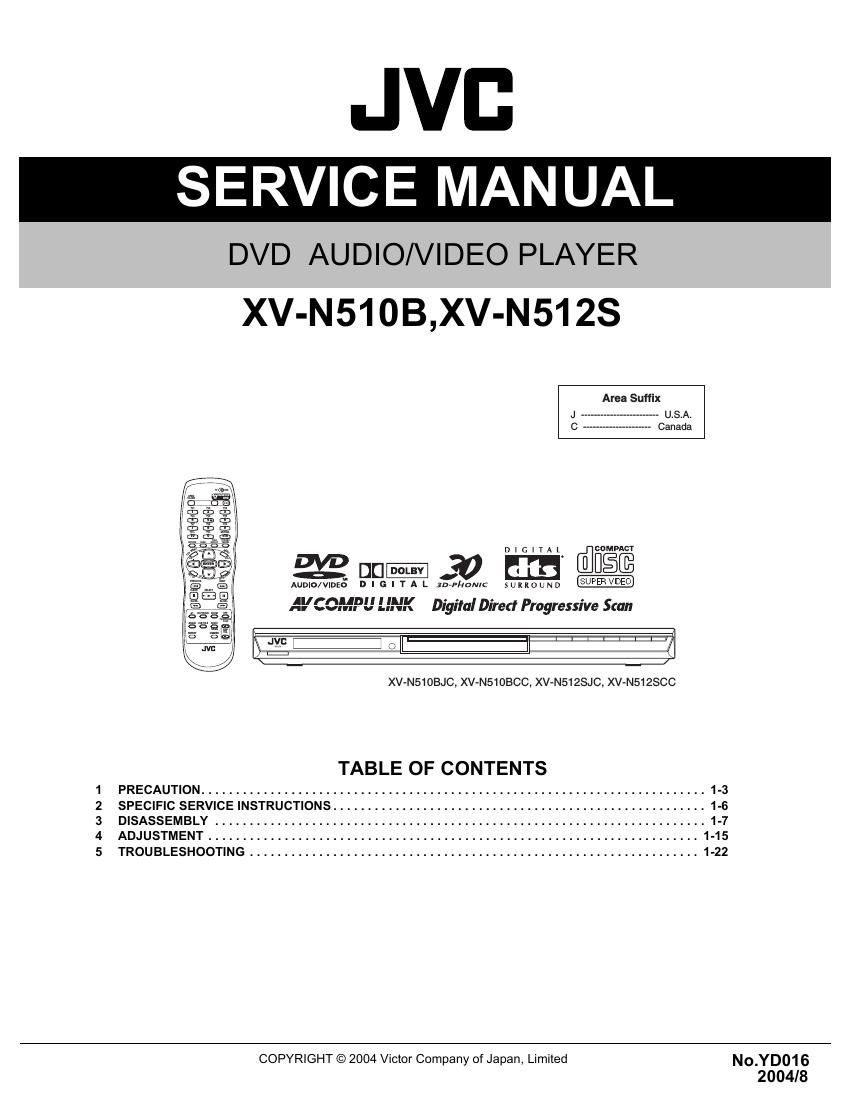

Jvc XVN 510 B Service Manual

Page 2

SPECIFICATION

XV-N51OB,XV-N5125 for J,C
General

Readable discs DVD AUDIO, DVD VIDEO, DVD-R (Video format), DVD-RW (Video formatNR format), DVD-RAM (VR
format). SVCD, Video CD. Audio CD (CD-DA), CD-R/RW (CD-DA, SVCD, Video CD, MP3/WMA format,

JPEG)

Video format REMOTE, 480i (Interlaced scan)/480p (Progressive scan) selectable

Other

Power requirements AC 120 V~, 60 Hz

Power consumption 13 W (POWER ON), 2.0 W (STANDBY mode)

Mass
Dimensions (W X H X D)

1.9 k g (4.2 lbs)
435 mm>< 44 mm X 258.6 mm ((17-3/16 inch x 1-3/4 inch >< 10-3/16 inch)

Video outputs

COMPONENT (pinjacks) Y Output: 1.0 Vp-p (75 Q)

PB/PR Output: 0.7 Vp-p (75 Q)

VIDEO OUT (pin jack) 1.0 Vp-p (75 O)

S-VlDEO OUT (8 jack) Y Output: 1.0 Vp-p (75 Q)
C Output: 286 mVp-p (75 Q)

500 lines or more

Horizontal resolution

Audio outputs

ANALOG OUT (pin jack)
DIGITAL OUT (COAXIAL)
DIGITAL OUT (OPTICAL)

2.0 Vrms (10 k0)
0.5 Vp-p (75 S2 termination)
-21 dBm to -15 dBm (peak)

Audio characteristics

Frequency response CD (sampling frequency 44.1 kHz):2 Hz to 20 kHz

DVD (sampling frequency 48 kHz):2 Hz to 22 kHz
(4 Hz to 20 kHz for DTS and Dolby Digital bitstream signals)

DVD (sampling frequency 96 kHz):2 Hz to 44 kHz
DVD (sampling frequency 192 kHz/176.4 kHz):2 Hz to 88 kHz

16 bit: More than 98 dB
20 bit/24 bit: More than 106 dB

Dynamic range

Wow and flutter
Total harmonic distortion

Unmeasurable (less than +- 0.002%)
16 bit: less than 0.006%
20 bit/24 bit: less than 0.005%

* Notes for PX model (Check the specification indication on the rear panel.)
Power requirements AC 110 V to 240 V , 50 Hz/60 Hz
Power consumption 13 W (POWER ON), 2.0 W(STANDBY mode)

- Manufactured under license from Dolby Laboratories. Dolby","MLP Lossless and the double-D symbol are trademarks of Dolby
Laboratories.

- DTS" and DTS Digital Surround are registered trademarks of Digital Theater Systems, Inc.

- This product incorporates copyright protection technology that is protected by US. patents and other intellectual property rights. Use
Of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses
only unless othenNise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

Digital output signal chart

Output

DISC type DOLBY DIGITAL/POM

PCM ONLY STREAM/PCM

DVD with 48144.1 kHz, 16/20/24
bit linear PCM

DVD AUDIO with MLP

DVD with 192/176.4/96/88.2 kHz,
16/22/24 bit linear PCM

DVD AUDIO with MLP

DVD with DTS

48/44.1 kHz, 16/20/24 bit, stereo linear PCM

48/44.1 kHz, 16/20/24 bit, stereo linear PCM (Down sampling)

48 kHz, 16 bit, stereo linear PCM DTS bitstream

DVD with Dolby Digital

48 kHz, 16 bit, stereo linear PCM Dolby Digital bitstream

SVCD/Video CD/Audio CD

44.1 kHz, 16 bit, stereo linear PCM

Audio CD with DTS

44.1kHz, 16 bit, stereo linear PCM I DTS bitstream

CD-R/RW with MP3/WMA

Linear PCM

1-2 (No.YD016)
