Jvc XVN 50 BK Service Manual

This is the 89 pages manual for Jvc XVN 50 BK Service Manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 89
left right
Jvc XVN 50 BK Service Manual

Extracted text from Jvc XVN 50 BK Service Manual (Ocr-read)


Page 1

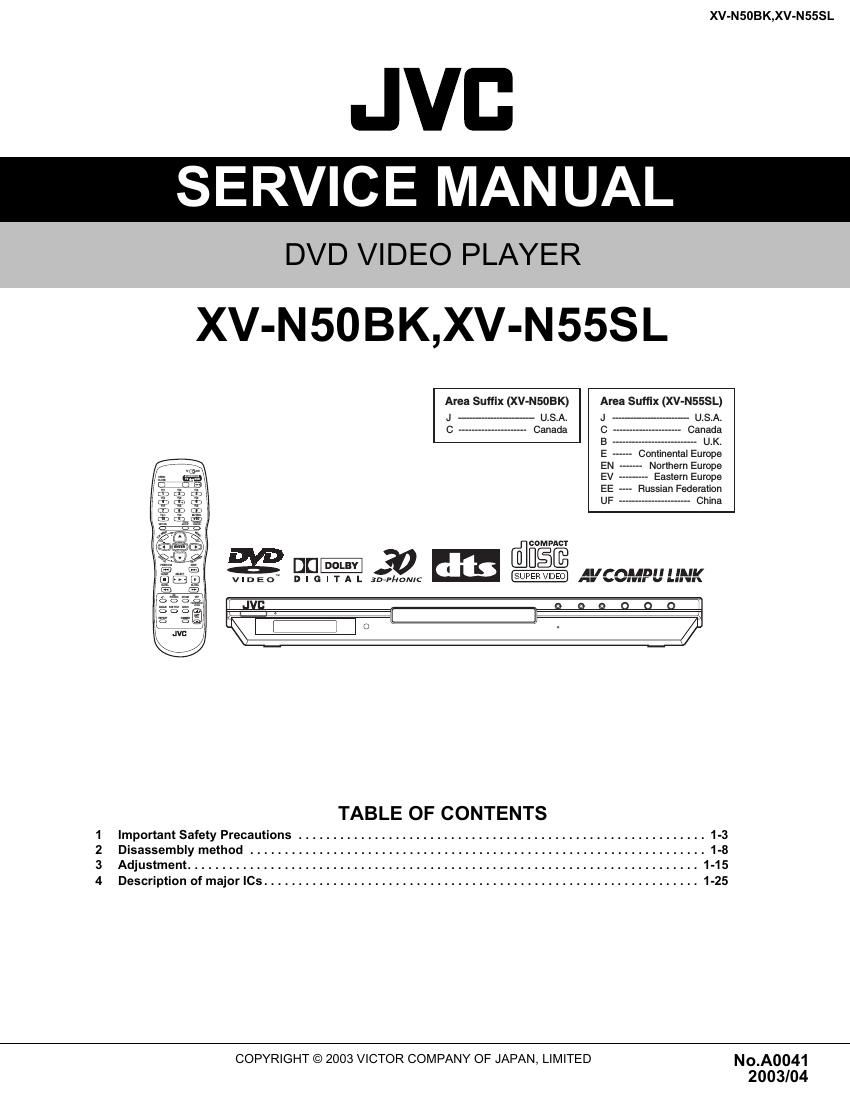

XV-N50BK,XV-N55SL 1-2 (No.A0041) SPECIFICATION - Specifications and appearance are subject to change without prior notice. - Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademark of Dolby Laboratories. - Manufactured under license from Digital Theater Systems, Inc. DTS and DTS Digital Surround are registered trademarks of Digital Theater Systems, Inc. General Readable discs DVD VIDEO, DVD-R (Video format), DVDRW(Video format), +RW (Video format),SVCD, Video CD, Audio CD (CD-DA),MP3/WMAformat, JPEG, CD-R/RW(CDDA,SVCD,Video CD, MP3/WMA format, JPEG) Video format NTSC, 480i (Interlaced scan) / 480p(Progressive scan) selectable Other Power requirements AC 120 V, 60 Hz Power consumption 11 W (POWER ON), 0.7 W (STANDBYmode) Mass 2.1 kg (4.7 lbs) Dimensions (W xH x D) 435 mm x 45 mm x 270.5 mm (17-3/16 inch x 2-13/16 inch x 10-11/16 inch) Video outputs COMPONENT (pin jacks) Y Output: 1.0 Vp-p (75 ohm) PB/PR Output: 0.7 Vp-p (75 ohm) VIDEO OUT (pin jack)1.0 Vp-p (75 ohm) S-VIDEO OUT (S jack) Y Output: 1.0 Vp-p (75 ohm) C Output: 286 mVp-p (75 ohm) Horizontal resolution 500 lines or more Audio outputs ANALOG OUT (pin jack) 2.0 Vrms (10 kohm) DIGITAL OUT (COAXIAL) 0.5 Vp-p (75 ohm termination) DIGITAL OUT (OPTICAL) -21 dBm to -15 dBm (peak) Audio characteristics Frequency response CD (sampling frequency 44.1 kHz):2 Hz to 20 kHz DVD (sampling frequency 48 kHz):2 Hz to 22 kHz(4 Hz to 20 kHz for DTS and Dolby Digital bitstream signals) DVD (sampling frequency 96 kHz)2 Hz to 44 kHz Dynamic range 16 bit: More than 98 dB 20/24 bit: More than 100 dB Wow and flutter Unmeasurable (less than + 0.002%) Total harmonic distortion less than 0.006%

Page 2

XV-N50BK,XV-N55SL (No.A0041)1-3 SECTION 1 Important Safety Precautions 1.1 Safety Precautions (1) This design of this product contains special hardware and many circuits and components specially for safety purposes. For continued protection, no changes should be made to the original design unless authorized in writing by the man- ufacturer. Replacement parts must be identical to those used in the original circuits. Services should be per- formed by qualified personnel only. (2) Alterations of the design or circuitry of the product should not be made. Any design alterations of the product should not be made. Any design alterations or additions will void the manufacturers warranty and will further relieve the manufacture of responsibility for personal injury or property damage resulting therefrom. (3) Many electrical and mechanical parts in the products have special safety-related characteristics. These characteris- tics are often not evident from visual inspection nor can the protection afforded by them necessarily be obtained by us- ing replacement components rated for higher voltage, watt- age, etc. Replacement parts which have these special safety characteristics are identified in the Parts List of Service Manu- al. Electrical components having such features are iden- tified by shading on the schematics and by ( ) on the Parts List in the Service Manual. The use of a substitute re- placement which does not have the same safety character- istics as the recommended replacement parts shown in the Parts List of Service Manual may create shock, fire, or oth- er hazards. (4) The leads in the products are routed and dressed with ties, clamps, tubings, barriers and the like to be separated from live parts, high temperature parts, moving parts and/or sharp edges for the prevention of electric shock and fire hazard. When service is required, the original lead routing and dress should be observed, and it should be confirmed that they have been returned to normal, after reassembling. (5) Leakage shock hazard testing) After reassembling the product, always perform an isolation check on the exposed metal parts of the product (antenna terminals, knobs, metal cabinet, screw heads, headphone jack, control shafts, etc.) to be sure the product is safe to operate without danger of electrical shock. Do not use a line isolation transformer during this check. - Plug the AC line cord directly into the AC outlet. Using a "Leakage Current Tester", measure the leakage current from each exposed metal parts of the cabinet, particular- ly any exposed metal part having a return path to the chassis, to a known good earth ground. Any leakage cur- rent must not exceed 0.5mA AC (r.m.s.). - Alternate check method Plug the AC line cord directly into the AC outlet. Use an AC voltmeter having, 1,000 ohms per volt or more sensitivity in the following manner. Connect a 1,500 ohm 10W resistor paralleled by a 0.15 µF AC-type capacitor between anexposed metal part and a known good earth ground. Measure the AC voltage across the resistor with the AC voltmeter. Move the resistor connection to each exposed metal part, particularly any exposed metal part having a return path to the chassis, and measure the AC voltage across the resistor. Now, reverse the plug in the AC outlet and repeat each measurement. Voltage measured any must not exceed 0.75 V AC (r.m.s.). This corresponds to 0.5 mA AC (r.m.s.). 1.2 Warning (1) This equipment has been designed and manufactured to meet international safety standards. (2) It is the legal responsibility of the repairer to ensure that these safety standards are maintained. (3) Repairs must be made in accordance with the relevant safety standards. (4) It is essential that safety critical components are replaced by approved parts. (5) If mains voltage selector is provided, check setting for local voltage. 1.3 Caution Burrs formed during molding may be left over on some parts of the chassis. Therefore, pay attention to such burrs in the case of pre- forming repair of this system. 1.4 Critical parts for safety In regard with component parts appearing on the silk-screen printed side (parts side) of the PWB diagrams, the parts that are printed over with black such as the resistor ( ), diode ( ) and ICP ( ) or identified by the " " mark nearby are critical for safety. When replacing them, be sure to use the parts of the same type and rating as specified by the manufacturer. (Except the JC version)
