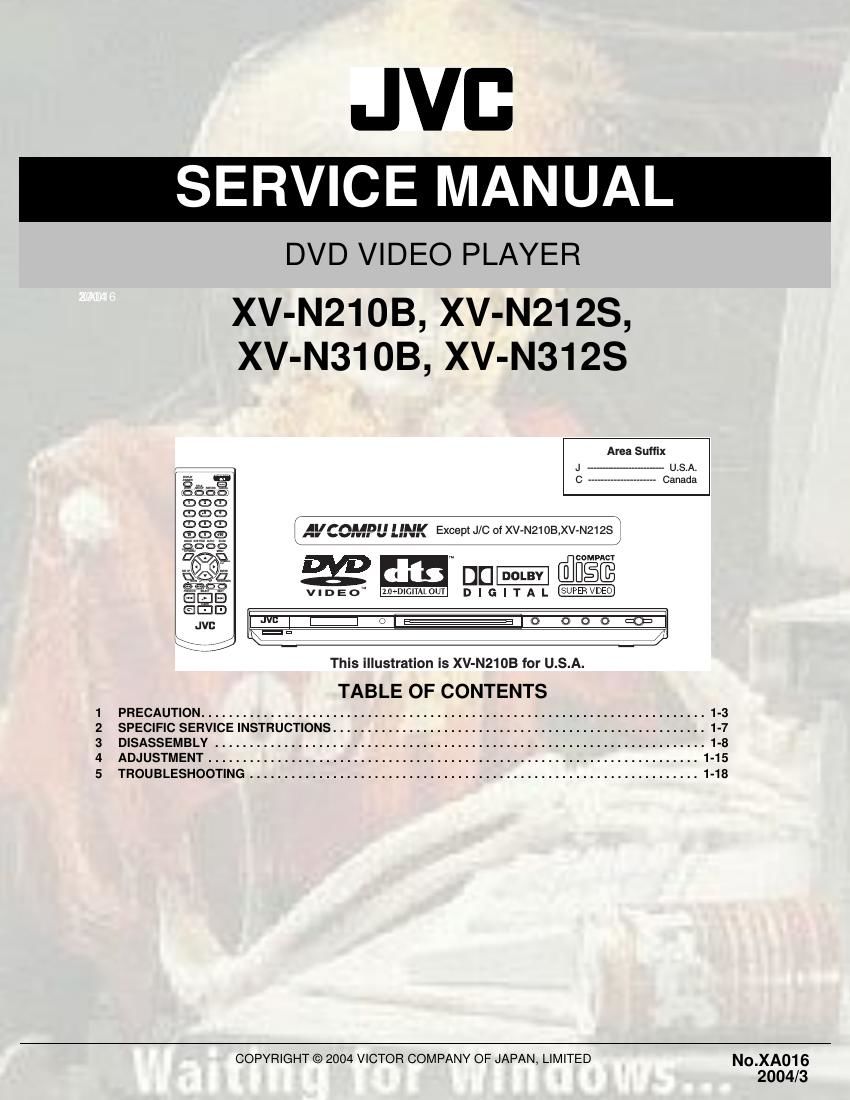

Jvc XVN 312 S Service Manual

Page 2

SPECIFICATION

(For version J of XV-N31OB.)

General
Readable discs DVD VIDEO, DVD-R (Video format). DVD-RW (Video format).SVCD, Video CD, Audio CD (CD-DA),
JPEG, CD-R/RW(CD-DA, SVCD, Video CD, MP3 format. JPEG,MPEG-4)
Video format NTSC, 480i (Interlaced scan)/480p (Progressive scan) selectable
Other
Power requirements AC 120 V~, 60 Hz
Power consumption 10.0 W (POWER ON), 2.0 W (STANDBY mode)
Mass 1.6 k g (3.6 lbs)

Dimensions (W X H x D) 435mm X 44mm X 201mm (17-3/16 inch x 1-3/4 inc >< 7-15/16 inch)
Video outputs

COMPONENT (pin jacks) Y Output: 1.0 Vp»p (75 £2)
Pb/Pr Output: 0.7Vp»p (75 Q)
VIDEO our (pin jack) 1.0 Vp-p (75 n)

S-VIDEO OUT (8 jack) Y Output: 1.0 Vp-p (75 Q)

C Output: 286 mVp-p (75 9)
Horizontal resolution 500 lines or more

Audio outputs

ANALOG OUT (pin jack) 2.0 Vrms (10 k0)
DIGITAL OUT (COAXIAL) 0.5 Vp»p (75 O termination)
Audio characteristics

Frequency response CD (sampling frequency 44.1 kHz):2 Hz to 20 kHz

DVD (sampling frequency 48 kHz) :2 Hz to 22 kHz
(4 Hz to 20 kHz for DTS and Dolby Digital bitstream signals)

DVD (sampling frequency 96 kHz) :2 Hz to 44 kHz

Dynamic range 16 bit: More than 98 dB
20 bit/24 bit: More than 100 dB
Wow and flutter Unmeasurable (less than +- 0.002%)

Total harmonic distortion less than 0.009%

*Notes for PX model (Check the specification indication on the rear panel.)
Power requirements AC 110 V to 240 V~, 50 Hz/60 Hz
Power consumption 11.0 W (POWER ON), 2.0 W (STANDBY mode)

Specifications and appearance are subject to change without prior notice.

' Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarkes of Dolby Laboratories.
DTS and "DTS 2.0+Digital Out" are trademarks of Digital Theater Systems, Inc.

USE OF THIS PRODUCT IN ANY MANNER THAT COMPLIES WITH THE MPEG-4 VISUAL STANDARD IS PROHIBITED, EX-
CEPT FOR USE BY A CONSUMER ENGAGING IN PERSONAL AND NON»COMMERCIAL ACTIVITIES.

' This product incorporates copyright protection technology that is protected by method claims of certain US. patents and other in-
tellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology
must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise au-
thorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

1-2 (N0.XA016)
