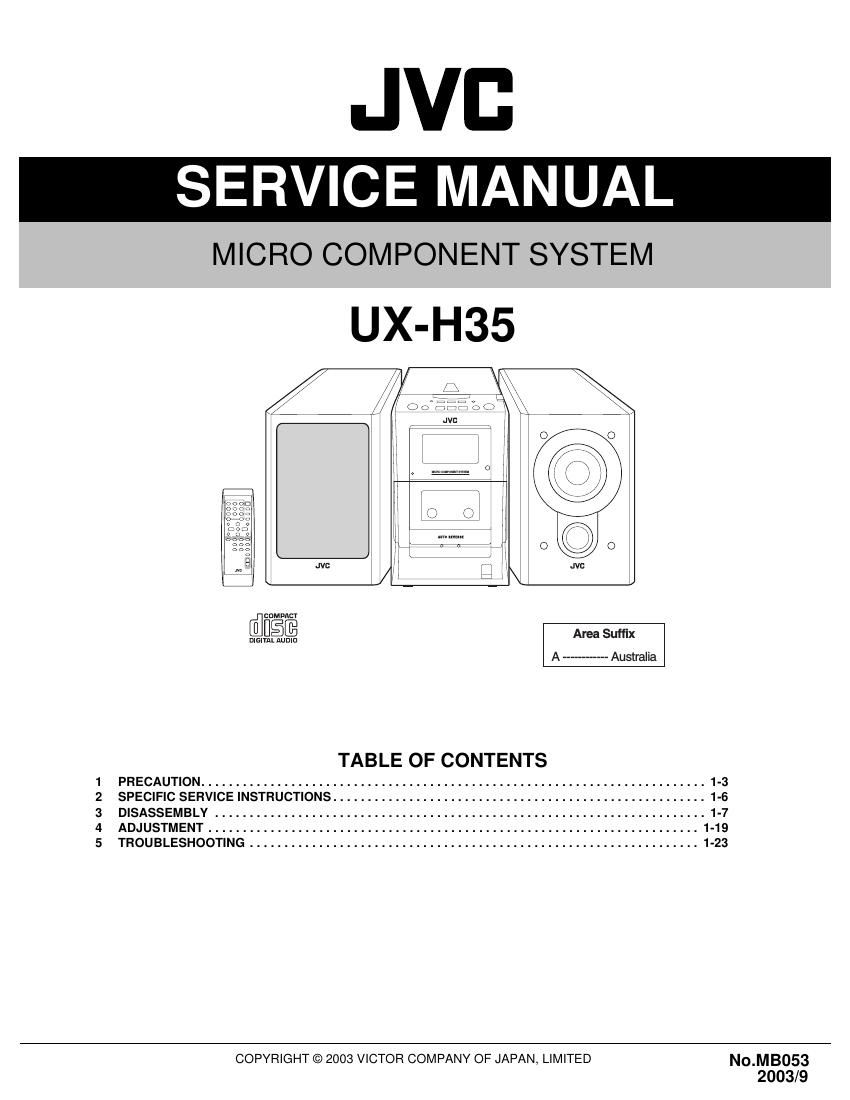

Page 1
JVC
SERVICE MANUAL
MICRO COMPONENT SYSTEM
UX-H35
// , «_
,/ ,/ r, I
_ :7 I _, 1:, I
/
_ I I
M JVI:
' I
DIGIIAL AUDIU Area SUffix
A ------------ Australia
TABLE OF CONTENTS
1 PRECAUTION ......................................................................... 1-3
2 SPECIFIC SERVICE INSTRUCTIONS ...................................................... 1-6
3 DISASSEMBLY ....................................................................... 1-7
4 ADJUSTMENT ....................................................................... 1-19
5 TROUBLESHOOTING ................................................................. 1-23
COPYRIGHT © 2003 VICTOR COMPANY OF JAPAN, LIMITED No_MBO53
2003/9
Page 2
SPECIFICATION
Amplifier Output Power 20 W (10 W + 10 W) at 4 £2 (10% THD)
Audio input sensitivity/Impedance (at1 kHz) AUX 500 mV/48.75 k0
Speakers/Impedance 4 0
Tuner FM tuning range 87.50 MHZ - 108.00 MHz
AM tuning range 522 kHz - 1 629 kHz
CD player Dynamic range 85 dB
Signal-to-noise ratio 90 dB
Wow and flutter Immeasurable
Cassette deck
Frequency response Normal (type I)
50 HZ-15000 Hz
Wow and flutter
0.15% (WRMS)
Speaker Speaker units Full range 8.0 cm cone X 1
Impedance 4 9
Dimensions (approx.) 135 mm x 203 mm X 190 mm (W/H/D)
Mass (approx.) 1.7 kg each
General Power requirement AC IN 240 V , 50 Hz
DC IN 12 V, 4 A
Power consumption
35 W (at operation)
3.0 W (on standby)
Dimensions (approx.)
412 mm x 208 mm X 275 mm (W/H/D)
Mass (approx.)
6.5 kg
1-2 (NUMBOSS)
