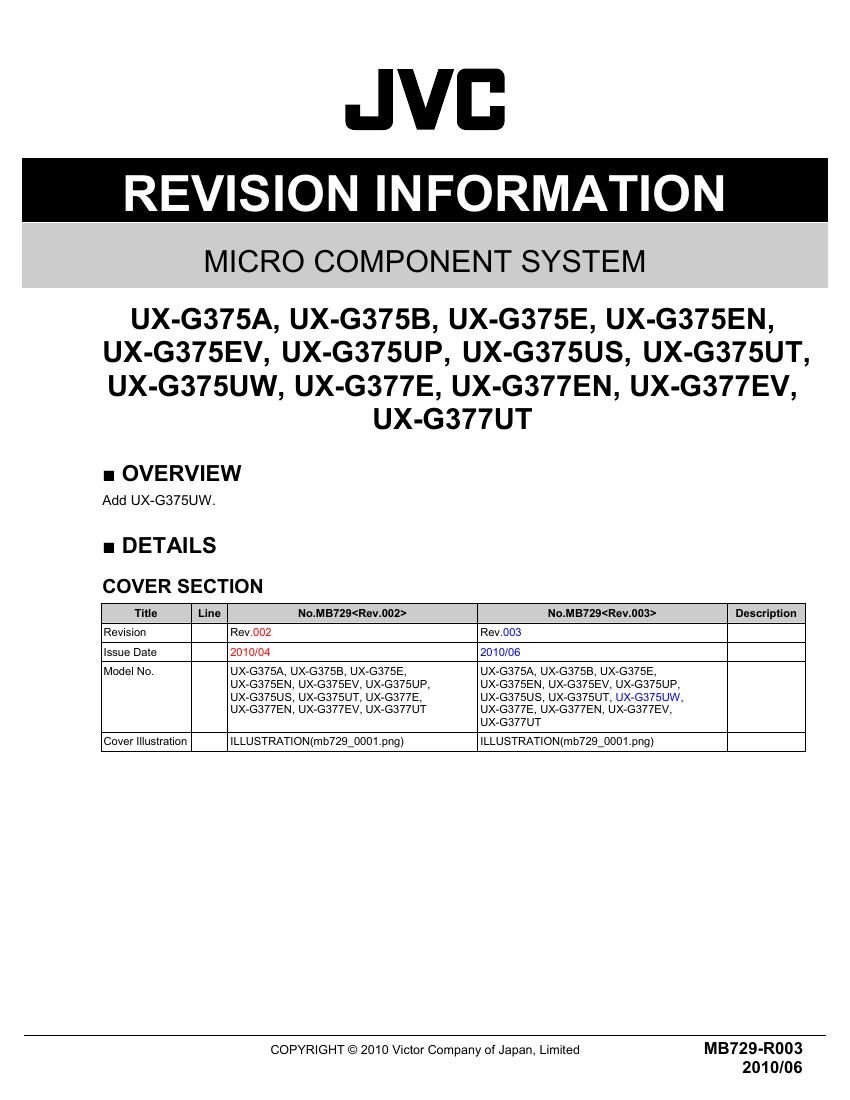

Extracted text from Jvc UXG 375 Service Manual Info (Ocr-read)
Page 1
2 (MB729-R003)
PARTS LIST
MODEL No. LIST
Model No. No.MB729 UX-G375A 09 UX-G375B 05 UX-G375E 06 UX-G375EN 07 UX-G375EV 08
Model No. No.MB729 UX-G375UP 0B UX-G375US 0A UX-G375UT 0C UX-G375UW 0D UX-G377E 01
Model No. No.MB729 UX-G377EN 02 UX-G377EV 03 UX-G377UT 04
General assembly [M1MM]
Part No. ! Symbol or Part Name Description Qty Models
M1MM 53 ------------ CD7111092000900 RATING LABEL (Addition) 1 0D ! M1MM 74 CD3307020200010 CD3307020200010 VOLTAGE SELECT SW 1 04,0A,0C,0D
Electrical parts list MCU board [01]
Part No. ! Symbol or Part Name Description Qty Models
01 C5 ------------ CD1121102082021 C CAPACITOR (Addition) 1 0D 01 C6 ------------ CD1121102082021 C CAPACITOR (Addition) 1 0D 01 C10 ------------ CD1121105052020 C CAPACITOR (Addition) 1 0D 01 C201 ------------ CD1121102082021 C CAPACITOR (Addition) 1 0D 01 C223 ------------ CD1121105052020 C CAPACITOR (Addition) 1 0D 01 C224 ------------ CD1121105052020 C CAPACITOR (Addition) 1 0D 01 C241 ------------ CD1121681081021 C CAPACITOR (Addition) 1 0D 01 C242 ------------ CD1121681081021 C CAPACITOR (Addition) 1 0D 01 C245 ------------ CD1121105052020 C CAPACITOR (Addition) 1 0D 01 C246 ------------ CD1121105052020 C CAPACITOR (Addition) 1 0D 01 C262 ------------ CD1121105052020 C CAPACITOR (Addition) 1 0D 01 C264 ------------ CD1121105052020 C CAPACITOR (Addition) 1 0D 01 C268 ------------ CD1121105052020 C CAPACITOR (Addition) 1 0D 01 C269 ------------ CD1121105052020 C CAPACITOR (Addition) 1 0D 01 C278 ------------ CD1121105052020 C CAPACITOR (Addition) 1 0D 01 C279 ------------ CD1121105052020 C CAPACITOR (Addition) 1 0D 01 C280 ------------ CD1121105052020 C CAPACITOR (Addition) 1 0D 01 C284 ------------ CD1121102082021 C CAPACITOR (Addition) 1 0D 01 C285 ------------ CD1121102082021 C CAPACITOR (Addition) 1 0D 01 C286 ------------ CD1121105052020 C CAPACITOR (Addition) 1 0D 01 C325 ------------ CD1121681081021 C CAPACITOR (Addition) 1 0D 01 C326 ------------ CD1121681081021 C CAPACITOR (Addition) 1 0D 01 C332 ------------ CD1121105052020 C CAPACITOR (Addition) 1 0D 01 C336 ------------ CD1121105052020 C CAPACITOR (Addition) 1 0D
SMPS board [02]
Part No. ! Symbol or Part Name Description Qty Models
! 02 C7 ------------ CD1131471082000 C CAPACITOR (Addition) 1 0D 02 F3 ------------ CD2004300008700 RESETTABLE FUSE (Addition) 1 0D 02 V1 ------------ CD1414005600011 TRANSISTOR (Addition) 1 0D
Display board [03]
Part No. ! Symbol or Part Name Description Qty Models
03 CH03 ------------ CD1121102082021 C CAPACITOR (Addition) 1 0D 03 CH04 ------------ CD1121102082021 C CAPACITOR (Addition) 1 0D 03 CK402 ------------ CD1121102082021 C CAPACITOR (Addition) 1 0D 03 CK403 ------------ CD1121102082021 C CAPACITOR (Addition) 1 0D
CD board [04]
Part No. ! Symbol or Part Name Description Qty Models
04 C107 ------------ CD1121105052020 C CAPACITOR (Addition) 1 0D 04 C129 ------------ CD1121105052020 C CAPACITOR (Addition) 1 0D 04 C135 ------------ CD1121102082021 C CAPACITOR (Addition) 1 0D 04 C148 ------------ CD1121105052020 C CAPACITOR (Addition) 1 0D 04 C166 ------------ CD1121102082021 C CAPACITOR (Addition) 1 0D
Page 2
(MB729-R003) 3
Packing and accessories [M3MM]
Part No. ! Symbol or Part Name Description Qty Models
M3MM A2 ------------ CD7202092002200 INST BOOK (Addition) 1 0D M3MM A3 ------------ CD7202092002300 INST BOOK (Addition) 1 0D M3MM A8 ------------ CD1901000013300 REMOCON UNIT (Addition) 1 04,09,0A,0B,0C,0D M3MM A8 CD1901000013300 ------------ REMOCON UNIT (Deletion) 1 04,09,0A,0B
