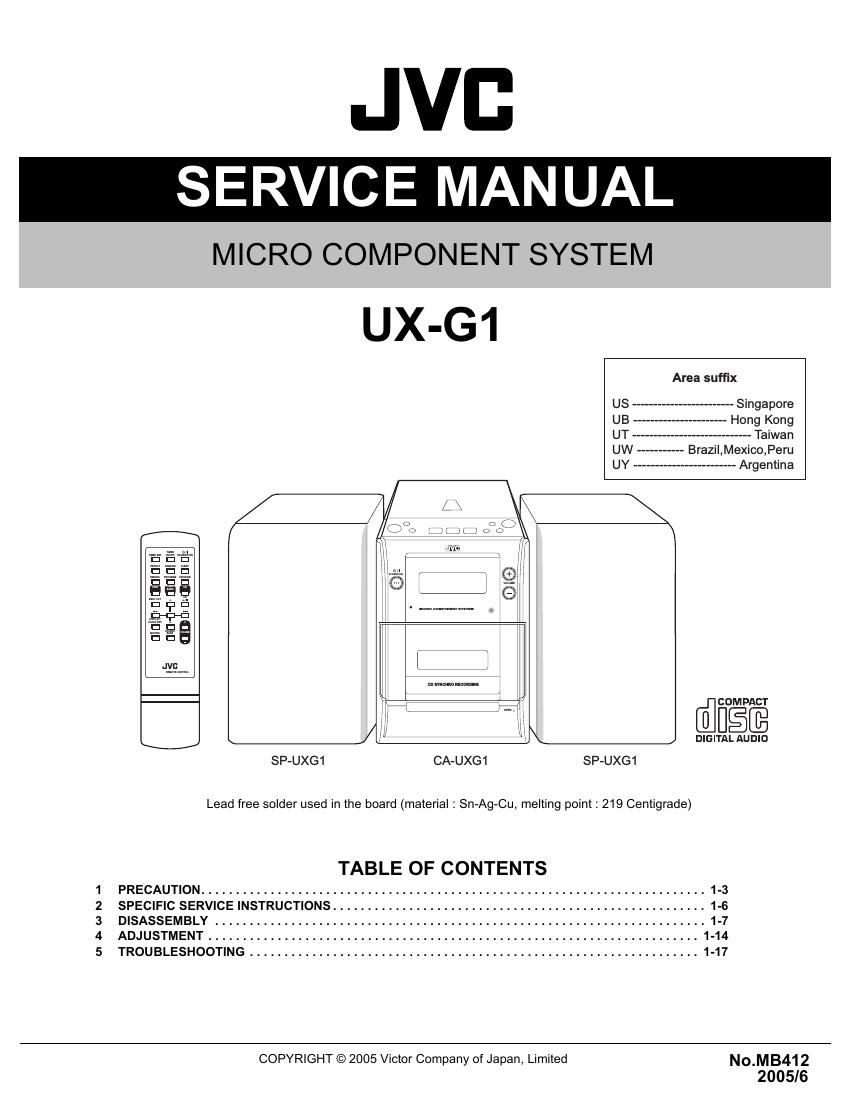

Jvc UXG 1 Service Manual

Page 1

1-2 (No.MB412) SPECIFICATION Amplifier Section-CA-UXG1 Speaker Section-SP-UXG1 Design and specifications are subject to change without notice. Output Power (IEC 268-3) 10 W (5 W + 5 W) at 4 -„¦ (10% THD) Speakers/Impedance 4 -„¦ - 16 -„¦ Tuner FM tuning range 87.50 MHz-108.00 MHz AM tuning range AM 9 kHz intervals: 531 kHz-1 710 kHz AM 10 kHz intervals: 530 kHz-1 710 kHz CD player Dynamic range 85 dB Signal-to-noise ratio 85 dB Wow and flutter Immeasurable Cassette deck Frequency response Normal (type I) 100 Hz-10 000 Hz Wow and flutter 0.35 % (WRMS) General Power requirement AC 110 V-127 V/220 V-240 V adjustable with the voltage selector 50 Hz/60 Hz Power consumption 22 W (at operation) 4.5 W (on standby) Dimensions (W/H/D) (approx.) 145 mm × 209 mm × 226 mm Mass (approx.) 3.0 kg Type Full range Bass-reflex type Speakers 10 cm cone × 1 Power handling capacity 5 W Impedance 4 -„¦ Frequency range 100 Hz to 15 kHz Dimensions (W/H/D) (approx.) 135 mm × 209 mm × 152 mm Mass (approx.) 1.3 kg each
