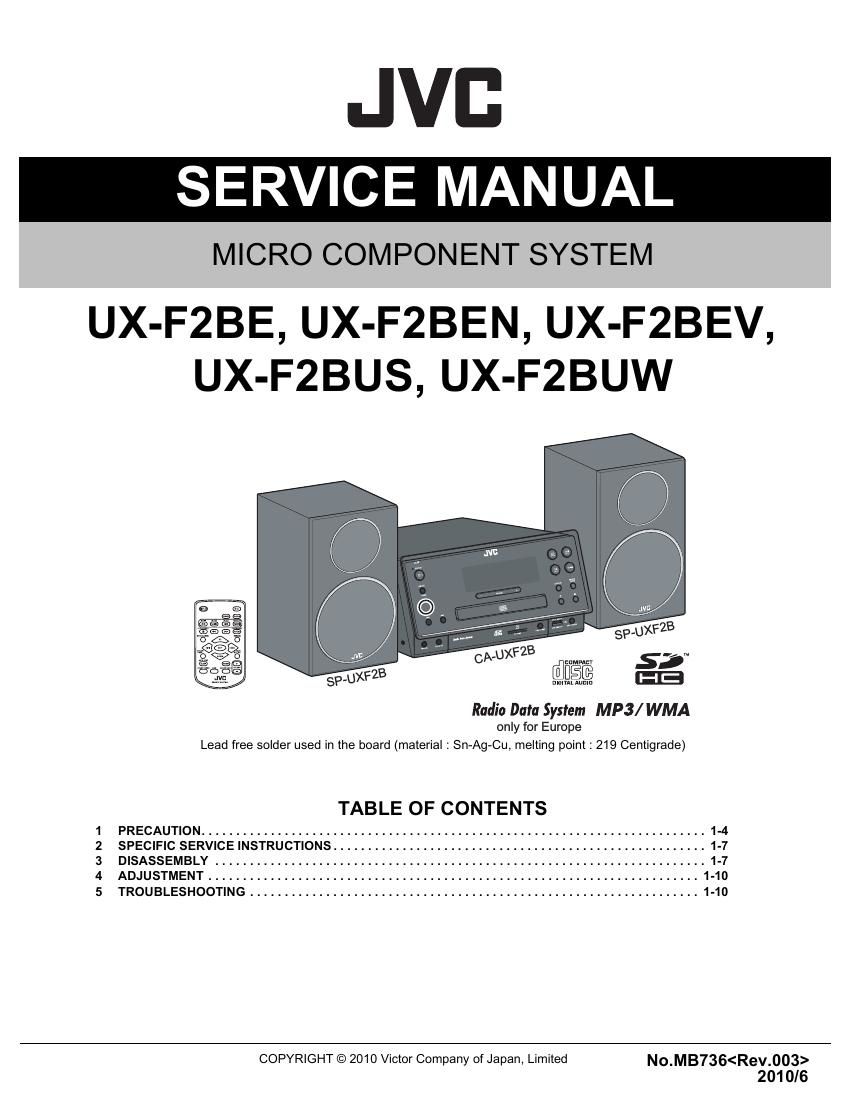

Jvc UXF 2 Service Manual

This is the 52 pages manual for Jvc UXF 2 Service Manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 52
left right
Jvc UXF 2 Service Manual

Extracted text from Jvc UXF 2 Service Manual (Ocr-read)

Page 1

1-2 (No.MB736) SPECIFICATION Design and specifications are subject to change without notice.For Europe(Main unit CA-UXF2B) General Power source AC 230 V , 50 Hz Power consumption (at operation) 40 W Power consumption (on standby) 1.00 W or less Dimensions (approx.) (W x H x D) (including projecting parts) 236 mm Γ— 123 mm Γ— 285 mm Mass (approx.) 2.0 kg Amplifier Output Power 100 W (50 W + 50 W) at 6 -„¦ (10% THD) Audio Input AUDIO IN: Stereo mini ( Ø 3.5 mm) Speaker impedance 6 -„¦ - 16 -„¦ Tuner FM frequency 87.50 MHz - 108.00 MHz USB USB specification Compatible with USB 2.0 Full Speed Compatible device Mass storage class Compatible system FAT16, FAT32 Output power DC 5 V 500 mA SD Compatible device SD, SDHC Compatible system FAT16, FAT32 Speaker SP-UXF2B Speaker type Bass-reflex type Tweeter 4 cm Woofer 12 cm Impedance 6 -„¦ Dimensions (approx.) (W x H x D) (including projecting parts) 141 mm Γ— 250 mm Γ— 181 mm Mass (approx.) 1.8 kg each

Page 2

(No.MB736)1-3 SPECIFICATION Design and specifications are subject to change without notice.For Asia(Main unit CA-UXF2B) General Power source AC 110 - 127 V/AC 220 - 240 V (adjustable with the voltage selector), 50 Hz/60 Hz Power consumption (at operation) 40 W Power consumption (on standby) 1.00 W or less Dimensions (approx.) (W x H x D) (including projecting parts) 236 mm Γ— 123 mm Γ— 285 mm Mass (approx.) 2.0 kg Amplifier Output Power 100 W (50 W + 50 W) at 6 -„¦ (10% THD) Audio Input AUDIO IN: Stereo mini ( Ø 3.5 mm) Speaker impedance 6 -„¦ - 16 -„¦ Tuner FM frequency 87.50 MHz - 108.00 MHz AM frequency 531 kHz - 1 710 kHz (at 9 kHz intervals) 530 kHz - 1 710 kHz (at 10 kHz intervals) USB USB specification Compatible with USB 2.0 Full Speed Compatible device Mass storage class Compatible system FAT16, FAT32 Output power DC 5 V 500 mA SD Compatible device SD, SDHC Compatible system FAT16, FAT32 Speaker SP-UXF2B Speaker type Bass-reflex type Tweeter 4 cm Woofer 12 cm Impedance 6 -„¦ Dimensions (approx.) (W x H x D) (including projecting parts) 141 mm Γ— 250 mm Γ— 181 mm Mass (approx.) 1.8 kg each
