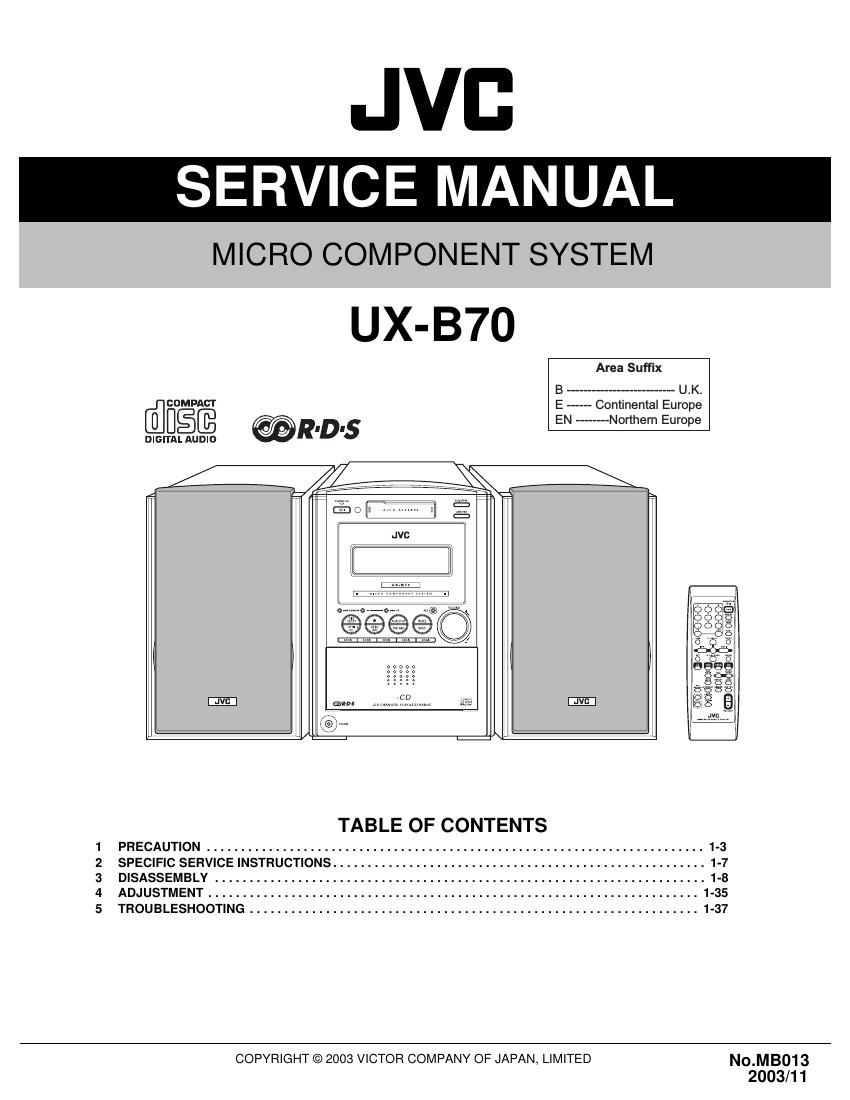

JVC
SERVICE MANUAL
MICRO COMPONENT SYSTEM
UX-B70
Area Suffix
............ U.K.
nental Europe
COMPACT
[filflgg @R.D.s EN- ------- Northern Europe
DIGITAL AUDIO
IEI
TABLE OF CONTENTS
1 PRECAUTION ........................................................................ 1-3
2 SPECIFIC SERVICE INSTRUCTIONS ...................................................... 1-7
3 DISASSEMBLY ....................................................................... 1-8
4 ADJUSTMENT ....................................................................... 1-35
5 TROUBLESHOOTING ................................................................. 1-37
COPYRIGHT © 2003 VICTOR COMPANY OF JAPAN, LIMITED No.MBO13
2003/11
SPECIFICATION
Amplifier Section-CA-UXB70
Output Power (IEC 268-3)
120W (60 W + 60 W) at 6 Q (10% THD)
Analog input sensitivity/Impedance (at 1 kHz)
AUX/DVD :400 mV/48 k9
Speakers/Impedance
69-169
Tuner FM tuning range 87.50 MHz-108.00 MHz
AM (MW) tuning range 522 kHz-1 629 kHz
CD player CD Capacity 5 CDs
Dynamic range 87 dB
Signal-to-noise ratio 90 dB
Wow and flutter Immeasurable
Cassette deck
Frequency responseINormal (type I)
60 HZ-14 000 HZ
Wow and flutter
0.15 % (WFlMS)
General Power requirement AC 230 V , 50 Hz
Power consumption 110 W (at operation)
17 W (on standby)
1.4 W (in power save mode)
Dimensions (W/H/D) (approx) 175 mm x 239.5 mm x 378 mm
Mass (approx) 8 kg
Speaker Section-$P-UXB70
Type 2-way bass-reflex type
Speakers Woofer 12 cm cone x 1
Tweeter 2 cm dome x 1
Power handling capacity 60 W
Impedance 6 (2
Frequency range 55 Hz to 20 kHz
Sound pressure level 85 dB/W'm
Dimensions (W/H/D) (approx) 145 mm x 239.5 mm x 202 mm
Mass (approx) 2.5 kg each
Design and specifications are subject to change without notice.
